ASTM D2843 Smoke Density Tester for Building Materials

ASTM D2843 Smoke Density Tester For Building Materials

1. Scope of application:

Touch-screen computer dual control smoke density tester for building materials was developed according to the technical conditions stipulated in GB/ t8627-2007 "test methods for smoke density of burning or decomposition of building materials", which is applicable to the measurement of static smoke production from burning of building materials, products and other materials.

2. Product features

1. Dual control mode, can control the operation on the touch screen, can also be controlled on the computer, the operation mode can be arbitrarily switched!

2. A device can operate several computers at the same time, several computers can be online at the same time, and LAN sharing can be realized!

3. The main and auxiliary burners can rotate automatically and locate accurately.

4. Independently developed the control program, which can meet all kinds of operations, records, real-time curves and results calculation in the test.

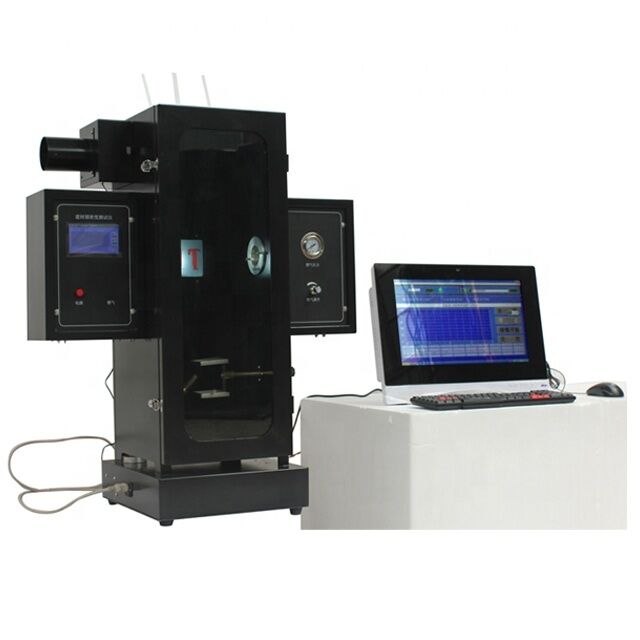

ASTM D2843 Smoke Density Tester For Building Materials

3. Relevant technical parameters

1. For the maximum smoke density (MSD) and smoke density grade (SDR) of the specimen: 0-100% continuously measurable and automatically calculated;

2. Calibration error with standard filter shall not be more than 3%;Each device is equipped with three standard filters, which are representative of the data of light source calibration

3. Working pressure of Bunsen burner (210 + 5) KPa;

4. The Bunsen burner applied flame to the sample for 4min;

5. Burning lamp: in the Bunsen burner and a length of 260 mm, the nozzle diameter of 0.13 mm, with smoke box into a 45 ° Angle;

6. Photoelectric system: the light source is a bulb with 15W power and 6V working voltage;

7. Exhaust air system: this machine is equipped with powerful exhaust fan, which can discharge exhaust gas out of the outdoor after the test;

8. Smoke density measurement range: 0~100%;

9. Smoke density measurement accuracy: ±3%;

10. Receiver: silicon photocell, light transmittance 0% is no light, light transmittance 100% is no shade completely through;

11. Working pressure of main burner: 276KPa (adjustable);

12. Automatic timing, automatic ignition, automatic smoke extraction;Optical flux can be divided into stages for linear correction test data

A more accurate;

13. Touch the screen:

A. Size: 5 "effective display size 11cm long and 6.28cm wide;

B. Resolution: 800*480

C. Communication interface RS232, 3.3v CMOS or TTL, serial port mode

D. Storage capacity :1G

E. Pure hardware FPGA drive display, "zero" startup time, power can run

F. M3+FPGA architecture is adopted. M3 is responsible for instruction analysis, and FPGA focuses on TFT display

G. The main controller adopts a low-energy processor and automatically enters the energy-saving mode

14. Gas source: 95% propane gas, or gas of the same purity (customer provided);

15. Length * width * height 740 *500* height 900 (mm)
