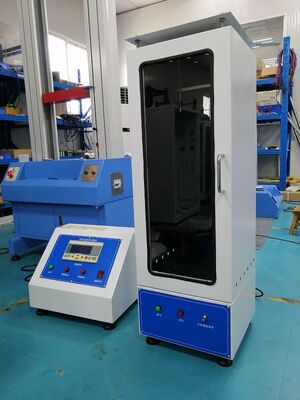

LR-K007 Textile Burning Tester/flammability Tester/ Fabric Flame Retardant Flammability Chamber

Large Image : LR-K007 Textile Burning Tester/flammability Tester/ Fabric Flame Retardant Flammability Chamber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	LR-K007

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

LR-K007 Textile Burning Tester/flammability Tester/ Fabric Flame Retardant Flammability Chamber

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Product Name:	Textile Burning Tester
Highlight:	textile burning tester with chamber , fabric flammability tester , flame retardant testing equipment

LR-K007 Textile burning tester/flammability tester/ Fabric Flame Retardant Flammability Chamber

The reference standard

GB/T 5455-1997

LR-K007 Textile burning tester/flammability tester/ Fabric Flame Retardant Flammability Chamber

Technical specifications

This test machine is suitable for the determination of flame retardant properties of various flame retardant textiles;According to the GB/T 545-1997 standard, the design is made to determine the tendency of the continuous combustion, flame retardant and carbonization of textiles. The instrument is easy to operate.

LR-K007 Textile burning tester/flammability tester/ Fabric Flame Retardant Flammability Chamber

The basic specifications

technical indicators	GB/t545-1997
combustion gas	adopts the industrial propane or butane gas (the product has a purity of more than 98 %).
time	0 ~ 99 minutes 99 seconds can be set
reignite time	0 ~ 99 minutes 99 seconds can be set
smouldering time	0 ~ 99 minutes 99 seconds can be set
combustion burner nozzle diameter	Ø 11 mm
combustion nozzle head and vertical Angle	25o
internal dimensions of combustion chamber (long x width x height)	329 x 329 x 767mm.
roof vent size	12.5 mm Ø, quantity: 16
boxes on both sides of the vent size	12.5 mm Ø, quantity: box flanked by six
sample clamps	two thick 2.0mm thick, 422mm long, 89mm wide, u-shaped stainless steel plate, sample size: 356 x 51mm
weight of weight	54.5 g, 113.4 g, 226.8 g, 340.2 g, 453.6 g.
product features	the test machine consists of control box, combustion box, burner, PLC, liquid crystal display, electromagnetic valve, high-pressure ignition, gas pipe, pressure regulating valve and signal control line.
power supply	AC 220V, 50Hz
