EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table

EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table
EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table

Large Image :  EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1

EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table

Description
Type: Testing Machine Accuracy Class: High Accuracy
Accuracy: ±0.5% Application: Auto Testing, Laboratory Testing, Lab Testing
Customized Support: OEM, ODM, OBM Power: ---
Protection Class: IP57 Voltage: 220 V
Warranty: 1 Year Maximum Test Load: 100kg (or Specified)
Frequency Range: 100-300rpm Amplitude Range: 1 Inch (25.4mm)
Simulated Speed: 25-40km /h Power Supply Voltage: AC220V 50HZ
Highlight:

EN 71 transport vibration tester

,

transportation vibration testing machine

,

simulated vibration test table

package transport vibration tester/ Transportation Vibration Testing Machine/simulated transportation vibration table

Use

The simulated transportation vibration table is also called "vibration table", which simulates the damage to the products caused by the bumps in the transportation process of cars, and is used to identify the ability of the products to endure environmental vibration. It is applicable to the research, development, quality control and manufacturing of various industries, such as electronics, electromechanical, optoelectronic, automobile, automobile and toy.Is your product quality reliability rare test machine.

The simulated transport vibration test bench is suitable for vibration test of toys, electronics, furniture, gifts, ceramics, communication, equipment, computers and automobile parts, etc.The machine is manufactured according to the similar equipment in Europe and America and vibrates in rotation, which conforms to the European and American transportation standards and the testing standards of EN71 ANSI, UL, ASTM, ISTA, etc.



package transport vibration tester/ Transportation Vibration Testing Machine/simulated transportation vibration table

Specification



 Maximum test load (kg)

100kg (or specified)

Test table size

1200 x 1000mm (or specified)

Frequency range

100-300rpm

Amplitude range

1 inch (25.4mm)

Vibration mode

rotary type

Simulated speed

25-40km /h

Control motor

dc motor (variable frequency motor can be replaced according to customer requirements)

Power supply voltage

AC220V 50HZ

Machine weight

about 150kg

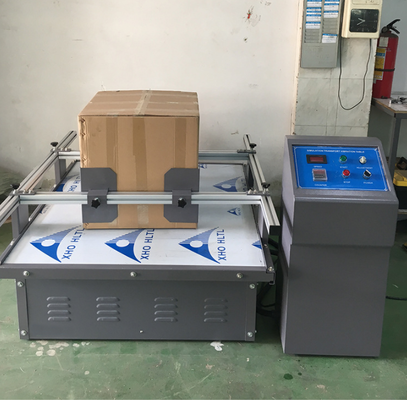

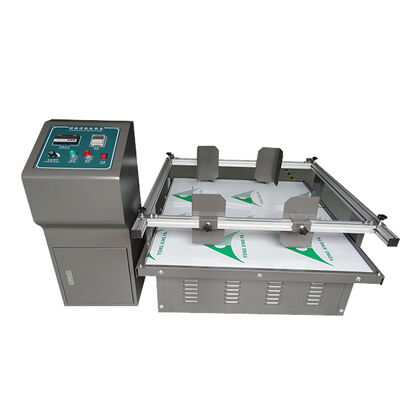

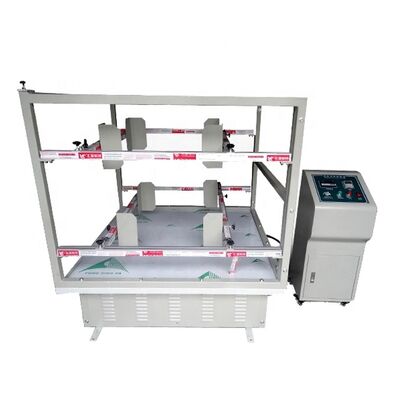

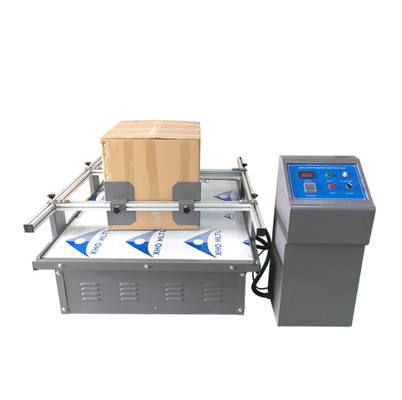

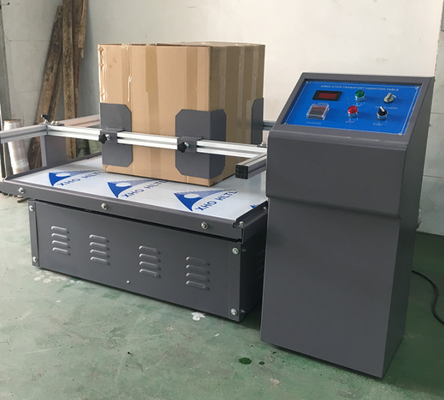

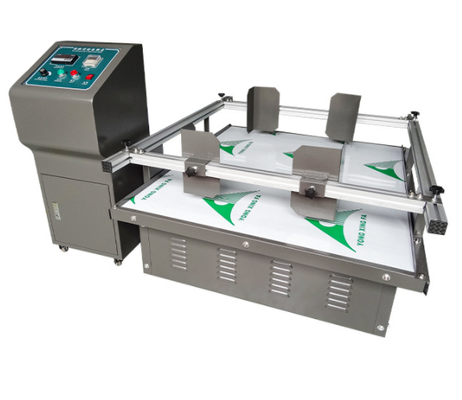

 EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table 0EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table 2

EN 71 Package Transport Vibration Tester/ Transportation Vibration Testing Machine/simulated Table 4
