Product Details:
|
| Customized Support: | OEM, ODM, OBM | Power: | Electronic |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Dsc Differential Scanning Calorimeter |
| Model: | LR-300L | Brand: | Lonroy |
| Highlight: | -170C to 600C DSC calorimeter,DSC differential scanning calorimeter price,high-temperature DSC calorimeter with warranty |
||

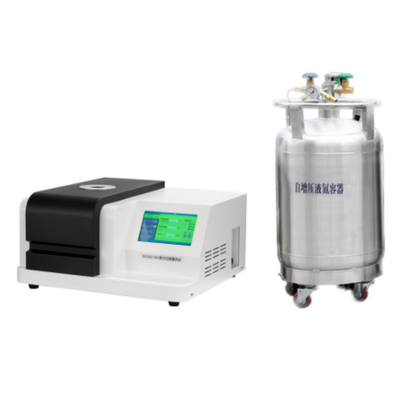

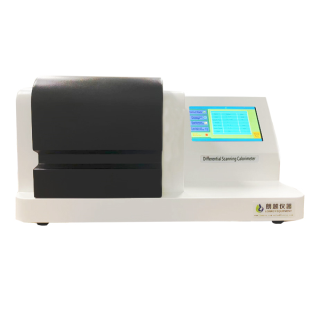

-170C~600C dsc differential scanning calorimeter price
Product Introduction:
The differential scanning calorimeter is touch-screen and can be used for glass transition temperature measurement, phase transition measurement, melting and enthalpy measurement
Value test, product stability, oxidation induction period test, specific heat test, etc. Mainly used in chemical, energy, metallurgy, mineral, polymer materials, metal materials and other industries
-170C~600C dsc differential scanning calorimeter price
Technical parameters:
1. Temperature range: -170~600℃, liquid nitrogen refrigeration
2 temperature resolution: 0.01℃
3 temperature fluctuation: ±0.01℃
4. Temperature repeatability: ±0.1℃
5. Heating rate: 0.1 ~ 80℃/min
6. Constant temperature time: 0~400
7. Temperature control mode: heating, cooling, constant temperature
8.DSC range: 0 ~ ±600mW
9.DSC resolution: 0.001mW
10.DSC sensitivity: 0.001mW
11. Power supply: AC220V/50Hz or customized
12. Cooling equipment: liquid nitrogen cooling
13. Atmosphere control gas: nitrogen, oxygen (automatic instrument switch)
14. Gas flow: 0-300ml /min
15 gas pressure: 0.2mpa
16. Display mode: 24bit color, 7 inch LCD touch screen display
17. Data interface: standard USB interface
18. Parameter standard: equipped with standard material (indium, tin), users can adjust the temperature
19. Upper computer operation software, coordinate range automatically switch, no manual adjustment; Software analysis results can be dragged at will display position
20. The instrument has multiple groups of thermocouples, one group to test the sample temperature, one group to test the internal environment temperature of the instrument, and one group to test the furnace temperature
Technical features:
1. Industrial grade 7 inch touch screen, display rich information.
2. New furnace body structure, can be matched with a variety of refrigeration devices.
3.USB communication interface, strong commonality, reliable communication without interruption, support self-recovery connection function.
4. Automatic switching of two air flow, fast switching speed, short stability time. At the same time, a protective gas input is added.
5. Software is simple and easy to operate.
-170C~600C dsc differential scanning calorimeter price
Configuration list
|
|
name of the accessories |
quantity |
note |
|
1 |
Differential instrument |
1 |
|
|
2 |
The software U disk |
1 only |
|
|
3 |
Communication data line |
2 the root |
USB data communication |
|
4 |
The power cord |
1 the root |
|
|
5 |
Aluminum crucible |
200 only |
|
|
6 |
Porcelain crucible |
100 only |
Used for testing corrosive samples |
|
7 |
Furnace cover |
3 only |
Multilayer insulation |
|
8 |
Raw tape |
Volume 1 |
|
|
9 |
Standard material |
One copy each of the |
Indium, tin, |
|
10 |
10 A fuse |
5 only |
|
|
11 |
Sample spoon/sample press/tweezers |
Each one |
|
|
12 |
Dust cleaning ball |
1 |
|
|
13 |
Air pipe (including joint) |
2 the root |
Φ8mm |
|
14 |
Instruction book, warranty card, certificate of quality |
One copy each of the |
|
|
15 |
Fully automatic liquid nitrogen tank |
1 set of |
|
![]()
![]()
![]()
![]()
