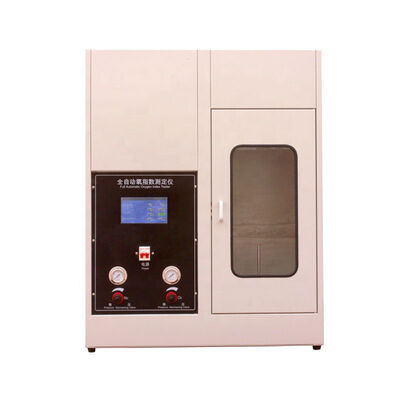

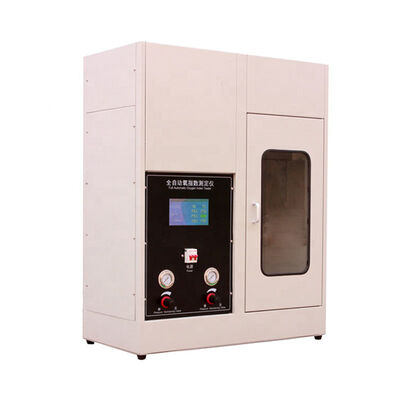

Full-Automatic Oxygen Index Tester Touch Screen Control High-precision Oxygen Index Analyzer

Full-automatic high-precision oxygen index tester touch screen control

Product advantages:

1. Full-color touch screen control, as long as the oxygen concentration value is set on the touch screen, the program will automatically adjust to the oxygen concentration balance and issue the sound of beep, eliminating the trouble of manually adjusting the oxygen concentration;One key calibration oxygen concentration, data storage

2. The stepping proportional valve is adopted to greatly improve the control accuracy of flow rate. The closed-loop control is adopted to automatically adjust the oxygen concentration drift program back to the target value during the test.

3. The equipment has its own fume hood, which can automatically exhaust smoke;

The main technical parameters of jf-6 automatic high precision oxygen index tester are controlled by touch screen (with fume hood)

1.Imported oxygen sensor, digital display oxygen concentration without calculation, higher accuracy and more accurate, range 0-100%

2.Display accuracy: ±0.01

3.Touch screen setting program automatically adjusts oxygen concentration

4.One key calibration accuracy

5.One bond ratio

Full-automatic high-precision oxygen index tester touch screen control

6.Stable oxygen concentration automatically prompts alarm sound

7.With timing function

8.Experimental data can be stored

9.Historical data can be queried

10.Clear historical data

11.Optional whether to burn 50mm

12.Air source fault prompt

13.Oxygen sensor fault indication

14.Oxygen nitrogen wrong connection prompt

15.Oxygen sensor aging tips

16.Standard oxygen concentration input

17.Diameter of combustion cylinder can be set (two common specifications are optional)

18.Flow regulation range: 0-20l /min (0-1200l /h)

19.Quartz glass tube: two specifications either (diameter≥ 75 mm or inner diameter ≥ 85mm)

20.Gas velocity in combustion cylinder: 40mm ± 2mm/s

21.Overall dimensions: 80cm*40*102cm

22.Automatic smoke exhaust pipe outer diameter: 7.6cm

23.Pressure gauge accuracy 2.5, resolution: 0.01MPa

24.Test environment: the environment temperature: room temperature ~ 40 ℃;, relative humidity: no more than 70%;

25.Input pressure: 0.25-0.3mpa

26.Working pressure: nitrogen 0.15-0.20mpa oxygen 0.15-0.20mpa

27.Propane (butane) ignition system, the ignition nozzle is made of a metal, the end has Φ 2±1 mm inner diameter nozzle, can be bent freely.Can be inserted into the combustion cylinder to ignite the sample, the flame length: 16 ± 4mm, the size of 5mm-60mm can be adjusted freely,

Full-automatic high-precision oxygen index tester touch screen control

28.Gas: nitrogen and oxygen for industrial use, purity of > 99%;(the purity of industrial oxygen in user-provided/normal gas stations is generally between 99.2% and 99.3%).

29.Power requirements: AC220 (±10%) V, 50HZ

30.Maximum power: 150W

31.Self-supporting material sample holder: it can be fixed on the axis of combustion cylinder and can hold the sample vertically

32.Non-self-supporting material sample clip: can fix two vertical edges of the sample on the frame at the same time (optional/applicable to soft non-self-supporting material such as textile)

33. It can be upgraded to the Internet of things function: it can control and read data through the router, save data to the computer and print reports
