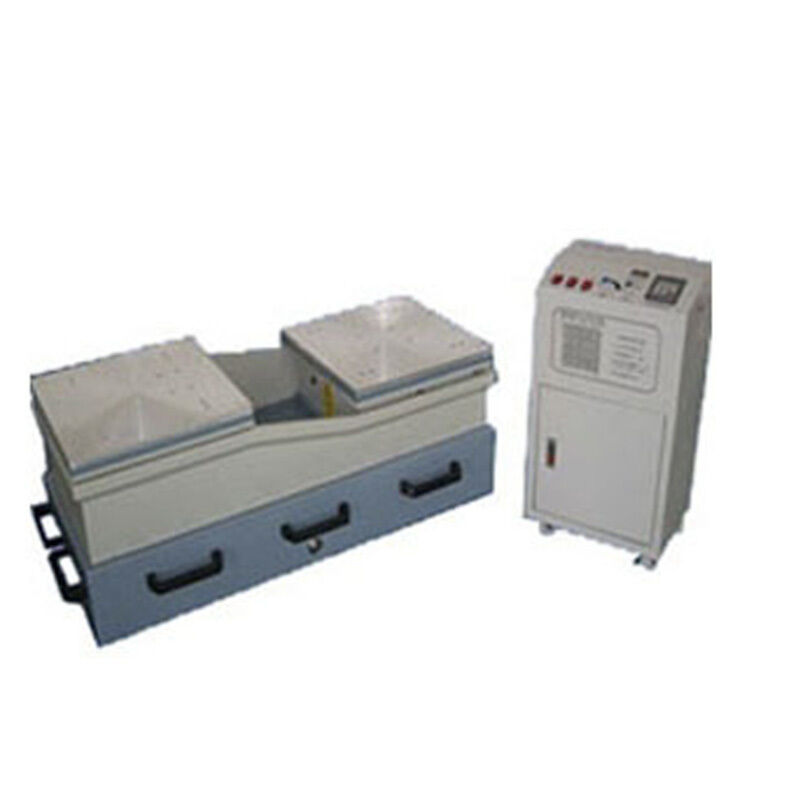

Horizontal and Vertical Vibration Tester/ Vibration Testing Table/ Low Frequency Vibration Tester
Description
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
±0.5%
Application:
Auto Testing, Laboratory Testing, Lab Testing
Customized Support:
OEM, ODM, OBM
Power:
---
Protection Class:
Ip67
Voltage:
220 V
Warranty:
1 Year
Highlight:
horizontal vertical vibration tester
,
low frequency vibration testing table
,
vibration test machine with warranty
Introduction:
Electromagnetic type vibration tester is used widly in national defense,aerospace, communication,electron,car,household appliances industry.This tester is used to find early stage stoppage, simulate actual working condition and structure strength testing.
Character:
1. Hommization operation and controlling,adopt professional testing software,make the machine more stable and reliable.
2. The machine material is compound type industrial materials,precision finishing.
3. Two testing models,sweep frequency and fixed-frequency ,suitable for different testing requirements of different industries.
4. High anti-jamming capacity.
5. Safe and reliable protecting function.
Specification:
Power: AC 220V/50Hz ±2%
Working environment: 0~+45℃
Max load(kg): 40
Frequency modulation(Hz): 3~200
Sweep frequency range(Hz): 3~200
Displacement amplitude with no load(mm): 0~5
Vibration methods: Vertical,horizontal
Timer setting(s): 1~350000
Testing table sizeL.W.H(mm): 450×450×43
Platform sizeL.W.H(mm): 1300×570×450
Control cabinet sizeL.W.H(mm): 380×255×170
Rate of power(KVA): 2.8
Setting methods: Chinese English menu,computer controlling,professional testing software,can observe testing process and data output.
Testing curve recording funciton:record and deal with testing data,can be stored or printed.
Showing funciton: Dynamic testing curve,multistage and related data.
