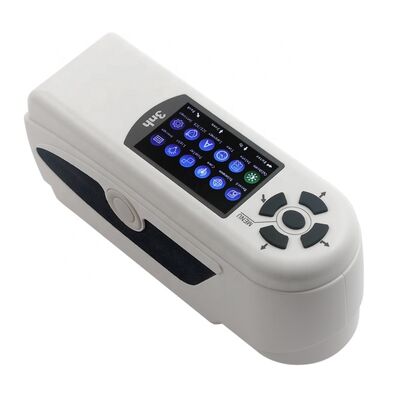

NH300 Portable Colorimeter 8mm Aperture LED Blue Light Excitation Color Analysis Meter Ink Proofer

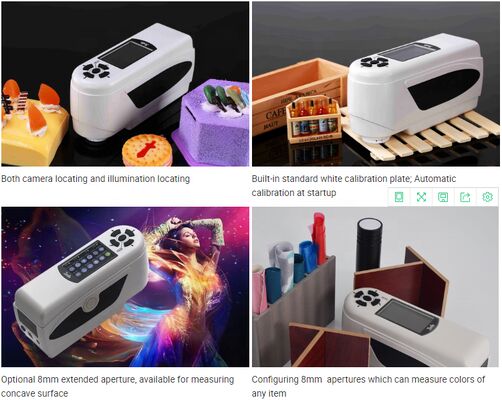

NH300 colorimeter also features its locating method, illumination locating, which can solve the problem of measuring small spots very well.

Repetitive error is less than 0.07ΔE*ab, inter-instrument error is less than 0.4ΔE*ab, which make its stability and reliability of measurement very superior.

NH300 colorimeter is standardly configured with 1 measuring aperture, 8mm, 1 light source mode, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NH300 can at a certain degree fulfill different kinds of requirements for color measurements in different industries.

NH300 colorimeter also goes with a powerful PC software CQCS3 which includes more extended functions that can enormously facilitate your work.

With the configuration of universal test component and powder test box, measurements of liquid, paste, powder and particle can be implemented without hesitation.



3nh NH300 Portable Colorimeter,color analysis meter
Model Number	NH300 Colorimeter
Illuminating/Viewing Geometry	8°/D (8° illumination, diffused viewing angle)
Measuring Aperture	Φ8mm
Integrating Sphere	Non
Locating Method	Illumination Locating
Repetitive Error	Standard deviation ΔE*ab≤0.07 (Measurement Conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
Inter-Instruments Error	ΔE*ab≤0.4
Wavelength Range	Non
Wavelength Pitch	Non
Reflectance Range	Non
Color Space	CIE L*a*b*C*H*, CIE L*a*b, CIE XYZ
Color Difference Formula	ΔE*ab, ΔL*a*b, ΔE*C*H
Display Data	Colorimetric Value, PASS/FAIL Result
Other Chromaticity Data	Non
Observer Angle	10°
Light Sources Type	D65
Light Source Device	LED Blue Light Excitation
Light Source Life	5 years, More than 1.6 million measurements
Sensor	Silicon Photoelectric Diode Array
Measuring Time	1.5s
Data Storage	100 Standards, 20000 Samples
Data Port	USB
Display Size	TFT 2.8"
Touch-Screen	Non
Operating Temperature	0~40℃ (32℉~104℉)
Storage Temperature	-20℃~50℃ (-4℉~122℉)
Humidity	0~85%, No condensation
PC Software	CQCS3
Weight	500g
Dimension	205*70*100mm
Battery	Large Capacity Li-ion Battery
Standard Accessory	Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White Calibration Plate, Φ8mm Measuring Aperture
Optional Accessory	Universal Test Components, Micro-Printer, Powder Test Box
Certificates	CE & RoHS & TUV & ISO9001
