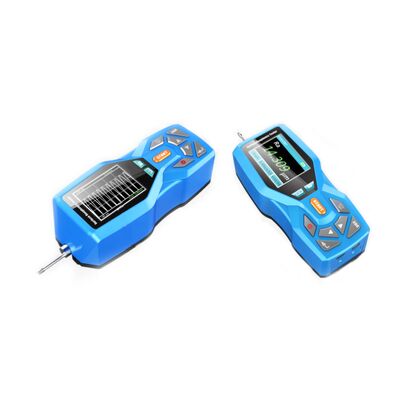

1.Main features
Mechatronics design, small size, light weight, easy to use;
DSP chip for control and data processing, fast speed, low power consumption;
Multiple parameter Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz (JIS), Rs, Rsk, Rsm, Rku, Rmr; Ry(JIS); Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2.
High-end machines increase TP,Rm1,Rm2,Rm3,Rm4 and other parameters;
Increased to 320μm measuring range for high-end machines.
Automatic range switching and display.
Real-time display of sampled waveform, convenient query of measurement results and historical data and waveform
TYPE C and Mini USB dual USB interface design, applied to communication and automatic control (can communicate with robots, PLC and other control systems;

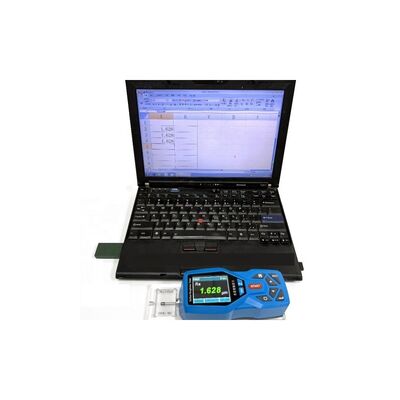

With Bluetooth, you can connect mobile APP, Bluetooth printer; Equipped with computer side Bluetooth module, can directly transmit data to computer EXCEL table;
320X240 dot matrix color display, digital/graphic display; IPS highlight no viewing Angle
Can switch the display direction, easy to operate
Alarm limit of measurement results can be set

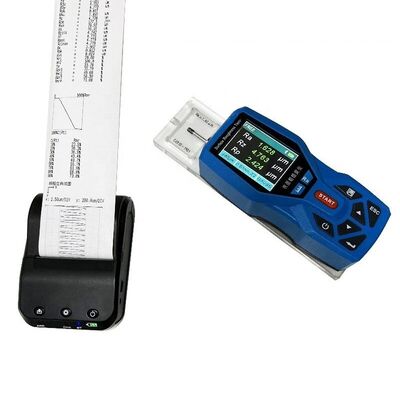

Single or batch print history and waveform
Can choose ISO, DIN, ANSI, JIS and other national standards
Display information is rich, intuitive, can display all parameters and graphics
Built-in lithium-ion rechargeable battery and charging control circuit, high capacity, no memory effect
There is a remaining power indicator icon, prompting the user to charge in time
Can display the charging process indication, the operator can know the charging degree at any time
Continuous working time is greater than 20 hours
Large capacity data storage, can store 100 groups of original data and waveform
Real-time clock setting and display, convenient data recording and storage
With automatic sleep, automatic shutdown and other power saving functions
Reliable anti-motor dead circuit and software design
Display measurement information, menu prompt information, error information and switch on and off and other prompt information;
Ergonomic shell design, strong, compact, portable, high reliability.
Chinese/English language selection;
Can connect computer and printer;
Can print all parameters or print any parameters set by the user.
Calibration sample adopts optical glass matrix, high precision, not easy to scratch, long service life.
Accessories such as curved surface sensor, pole hole sensor, deep slot sensor, measuring platform, sensor jacket, length rod, switching rod (switching mechanism) can be selected.
Measurement principle
When measuring the surface roughness of the workpiece, the instrument first puts the sensor on the surface of the workpiece to be measured, and then starts the instrument for measurement. The precision driving mechanism inside the instrument drives the sensor along the measured surface to do constant speed straight slide, and the sensor feels the roughness of the measured surface through the built-in sharp stylus. At this time, the roughness of the workpiece's measured surface will cause the stylus to produce displacement. The displacement causes the inductance of the sensor inductor to change, thus generating an analog signal proportional to the measured surface roughness in the output end of the phase-sensitive detector. The signal enters the data acquisition system after amplification and level conversion. The DSP chip performs digital filtering and parameter calculation on the collected data, and the measurement results are given on the display or output on the printer. It can also communicate with a PC.
