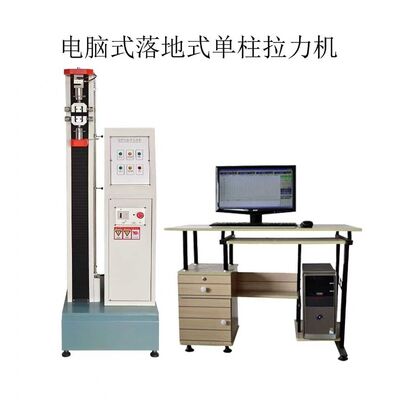

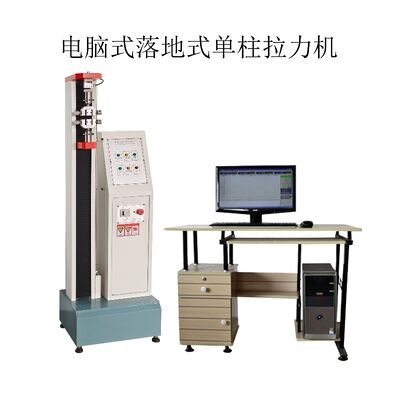

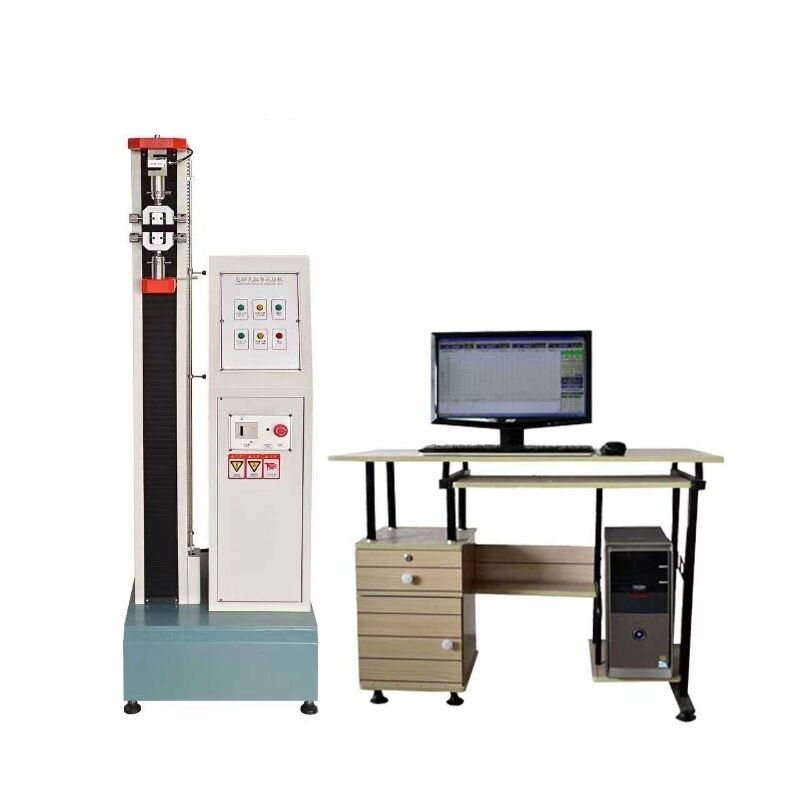

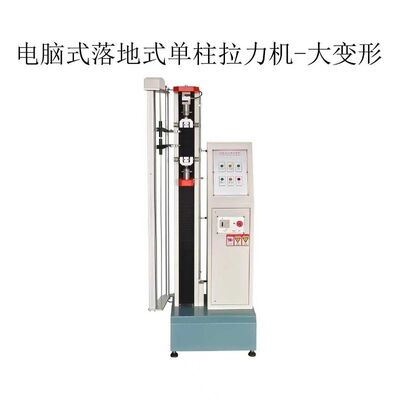

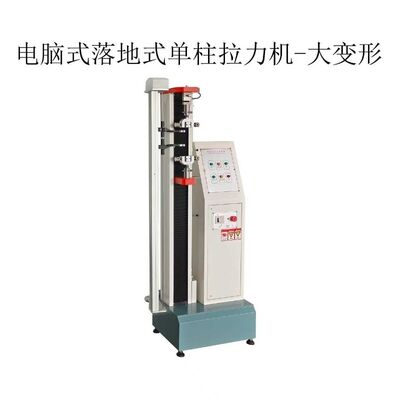

Rubber Elongation Tester With Extensometer Rubber Extensometer Tensile test Machine

Large Image : Rubber Elongation Tester With Extensometer Rubber Extensometer Tensile test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Rubber Elongation Tester With Extensometer Rubber Extensometer Tensile test Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	---	Application:	Auto Testing, Lab Testing, Laboratory Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	IP57	Voltage:	220 V
Warranty:	1 Year	Power:	AC 220V 50Hz
Machine Weight:	About 95kg	Capacity:	200kg
Weight Breakdown:	1/25,000
Highlight:	Rubber elongation tester with extensometer , Universal tensile test machine for rubber , Rubber extensometer tensile testing equipment

Rubber Elongation Tester With Extensometer,Rubber Extensometer

USES:

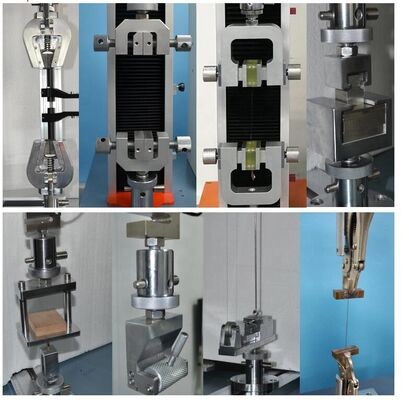

Suitable for all kinds of hardware, metal and zipper. Rubber, shoes, leather, garments, textiles, insulators, wires, cables, terminals, toys, etc.It can test the physical properties of various materials and finished products and semi-finished products, and select various kinds of clamping tools for the test of tensile, compressive, holding, pressure, bending, tearing, stripping and shear.It is an ideal testing and research equipment for factories, technical supervision departments, commodity inspection institutions, scientific research institutes and colleges and universities.

Rubber Elongation Tester With Extensometer,Rubber Extensometer

Technical participation:

1. Capacity	200kg
2. Weight breakdown	1/25,000;
3. Accuracy of measuring force	better than 0.5%;
4. Effective measuring range	0.5 ~ 100% F.S;
5. Sensor sensitivity	1-- 20mV/V,
6. Accuracy of displacement display value	over plus or minus 0.5%;
7. Maximum stroke	900mm, with fixtures
8. Test speed	5 ~ 300mm/min
9. Unit switching	including KGF, LBF, N, KN, KPa and Mpa, users can also customize the required units.
10. Machine weight	about 95kg
11. Power	AC220V, 50Hz
12. A set of forceps
