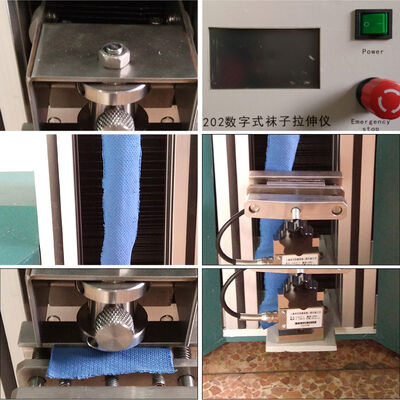

FZ/T 70006 73001 73011 Digital Sock Stretchers Digital Socks Tensioner Sock Tensile Tester

Large Image : FZ/T 70006 73001 73011 Digital Sock Stretchers Digital Socks Tensioner Sock Tensile Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

FZ/T 70006 73001 73011 Digital Sock Stretchers Digital Socks Tensioner Sock Tensile Tester

Description

Type:	Testing Machine	Accuracy:	---
Application:	Auto Testing, Laboratory Testing, Lab Testing	Customized Support:	OEM, ODM, OBM
Power:	---	Protection Class:	Ip56
Voltage:	220 V	Warranty:	1 Year
Logo/graphic Design:	Hot Stamping	Structural Dimensions:	1000mm * 700mm * 3500mm
Weight:	120kg	Test Stroke:	100 - 3000mm; (Can Be Customized To 3400mm)
Stretching Speed:	Adjustable From 20mm/s To 250mm/s Without Any Limit
Highlight:	digital sock stretcher tester , sock tensioner tensile machine , FZ/T sock tensile tester

FZ/T 70006 73001 73011 Digital Sock Stretchers Digital Socks Tensioner Sock Tensile Tester

Product Description

1. Product Features

The control panel is approximately 100 cm high, which is in line with ergonomic principles and practical usage requirements, and is easy to operate.
The vertical stretching structure is convenient for sample installation and testing.
The longitudinal vertical structure occupies little horizontal space.
The Siemens PLC control system is precise in control, stable and reliable.

2. Meet with the standards

FZ/T 70006,FZ/T 73001,FZ/T 73011,FZ/T 73013,FZ/T 73029,FZ/T 73030

3. Scope of application

The digital sock extender is mainly used for measuring the direct and lateral extension values of pantyhose, stockings, abdominal belts, swimsuits, and knitted pants. It is equipped with an automatic speed stretching test mode and a constant tension stretching test mode, which can meet various testing requirements such as constant elongation force, constant elongation rate, and constant tension and time-based elongation rate. The system also includes test options such as constant tension elongation, constant elongation force, elastic recovery, and plastic deformation, making it convenient for users to choose the testing method themselves.

FZ/T 70006 73001 73011 Digital Sock Stretchers Digital Socks Tensioner Sock Tensile Tester

Technical Specification

Stretching speed	Adjustable from 20mm/s to 250mm/s without any limit
Test stroke	100 - 3000mm; (Can be customized to 3400mm)
Rated pulling force	Adjustable within the range of 0.1N - 200N. The test pulling force can be set according to the actual testing requirements
Controller	Side-mounted LCD controller. Pre-set the stretching speed, rated pulling force, stretching holding time and other test condition parameters. Real-time display of test results
Accessories	Equipped with pre-added tension weights and manual fixtures
Test output	After the test is completed, the elongation rate of the sample can be output
Structural dimensions	1000mm × 700mm × 3500mm
Weight	120kg
