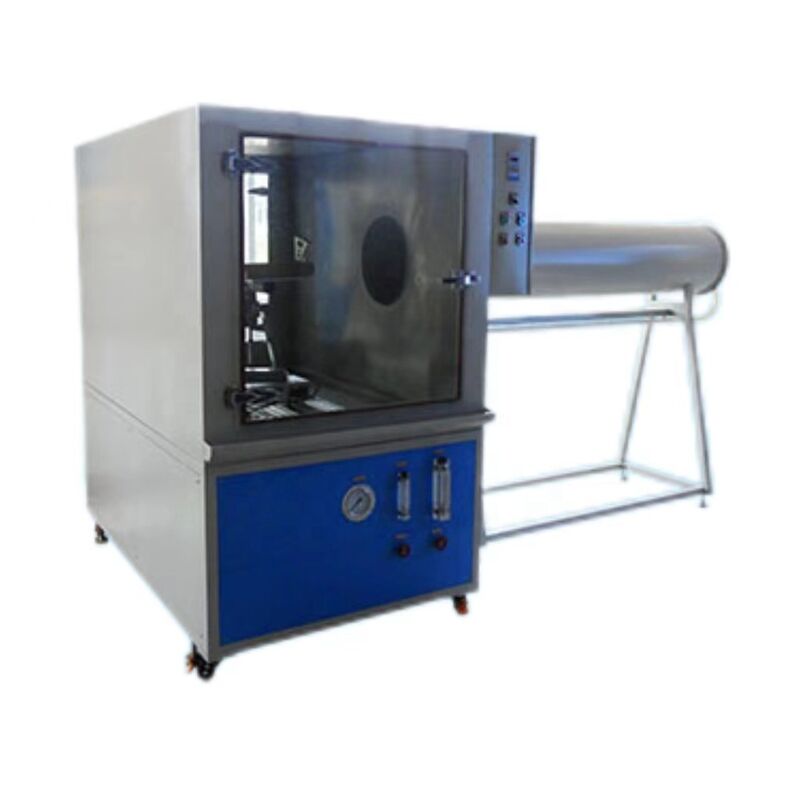

IPX5 IPX6 Water Spray test Equipment IEC 60529

IPX5 IPX6 Water spray test equipment IEC60529

1. Equipment use
The waterproof test chamber is suitable for testing whether the shell and seal of electrical products can guarantee the good performance of equipment and components in the rain environment. This product adopts scientific design, so that the equipment can simulate the realistic water spraying test environment. Into the comprehensive control system and the use of frequency conversion technology, so that the amount of water can be automatically adjusted. Standard basis :IEC60529-2001, GB4208-2008, GB2423.23, GB5170.38, GB10485-93, IPX5.IPX6 equivalent JIS, DIN, IZ1 and other standards

IPX56 water spray test chamber structure principle
The basic design principle of the equipment: a water tank at the bottom is pumped through the stainless steel water inside the stone side control box and pressurized, and then sent to the nozzle of the side spray pipe device, the nozzle spray water to the sample on the turntable, and then scattered to the inside of the water tank, so as to form a water circulation system. Pump outlet design flowmeter, pressure gauge, solenoid valve and other control components. The inner box is equipped with a waterproof turntable and the speed is controlled on the panel.

Materials:
1, nozzle: stainless steel pipe
2, water tank :304 stainless steel
3, sealing plate material: the lower layer of rigid glass 6MM thick, the upper glass PC plastic transparent plate (light weight, easy to install)
4, frame material :304 stainless steel square, sand surface (professional wire drawing)
5. Electrical control accessories selected from France Snide, Omron, Taiwan Shiyan, Japan Fuji and other international well-known brands
