Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine,

Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine,
Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine, Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine, Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine, Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine,

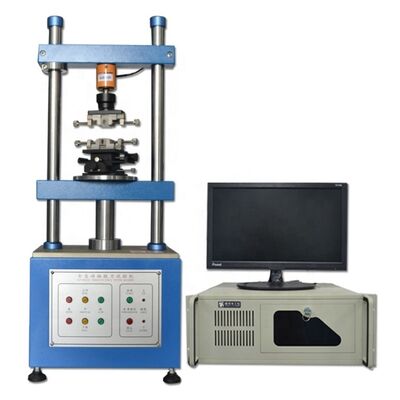

Large Image :  Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine,

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine,

Description
Type: Pull Out Plug Tester Accuracy Class: High Accuracy
Accuracy: ±1% Application: Pull Out Plug Tester
Customized Support: OEM, ODM, OBM Power: 50
Protection Class: IP55 Voltage: 220 V
Warranty: 1year
Highlight:

USB socket pull force tester

,

automatic plug test machine

,

connector durability testing equipment

Connector Pull Out Test Equipment, Automatic plug and pull force testing machine, USB Socket Pull Out Plug Test Equipment
Summary:
Automotive Connector Insertion Force Test Machine used in various kinds of connectors for plug in and plug out force test, equip with automatic device for adjustment centre site and special grips so that it can get the precision insert force; Adopt Chinese Windows version software frames setting which is easy for operation and can storage for test data's (test condition, insert stroke curve graph, lifetime curve, inspection report etc.) Match with motional impedance test system, can do insertion test as well as motional impedance test and drawing together. (Load-stroke-impedance curve).



Test Items:

Test hole plug connector.
Test row of the connector plug
Life test plug connector.
Single-pin connector and plastic Retention Test
Connector test
Impedance measurements can be performed simultaneously (optional)
Various compression, tensile breaking strength test



Connector Pull Out Test Equipment, Automatic plug and pull force testing machine, USB Socket Pull Out Plug Test Equipment
Features:

1.All the testing informations are setting by the computer and it can automatically store: testing condition,test result,(load-displacement),curve,life decay curve and automatically generate reports.

2. High precise:Load resolution:0.01gf,Displacement:0.001mm

3. Adopting high precision explosion Load Cell,Repeated errors:0.01%

4. High stability: adopt Japan Panasonic servo motor drive and no space, no ground ball screw drive, can eliminate noise and resonance.

5.Can enter the upper and lower limit conditions and  automatically rebel the test results Passed or Fail, the maximum, minimum, average and standard deviation, etc.



Connector Pull Out Test Equipment, Automatic plug and pull force testing machine, USB Socket Pull Out Plug Test Equipment

Specifications:

Load capacity

2kg, 5kg, 20kg, 50kg(optional)

Unit switch over

gf, kgf, lbf, N

Resolution

0.001kg

Load precision

±0.2%

Maximum travel

150mm

Test speed

0~200mm/min

Speed precision

0.50%

X,Y axis movement range

0~75mm

Displacement resolution

0.01mm

Dynamical System

Panasonic servo motor

Size

360*260*940mm

Weight

70kg

Power

220V,50HZ / Customized

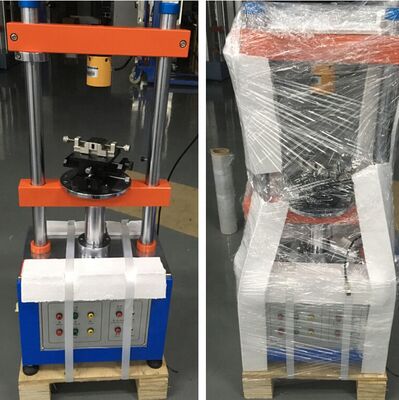

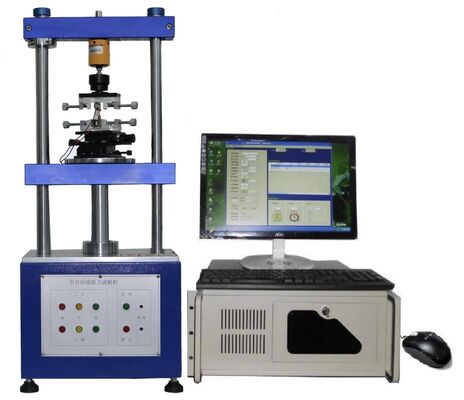

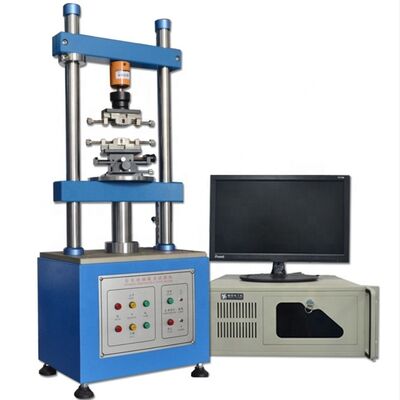

Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine, 0Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine, 2Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine, 4Connector USB Socket Pull Out Plug Test Equipment, Automatic Plug and Pull Force Testing Machine, 6
