ASTM D1149 ISO 1431 Ozone Aging Test Chamber Laboratory Ozone Weathering Testing Chamber Factory Price

Large Image : ASTM D1149 ISO 1431 Ozone Aging Test Chamber Laboratory Ozone Weathering Testing Chamber Factory Price

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D1149 ISO 1431 Ozone Aging Test Chamber Laboratory Ozone Weathering Testing Chamber Factory Price

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	---	Application:	Laboratory Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	IP57	Voltage:	220 V
Warranty:	1 Year	Outer Box Size (approx.):	W1150mm* Height 1750mm * Depth 1200mm
Ozone Concentration:	10-1000pphm	Volume:	150L
Analytical Accuracy:	0.1℃
Highlight:	ASTM D1149 ozone test chamber , ISO 1431 weathering testing chamber , laboratory ozone aging chamber

ASTM D1149 ISO 1431 Ozone Aging Test Chamber Laboratory Ozone Weathering Testing Chamber Factory Price

Product introduction

The content of ozone in the atmosphere is very small, but the main factor of rubber cracking, this product simulates and strengthens the ozone conditions in the atmosphere, studies the action law of ozone on rubber, and quickly identifies and evaluates the method of anti-ozone aging performance of rubber and anti-ozone agent protection effectiveness. Reference standards: JIS K 6259 ASTM1149 ISO1431 GB/T13642 GB/T7762-2003 vulcanized rubber or thermoplastic rubber ozone cracking static tensile test, GB/T2951.21-2008 general test method for cable insulation and sheathing materials, GB/T 11206-2009 rubber aging test surface cracking method, and other relevant standards specified test methods.

Principle and method

The test method can be divided into "static" and "dynamic" according to the test method and standard. Static means that the sample is put into the test box after being stretched, and the dynamic means that the sample is placed on the fixture of the test box, and the test is done while stretching. The floating tension is about 5%-45% of the tested sample itself.

ASTM D1149 ISO 1431 Ozone Aging Test Chamber Laboratory Ozone Weathering Testing Chamber Factory Price

Product advantages:

l This series of products won the Guangdong high-tech product certificate (programmable constant temperature and humidity test chamber)

l This series of products won the utility model patent certificate (a constant temperature and humidity test chamber)

l The compressor, controller, electronic components and other core components of this product are all made of internationally renowned brands

This product series contains the quality inspection certificate and qualification label of the third-party authority.

Product specifications

1. Equipment name	Rubber tube special cracking aging test chamber
2. Device model	LR-B013
3. Volume	150L
4. Inner box size	W500mm×H600mm×D500mm
5. Outer box size (approx.)	W1150mm* Height 1750mm * Depth 1200mm (subject to actual delivery size)
6. Ozone concentration	10-1000pphm

ASTM D1149 ISO 1431 Ozone Aging Test Chamber Laboratory Ozone Weathering Testing Chamber Factory Price

performance indicators

1. Temperature range	0℃ ~ +80℃(adjustable)
2. Analytical accuracy	0.1℃
3. Temperature fluctuation	≤±0.5℃
4. Temperature uniformity	±2℃
5. Temperature deviation	≤±2.0℃
6. Ozone concentration accuracy	10~1000pphm ±10%
7. Lifting frequency of sample frame	2R/min(can be customized according to requirements)
8. Airflow speed	12~16mm/s
9. Test gas flow	20~70L/min

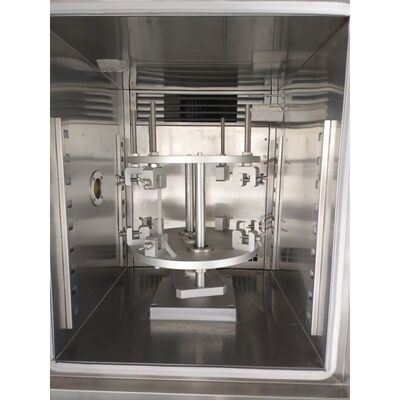

10. Sample frame speed	360 degrees rotating sample frame (speed 1~3 revolutions per minute, can be customized according to requirements)
