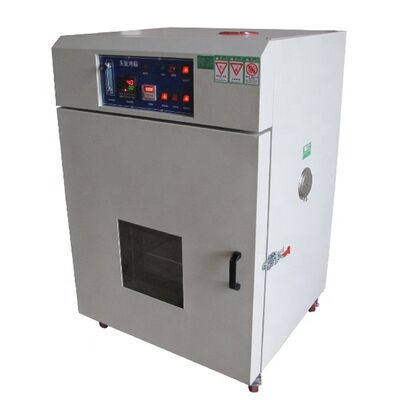

300 Degree Customized Laboratory Oven Hot Air Oven Industrial High Temperature Oven
Description
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
±0.2%
Application:
Auto Testing, Lab Testing, Laboratory Testing
Customized Support:
OEM, ODM, OBM
Power:
---
Protection Class:
IP57
Voltage:
220 V
Warranty:
1 Year
Product Name:
Customized Laboratory Oven
Highlight:
300 degree laboratory oven
,
customized high temperature oven
,
industrial hot air oven
300 degree Customized Laboratory Oven Hot Air Oven Industrial high temperature oven
Uses
This machine can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supplys precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution.
300 degree Customized Laboratory Oven Hot Air Oven Industrial high temperature oven
Structure And Size
Inner size
450(width) x 400(depth) x 400(height)mm
External size
720(wide) x 580(deep) x 990(high)mm+110mm trundle, subject to the real object
Operation panel

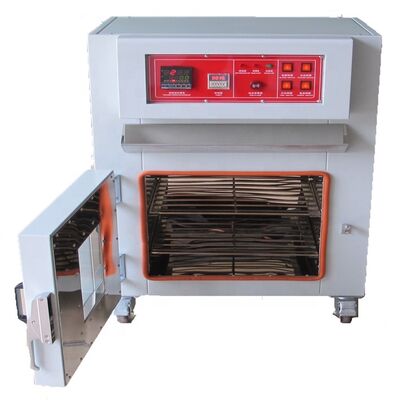

the control panel is above the machine (as shown)
Opening method
single door opens from right to left
Viewable window
visible window on the door: specification: W200*H250mm
The inner material
430# mirror plate, 1.0mm thick
The outer material
cold-rolled steel plate, 1.0mm thick
Interlayer
there are two inner layers, and two meshes
Thermal insulation materia
glass fiber rock wool, with good thermal insulation effect
Sealing material
high-temperature foamed silica gel bar
Install brake movable casters on the machine
The overall structure
floor-type
300 degree Customized Laboratory Oven Hot Air Oven Industrial high temperature oven
Temperature controlsystem
1. The temperature control instrument is PID digital display instrument (taichung instrument in Taiwan), single-point temperature control, which can be automatically calculated, PV/SV simultaneously displayed, button setting;
2. Timer setting: from 1 second to 9999 hours (optional setting hours, minutes and seconds) when the temperature reaches time, when the heating current is stopped, and an alarm is prompted at the same time;
3. Temperature line (K) type;
4. Signal output is 3-32v;
5. The heating controller is: solid relay SSR without contact;
6. Heating material: heat resistant tube;
7, temperature range: 50 ~ 300 ℃ adjustable, commonly used temperature within 260℃;
1. Air supply mode: internal horizontal hot air circulation;
2. The motor is temperature-resistant special type, with motor power of 370W/220V;
3. The fan is 7.5-inch multi-wing turbine type;
4. The air inlet is on the right side of the machine and the air outlet is on the left side of the machine.
Power Supply Device
1. Voltage AC 220V single-phase 50HZ
2. Current 16A
3. Power: 3.5kw
Safety protection system
1. Over-temperature protection system: when the temperature is out of control and the temperature is set beyond the over-temperature protection, the heating power supply will be automatically stopped to protect the safety of products and machines;
2. Circuit protection system: ground protection, rapid insurance, etc.
