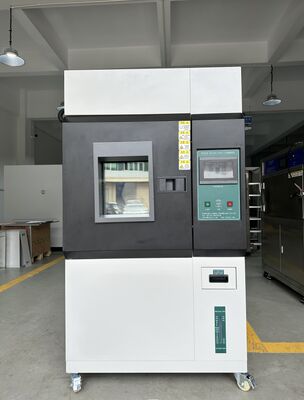

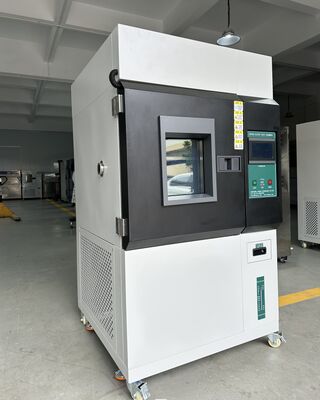

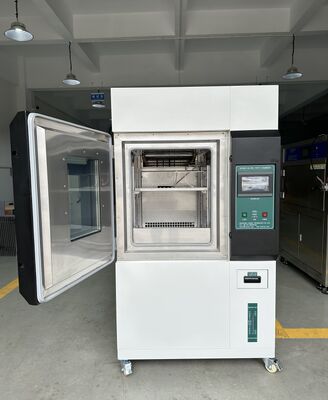

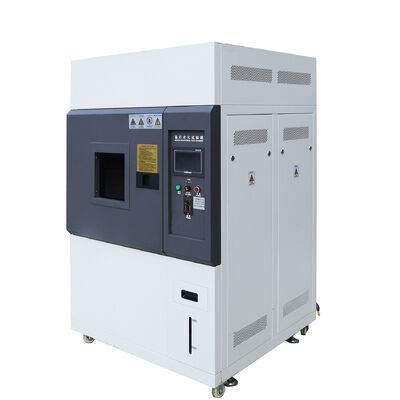

ASTM G26 ISO 105 Xenon Test Chamber ASTM G155 ASTM D2565 c Aging Box Xenon Lamp Aging test Chamber

3.Main technical parameters

Interior dimension

600×600×800mm(W*D*H)

Carton size

About 1200×1110×1950mm(W*D*H) based on the actual size

Radiation intensity of xenon lamp

Uv 340nm band,0.35~0.7W/m2 ;

Lamp Number

1 Piece

Lamp power

2.5KW

Lamps life

1200 hours or so

Filter type

Sun filter

Temperature range

RT+10℃~70℃

Blackboard temperature range

40℃ ~ 100℃ adjustable (light period); 25 ~ 85℃ (Dark cycle)

Thermometer selection

Blackboard thermometer BPT

Irradiance meter

Intelligent fully automatic irradiation intensity compensation

Temp Accuracy

±0.1℃

Temperature fluctuation

±0.5℃

Temperature departure

±3℃

Humidity range

30% ~ 98%RH (in the dark); 20% ~ 60%RH (when the light is on)

Humid. accuracy

±1%RH

Humidity fluctuation

±3%RH

Variation

Within ±5%RH

Light cycle time

1S~999H59M59Scontinuously adjustable

Rainfall time

1S~9999min Continuous rainfall is adjustable

Rainfall cycle

1~240min The interval (break) rainfall is adjustable

Spray cycle

18min/102min or 12min/48min (Water spraying time/no water spraying time)

Rain pressure

0.12~0.15Mpa

Nozzle aperture

∅0.8mm

Diameter Of Rctary Tabel

∅800mm

Rotary speed

1~3R/min

Standard sample plate clip

A set
Full spectrum special sample plate clamp set:

GB/T8430-1998 ISO105-B04:1994

Sample exposure content

1) The temperature of the test chamber does not exceed 40℃ during the drying cycle; The blackboard temperature measured under the same exposure as the sample should not exceed the maximum temperature of 20℃ in the drying period test chamber;

2) Spray duration: 1min;
3) Drying duration: 29min;

Water quality requirement

Use pure or deionized water

Rubber sealing strips of doors and windows for vehicles

Silicone rubber pressing seal device

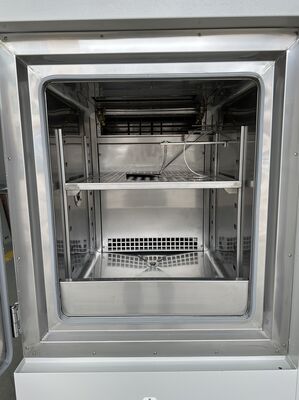

Sample shelf material

SUS304 stainless steel

Interior material

SUS304 stainless steel

Exterior material

Cold tie board paint
