ASTM F1335 plastic pipe tester
,
hydrostatic pressure test machine
,
ASTM D1599 plastic pipe tester
Plastic Pipe Hydrostatic Pressure Tester comply with ASTM F1335, ASTM D 1598, ASTM D 1599
1.Product introduction, implementation standards and instrument composition:
² Introduction: pipe pressure blasting testing machine is mainly used for ultra-high pressure pipeline and container hydraulic instantaneous blasting and long-term constant pressure under the determination of damage resistance time, Mainly used in metal thermoplastic pipes, reinforced thermoplastic pipe, tubing, cylinders, hydraulic components, pressure vessel, pipeline in aerospace pressure vessel, pipeline engineering hydraulic hose, automotive hose, and other areas of the ultrahigh pressure resistant test, is all manufacturers, research institutes, quality inspection departments necessary testing instruments.
Standard Requirements: GB6111, GB/T15560, GB/T10002.1, GB/T10002.3, GB/T 18252, CJ/T108, ISO 1167, ISO 9080, ASTM F1335, ASTM D 1598, ASTM D 1599.
Plastic Pipe Hydrostatic Pressure Tester comply with ASTM F1335, ASTM D 1598, ASTM D 1599

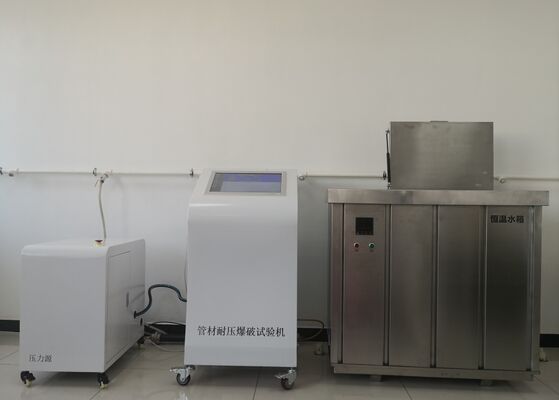

Components of instrument: Pressure control system, constant temperature media box and sealing fixture. The specifications and models of each part are selected by users, and can also be customized by customers.

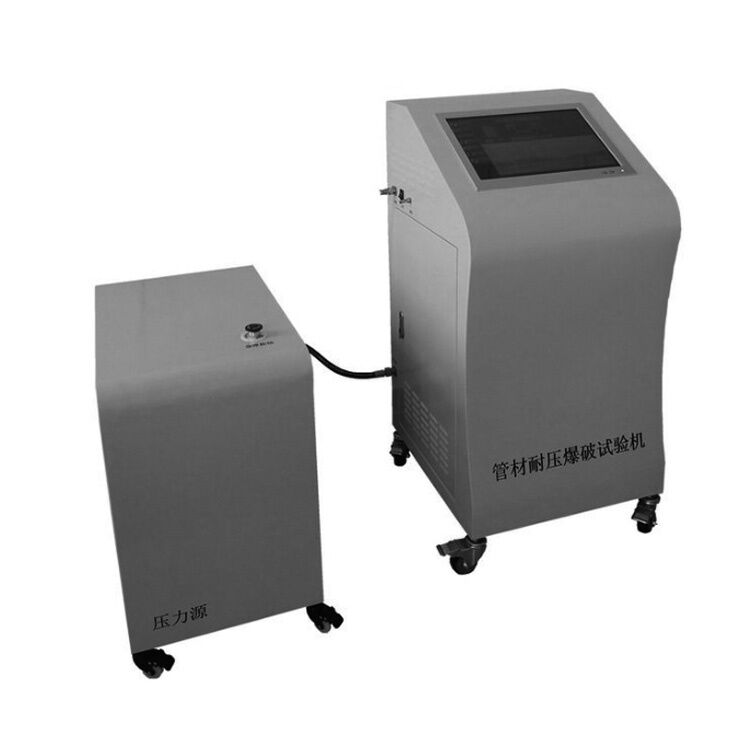

2.pressure control system:
(I) Host features:
l Modular design: The main program control adopts Taiwan delta Programmable controller modular independent electronic control system, which can be removed or installed according to the requirements of different modules, strong versatility, high stability, low maintenance cost.
l Several use purposes: it can not only carry out long-term hydrostatic test of pipeline, but also do instant blasting test of pipe (blasting and pressure test can be carried out for each road).
l Excellent prformance,reliable long-term operation, extremely high stability, one way multi-port test efficiency, low use cost, good economic benefits.
l Wide pressure control range: The pressure control range of each station is 0.4-10mpa.
l High reliability assurance: electrical, mechanical and software parts are equipped with safety protection measures.Integrated modular assembly: equipped with microcontrol unit and solenoid valve control unit, do not interfere with each other, test breakdown of one station does not affect the normal test of other stations.
l Full-featured: rupture identification, real-time monitoring, power outage protection, power failure protection, automatic call recovery, host data store can be stored offline for 7 days, automatic increase time, manual increase time, change test pressure during the test.
(2) Characteristics of pressure source:
The main pressure source is imported pump head, self-contained, one pressure source can be connected to multiple mainframe.
Main pressure high, high flow.
The pressure control gauge provides fast response and stable pressure control.
Wide pressure range, storage pressure 0.4-10mpa can be adjusted.
Low noise, safe and stable.
The instrument comes with leakage protection function.
Set elastic connection, low noise.
Technical Specification
Hydrostatic Pressure Tester
Control methods
PC control
Test pipe diameter range
D16mm-D1600mm
Max test pressure
10MPa/16MPa(can customize)
Number of test stations
1-60 work station(Optional)
Data save
With power failure data protection function, can be restored after boot
Time
Time range
0-10000h
Time accuracy
±0.1%
temporal resolution
1s
Minimum setting unit
min
Pressure
Pressure control range
0.4 MPa~10MPa
Pressure control accuracy
-1%~+2%
Pressure display resolution
0.001MPa
Measure range
4%~100%FS
Show the allowable error limit of the value
Indicates within 1% of the value
Constant temperature medium box
1.Brief introduction:
Used with the pressure control system, the thermostat medium box is suitable for long-term hydrostatic and instantaneous blasting tests of various pipes and fittings. It is the necessary testing equipment for scientific research institutes, quality inspection departments and manufacturers of pipes and fittings.
2.Features:
l Theinsulation system adopts two kinds of insulationmaterials,which have good insulation performance and significant energy saving benefit after long-term use. When the water temperature is 95℃, the outer box is still close to room temperature, which greatly improves the safety of the whole machine, and saves more than 70% of the power consumption.
l The box and upper cover are made of 304 stainless steel. The circulation pump flow is not less than 4m³/h.
l Built-in heater, high heat exchange efficiency, maintenance, repair, maintenance heater does not need to stop without affecting the normal operation of the test.
l Separator temperature control system, tank built-in heating system, external cooling system, noise reduction.
l The opening mode of the box cover is pneumatic opening, which saves labor and does not occupy excess laboratory space.
l The box cover can be stopped at any opening Angle, and has reliability, safety and convenience.
l The cover of the box is sealed with silicone rubber strip, and there is no air leakage at high temperature.
l Intelligent automatic water replenishment function, water shortage shutdown protection function, overflow function; The control temperature can be set arbitrarily.
l Stainless steel liner, equipped with stainless steel pump body structure frame bottom, large weight bearing, strong resistance to deformation.
l The liner is a 2mm stainless steel plate.
l Thick insulation layer over a thickness of 85mm, and measures to reduce thermal bridge (short circuit), heat preservation and power saving.
l All components are stainless steel (piping, fittings, heaters, valves, etc.).
l The temperature control system adopts the brand leakage protection device to protect personal safety in time.
l The thermostat tank is automatically circulated and can be connected to an external circulation system.
l The tank has its own heating control system.
l With refrigeration system (temperature can be reduced from room temperature to 15℃), high-power industrial chiller.
l Automatic filter function, at any time to filter out the water debris.
l The inner wall of the tank is equipped with high pressure interface, each interface can be equipped with quick connector and high pressure hose.
