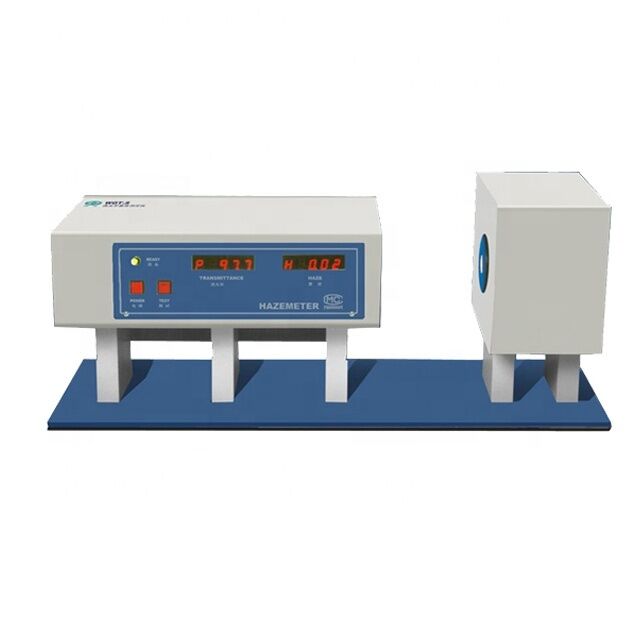

ASTM D1003 JIS K7105 Transmittance and Haze Meter for Plastic Film

ASTMD1003-61 JISK7105 Transmittance And Haze Meter For Plastic Film

Uses

ASTMD1003-61 JISK7105 Transmittance And Haze Meter For Plastic Film is applicable in all transparent and semitransparent parallel level material for testing transmittance and haze degree. It is designed according to GB2410-80, ASTMD1003-61 (1977), JISK7105 and so on. The meter is operated automatically by computer convenient to use and display and print the values of transmittance and haze degree. It confirms to ASTM D1003-61 (1997): Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics and JISK7105.

ASTMD1003-61 JISK7105 Transmittance And Haze Meter For Plastic Film

ASTMD1003-61 JISK7105 Transmittance And Haze Meter For Plastic Film Specifications

1. Testing range: Transmittance: 0-100.0%

Haze degree: 0-30.00%

2. Accuracy: transmittance: 1%

haze degree: when H≤0.5%, 0.1%; when H>0.5%, 0.3%

3. Display average value of transmittance and haze degree automatically.

4. Take over by integral ball

5. Clamp-house

6. LED display

7. Minimum reading: transmittance degree: 0.1%; haze degree: 0.01%

8. BCD code SLIP output print interface

9. Automatic operation system, transmittance degree and haze degree can be switched automatically; calibrate automatically.

10. Warming time: 30 minutes

11. Sample size:

Solid standard sample: 50mm×50mm

Solid full-page proof: width: 380mm, thickness: 130mm

Flume size: 50mm×50mm×10mm

Film size: 50mm×50MM
