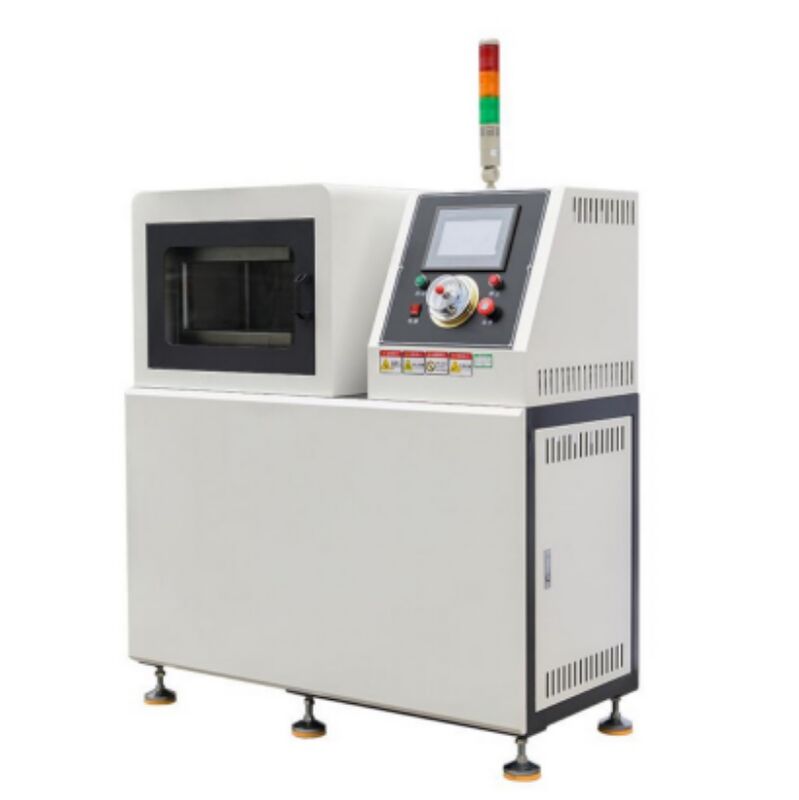

Lab Rubber Moulding Machine/Plate Vulcanizing Press/ 25T Rubber Flat Plate Vulcanizer

Item    Model

LR-6014A-25

Pressure capacity

25T

Pressure gage

The double node pressure is adjustable, and the pressure adjustment accuracy is 10%

Platen size (mm metric)

250*250/300*300/350*350/400*400/450*450/500*500/600*600[mm]

Hot press plate material

High temperature resistant imported steel plate, surface carbonization quenching, special treatment of fast heat conduction, pressure parallel type, wear-resistant.

Platen hardness

                           50~60HRC

Flatness of the platen

                            0.03mm

Platen parallelism

≤0.16mm

Temperature range [select one based on the price list]

Room temperature -250℃ [can be customized maximum temperature of 500 degrees]

Temperature uniformity

2.5℃ [The larger the pressure plate, the higher the temperature, the worse the temperature uniformity]

 Temperature controller

Precision module, with PLC touch screen control, touch screen display, numerical display.

 Temperature control type

Temperature control motherboard precise control, self-tuning with high-precision sensor, temperature control accuracy: ±1.0℃.

Chronometer

Set the display in the touch screen, the time range is 0.1S ~ 99min ~ 9.9hr

Heater

Heating mold built-in cylinder [According to the platen area configuration of different power packaging platen temperature uniformity, not the same power]

Heating tim

It takes about 15min from room temperature to 160℃

Two hot plates

Each hot plate can be set to control the temperature

Heating method

electrical heating

Cooling mode

Free Cooling

Oil hydraulic system

CREE.6 hydraulic flow closed loop control system, oil pump drive high performance electro-hydraulic with high precision no resistance cylinder piston to perform constant speed control mode, with automatic pressure compensation function. One pressure automatic pressure, strong load force, stable rise and fall; Automatic pressure, pressure retention, pressure relief.

 Cylinder stroke

Max 150mm [customizable]

Speed of the cylinder

11mm/s

Manometer

0~200kg/sq.cm

Mold opening mode

Automatic ascent and descent (manual automatic dual function)

Safety device

Safety shields, safety doors.

Number of safety devices

4 pc

Supporting mold frame [optional]

Custom

Volume

(W×D×H)1100×550×1500 mm

Power voltage

,AC220V

 Weight

≈680kg
