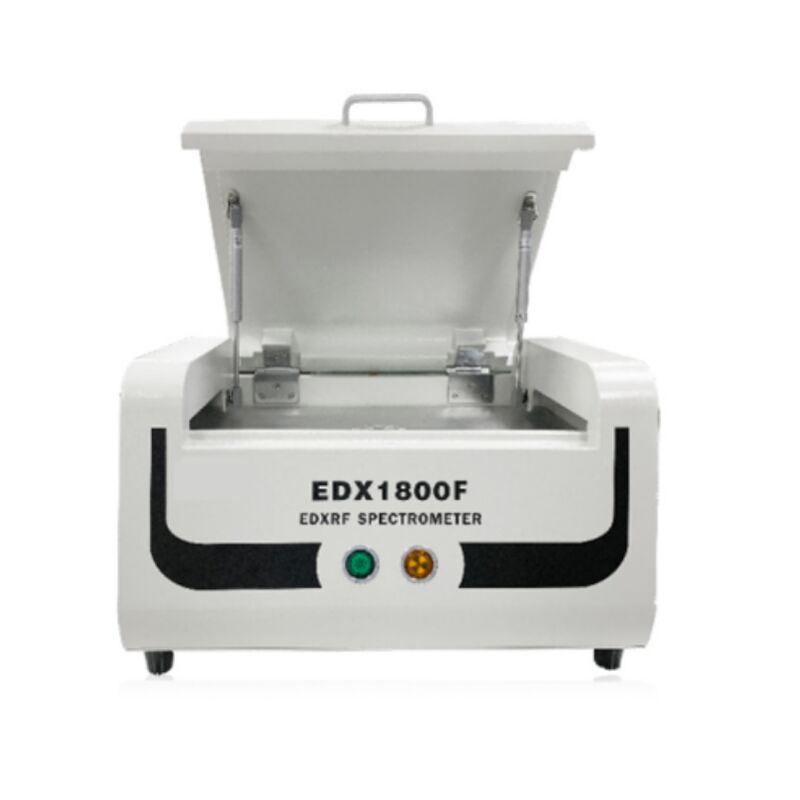

EDX1800F EDXRF Spectrometer Energy Dispersion X-ray Fluorescence Spectrometer RoHs Analyzer

 EDX1008F EDXRF Spectrometer Energy dispersion X-ray fluorescence spectrometer RoHs Analyzer

Product details

1. Product name and model index introduction:

1.1. Product name and model: (EDX1800F)

Energy dispersion X-ray fluorescence spectrometer model 1800F

1.5. Working conditions:

Working temperature: 15-30 ℃

Relative humidity: 40% ~ 50%

Power supply: AC: 220 V ± 5V

1.6. Technical performance and index:

The range of elemental analysis is from sulfur (s) to uranium (U);

1.6.2. The analysis range of element content is 1 ppm to 99.99%;

1.6.3. Measurement time: 100-300 seconds;

1.6.4. The detection limit of harmful elements (CD / Pb / Cr / Hg / BR) specified in ROHS directive is up to 1ppm;

1.6.5. The energy resolution is 144 ± 5 EV;

1.6.6. The temperature range is 15 ℃ to 30 ℃;

1.6.7 power supply: AC 220 V ± 5V;( It is recommended to configure AC purified regulated power supply.)

1.68 Meet the product ROHS detection, coating thickness detection, and metal material composition analysis

1.7. Product features

1.7.1 1800F is a product specially designed for RoHS, EN71 and other environmental protection directives.

1.7.2 break the traditional straight line design of the instrument and adopt the integral design of streamline body to make the instrument fashionable and generous.

1.7.3 it adopts the latest Si PIN detector in the United States, with electric refrigeration instead of liquid nitrogen refrigeration, small volume, accurate data analysis and low maintenance cost.

1.7.4 self developed SES signal processing system is adopted to effectively improve the measurement sensitivity and make the measurement more accurate.

1.7.5 one button automatic test, easier to use, more convenient, more user-friendly.

1.7.6 seven kinds of optical path correction and collimation systems are automatically switched according to different samples.

1.7.7 multiple anti radiation leakage design, radiation protection level belongs to the highest level of similar products.

1.7.8 the advanced integrated heat dissipation design greatly improves the heat dissipation performance of the whole machine and ensures the operation safety of the core components.

1.7.9 the unique movement temperature control technology ensures the safe and reliable operation of X-ray source, effectively prolongs its service life and reduces the use cost.

1.7.10 multiple instrument accessories protection system, and the whole process monitoring can be carried out through software, making the instrument work more stable and safer.

1.7.11 RoHS special test software, standard window design, friendly interface, easy to operate.

1.7.12 this machine adopts USB2.0 interface, which effectively ensures the accurate, high-speed and effective transmission of data.

 EDX1008F EDXRF Spectrometer Energy dispersion X-ray fluorescence spectrometer RoHs Analyzer

2. Main configuration of instrument hardware

2.1 Si PIN electro cooled semiconductor detector: (latest detector)

2.1.1. Si PIN electro cooled semiconductor detector; Resolution: 149 ± 5 ev

2.1.2. Amplifying circuit module: detect the sample characteristic X-ray; Further amplify the information collected by detection.

2.2 X-ray excitation device:

2.2.1. Maximum filament current output: 1mA;

2.2.2. It belongs to semi loss type, 50W, air cooling.

2.3 high voltage launcher:

2.3.1. Maximum output voltage: 50kV;

2.3.2. Minimum 5kV controllable regulation

2.3.3. Built in voltage overload protection

2.4 multichannel analyzer:

2.4.1. Convert the collected analog signal into digital signal, and provide the processing results to the upper computer software.

2.4.2. Maximum road number: 4096;

2.4.3 signal enhancement processing

2.5 optical filter module

2.5.1 reduce the interference in the process of X-ray transmission, and ensure the accuracy of the signal received by the detector.

2.5.2 integrate the collimator with the filter;

2.6 collimator automatic switching module

2.6.1 there are up to 8 choices, with caliber of 8, 6, 4, 3, 2, 1, 0.5 and 0.2 respectively.

2.7 filter automatic switching module

2.7.1 free selection and switching of six filters.

2.8 automatic selection module of working curve

2.9.1 automatic selection of working curve, abandoning manual selection, avoiding manual operation error, and realizing automation and intelligence

The interpretation is more perfect, making the operation more humane and more convenient.
