ASTM C518 DRPL-VV Horizontal Sheet Film Direction Thermal Conductivity Tester Test Machine

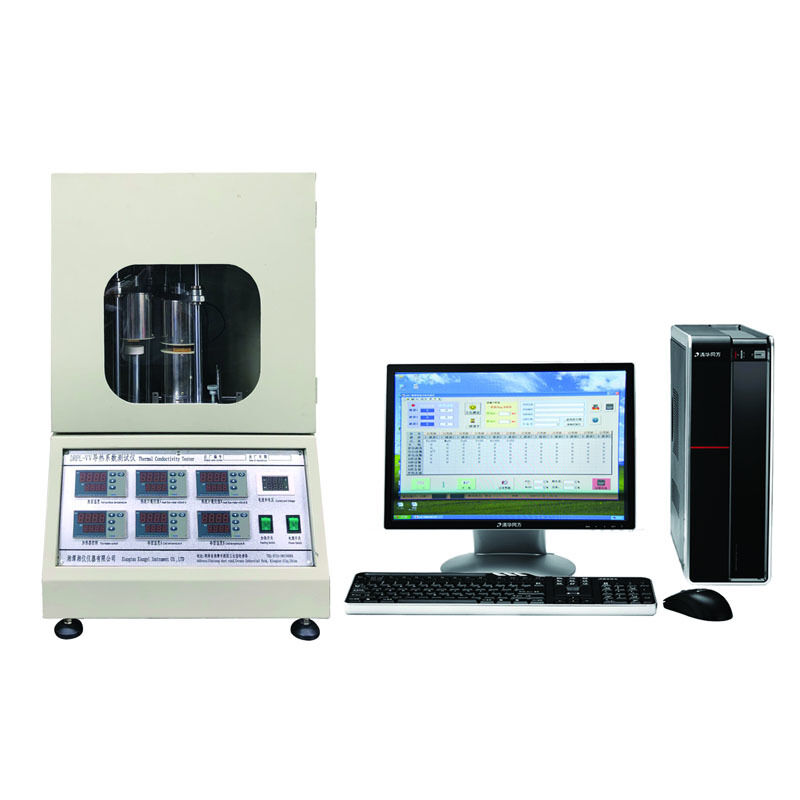

Large Image : ASTM C518 DRPL-VV Horizontal Sheet Film Direction Thermal Conductivity Tester Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	lonroy

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM C518 DRPL-VV Horizontal Sheet Film Direction Thermal Conductivity Tester Test Machine

Description

Type:	Testing Machine	Accuracy:	---
Application:	Laboratory Testing	Customized Support:	OEM, ODM, OBM
Power:	---	Protection Class:	IP57
Voltage:	220 V	Warranty:	1 Year
Logo/graphic Design:	Hot Stamping	Product Name:	Sheet Film Horizontal Direction Thermal Conductivity Tester
Power Supply:	AC220V±10%; 50HZ; 500W	Number Of Sample Groups:	1 ~ 2 Pieces
Power:	Electronic
Highlight:	ASTM C518 thermal conductivity tester , horizontal sheet film thermal analyzer , DRPL-VV thermal conductivity test machine

Product Description

DRPL-V high temperature/high precision material thermal conductivity tester plate heat flow meter ASTM C518
1.use
It is mainly used in the research, development and quality control of materials with thermal conductivity ranging from 0.005 to 500W/m.K, such as aerogel plate, vacuum glass, graphite paper, copper foil and other very thin materials with horizontal thermal conductivity.

DRPL-V high temperature/high precision material thermal conductivity tester plate heat flow meter ASTM C518

2.Product Parameter

thermal conductivity range	0.005 ~ 500W/m.K
sample range	(50 ~ 150) ×(25) ×(0.001 ~ 5)mm length * width * thickness
Pressure loading method	manual pressure, thickness measurement method: manual;
cold plate with precision constant temperature water tank, temperature control range	5 ~ 70ºC, temperature control accuracy 0.1ºC, temperature meter accuracy: 0.1ºC.
hot plate heating mode	220V electric heating; Temperature control range: room temperature ~ 150ºC
heat flow meter model	imported high-precision heat flow sensor
Number of sample groups	1 ~ 2 pieces
Repeatability	the deviation of two measurements is <±3%
voltage, frequency, power	AC220V±10%; 50HZ; 500W
