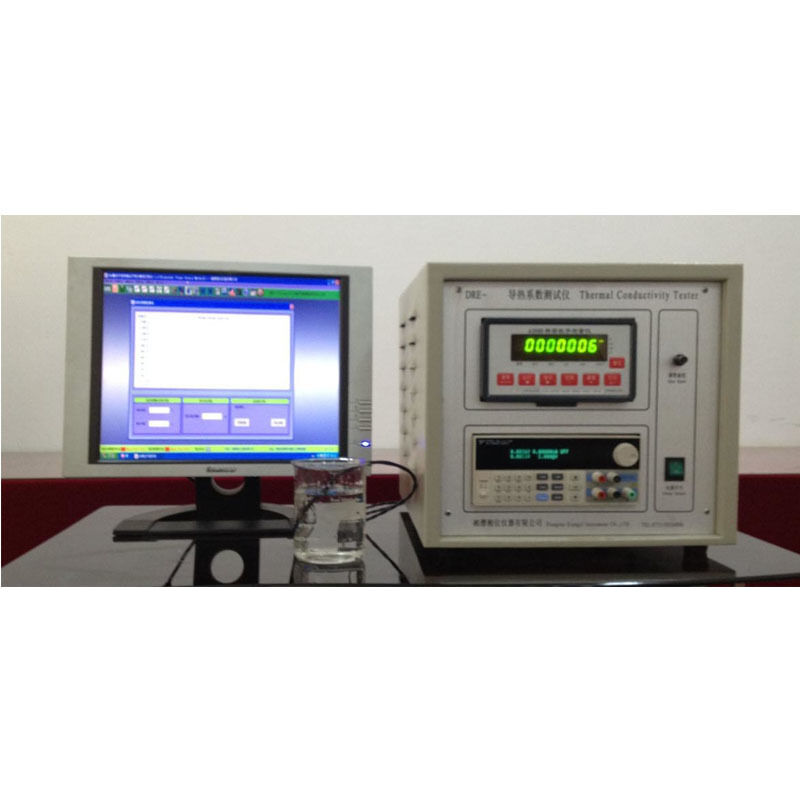

DRE-IV thermal conductivity tester colloidal thermal conductivity meter, particle thermal conductivity meter
1.use
Thermal conductivity tester (transient probe method), colloidal thermal conductivity meter, particle thermal conductivity meter
The thermal conductivity tester adopts transient probe method, which is suitable for measuring the thermal conductivity of highly viscous fluids, colloidal, particles, powders and other materials. This instrument combines the hot-wire method and the probe method, which greatly improves the portability of operation while ensuring the measurement accuracy. Users only need to insert the detector into the tested sample, and the thermal conductivity of the tested sample can be obtained by simple software click operation, which is especially suitable for field measurement.

DRE-IV thermal conductivity tester colloidal thermal conductivity meter, particle thermal conductivity meter
2.Main features

1. Convenient operation, fast test speed and accurate measurement

2. Especially suitable for field measurement

3. There is no special shape requirement for the sample

4. Automatic test software, easy to operate

5. With sample temperature controller, it can test the thermal conductivity of the sample at different temperatures.

DRE-IV thermal conductivity tester colloidal thermal conductivity meter, particle thermal conductivity meter

2.Product Parameter

Measurement range	0.01 ~ 5.0W/(m·K)
Pressure range	normal pressure
Temperature range	room temperature, (test the thermal conductivity of the sample at different temperatures, the need for temperature controller)
Precision	<±3.0 %
Sample shape	loose material
Sample dosage	length not less than 10cm, diameter not less than 3cm (dosage is related to the size of the matched probe)
Measurement time	5 minutes
