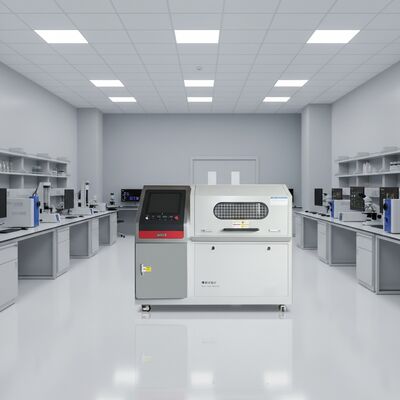

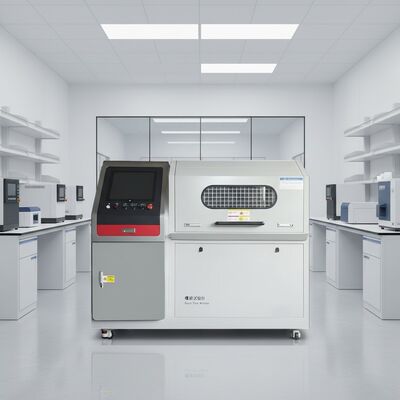

Gas-Liquid Ratio Burst Test Bench Laboratory Gas-Liquid Ratio Pressure Burst Test Stand Factory Price

Large Image : Gas-Liquid Ratio Burst Test Bench Laboratory Gas-Liquid Ratio Pressure Burst Test Stand Factory Price

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Gas-Liquid Ratio Burst Test Bench Laboratory Gas-Liquid Ratio Pressure Burst Test Stand Factory Price

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Test Specimen Length:	100-1000mm
Ambient Temperature:	-60-180℃ (optional)	Medium Temperature:	RT-180℃ (optional)
Pressure Increase Rate:	3~300MPa/min, Adjustable
Highlight:	Gas-Liquid Ratio Burst Test Bench , Laboratory Gas-Liquid Pressure Tester , Gas-Liquid Ratio Test Stand Factory

Gas-Liquid Ratio Burst Test Bench Laboratory Gas-Liquid Ratio Pressure Burst Test Stand Factory Price

Product Description

Applicable Products

Radiators, condensers, evaporators, intercoolers, heater cores, oil coolers, heaters, pressure gauges, fire-fighting equipment, metal connectors, valves, hose assemblies, pipelines, pressure vessels, pressure transmitters, etc.

Test Procedures

1. Constant rate pressure increase - burst

2. Constant rate pressure increase - pressure holding - burst

3. Constant rate pressure increase - pressure holding - pressure release

4. Constant rate pressure increase - pressure holding - pressure release - constant rate pressure increase - burst

5. Incremental pressure increase

End Gas-Liquid Ratio Burst Test Bench Laboratory Gas-Liquid Ratio Pressure Burst Test Stand Factory Price

Technical Specification

Pressure Range	0~500MPa (range can be selected as needed)
Pressure Increase Rate	3~300MPa/min, adjustable
Test Specimen Diameter	Φ3-Φ150mm
Test Specimen Length	100-1000mm
Ambient Temperature	-60-180℃ (optional)
Medium Temperature	RT-180℃ (optional)
Test Medium	Water, water-ethylene glycol, hydraulic oil
Number of Test Specimens	1 piece
Optional features	Elongation, expansion rate, oscillation, torsion
