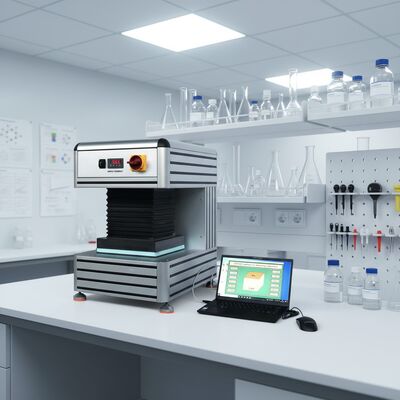

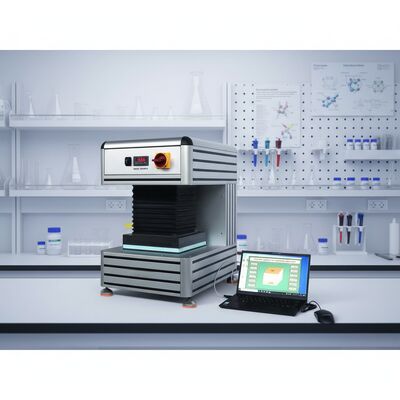

Thermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity Analyzer

Large Image : Thermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Thermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity Analyzer

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	2.0 KW
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Temperature Resolution:	0.01 °C
Specimen Flatness:	0.1 Mm	Pressure Range:	0-400 N
Power Supply:	AC 220 V±10%, 2.0 KW
Highlight:	thermal conductivity meter high accuracy , thermal insulation coating analyzer , lab test machine for insulation

Thermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity Analyzer

Product Description

Description

This thermal insulation coating thermal conductivity meter is designed to measure the thermal conductivity of reflective insulation coatings for buildings in accordance with GB25261-2018. It features simple operation, high accuracy, and fast testing speed.

Thermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity Analyzer

Technical Specification

Heat flow fluctuation	0.005–0.05 mV
Thermal conductivity measurement display range	(0.001–3.000) W/(m·K)
Thermal conductivity measurement accuracy	±3%
Thermal conductivity measurement repeatability	±1%
Temperature measurement range	-5 °C to 100 °C
Temperature resolution	0.01 °C
Temperature control accuracy	0.05 °C
Specimen thickness	Standard 25 mm, range: (5–40) mm
Measurement range	0–50 mm
Measurement accuracy	1 µm
Specimen flatness	0.1 mm
Pressure range	0–400 N
Pressure measurement accuracy	0.1 N
Test chamber temperature	Standard temperature (23±2) °C
Test chamber humidity	Standard humidity (40–60) %RH
Power supply	AC 220 V±10%, 2.0 kW
