Product Introduction

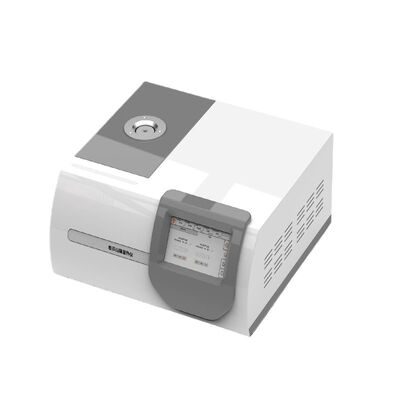

The LR-DSC400 is a high-precision differential scanning calorimeter launched by our company. The sensor uses imported E-couples, offering high accuracy, high sensitivity, and excellent repeatability. The signal acquisition circuit is shielded for strong anti-interference capabilities, and boasts extremely high baseline stability and repeatability.
The LR-DSC400 differential scanning calorimeter can perform tests on glass transition temperature, phase transition temperature, melting point, enthalpy, curing temperature, product stability, specific heat capacity, crystallization, and oxidation induction period. It is suitable for research in numerous fields such as pipe manufacturing, polymers, chemicals, food, and medical applications. Our products serve universities, enterprises, research institutes, and quality inspection agencies, with a very wide range of applications meeting the testing needs of various industries.
Technical Features
1. Industrial-grade 7-inch touchscreen with rich information display.
2. New furnace structure for better baseline and higher accuracy. Heating uses indirect conduction, resulting in high uniformity and stability, reducing pulse radiation, and is superior to traditional heating methods.
3. USB communication interface mode, highly versatile, reliable and uninterrupted communication, supports self-recovery connection function.
4. Automatically switches between two atmosphere flow channels, with fast switching speed and short stabilization time. An additional protective gas input is also provided.
5. Rich software functions, covering a corresponding test case database.
6. Ultra-high sensitivity and accuracy, ≤0.5uw.
Compliant Standards
GB/T 33466.1-2016 Rigid Polyvinyl Chloride Pipes—Differential Scanning Calorimetry (DSC)—Part 1: Measurement of Processing Temperature
GB/T 40271-2021 Textile Fiber Identification Test Methods—Differential Scanning Calorimetry
GB/T 19466.1-2004 Plastics—General Rules for Differential Scanning Calorimetry (DSC)
GB/T 19466.4-2016 Plastics—Differential Scanning Calorimetry (DSC)—Part 4: Determination of Specific Heat Capacity
GB/T 19466.5-2022 Plastics—Differential Scanning Calorimetry (DSC)—Part 5: Determination of Temperature, Time, Enthalpy and Conversion Rate of Characteristic Reaction Curves
GB/T GB/T 19466.6-2009 Plastics—Differential Scanning Calorimetry (DSC)—Part 6: Determination of Oxidation Induction Time (Isothermal OIT) and Oxidation Induction Temperature (Dynamic OIT)
GB/T 19466.2-2004 Plastics—Differential Scanning Calorimetry (DSC)—Part 2: Determination of Glass Transition Temperature
GB/T 19466.3-2004 Plastics—Differential Scanning Calorimetry (DSC)—Part 3: Determination of Melting and Crystallization Temperatures and Enthalpy
GB/T 29611-2013 Raw Rubber—Determination of Glass Transition Temperature (Partial National Standards Display)
