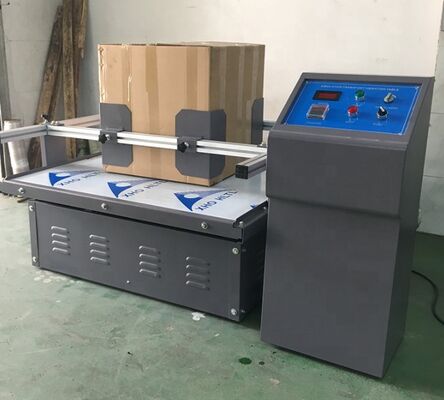

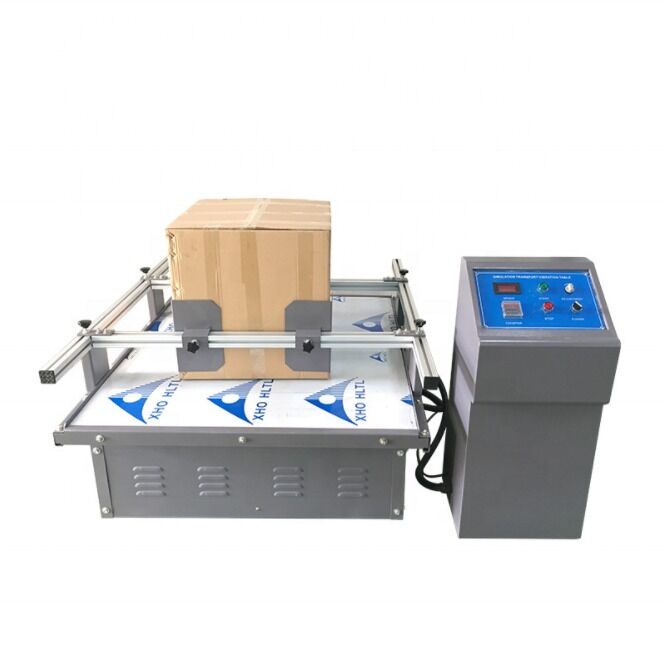

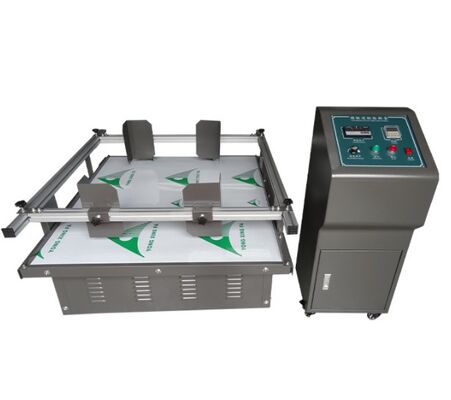

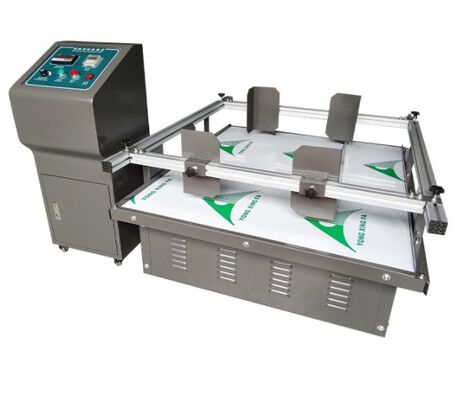

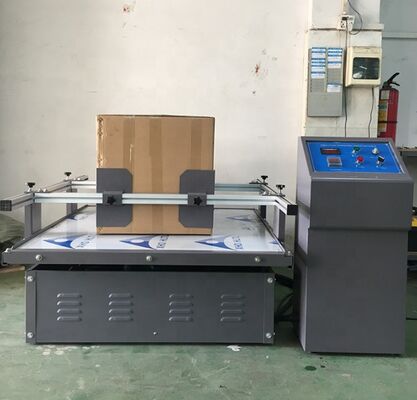

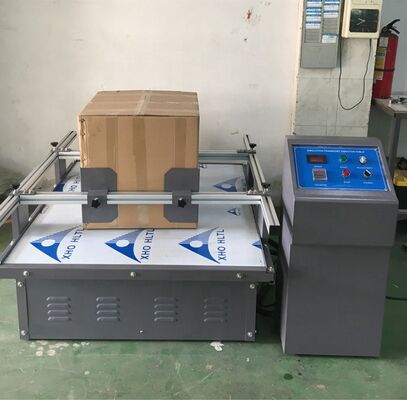

ISTA Simulated Transportation Vibration Test Shaker Table

ISTA Simulated Transportation Vibration Test Shaker Table
ISTA Simulated Transportation Vibration Test Shaker Table ISTA Simulated Transportation Vibration Test Shaker Table ISTA Simulated Transportation Vibration Test Shaker Table ISTA Simulated Transportation Vibration Test Shaker Table ISTA Simulated Transportation Vibration Test Shaker Table ISTA Simulated Transportation Vibration Test Shaker Table

Large Image :  ISTA Simulated Transportation Vibration Test Shaker Table

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Model Number: LR-F023
Payment & Shipping Terms:
Minimum Order Quantity: 1

ISTA Simulated Transportation Vibration Test Shaker Table

Description
Customized Support: OEM, ODM, OBM Power: Electronic
Warranty: 1year
Highlight:

ISTA vibration test shaker table

,

simulated transportation test equipment

,

film testing vibration table

ISTA Simulated Transportation Vibration Test Shaker Table

Use

The simulated transportation vibration table is also called "vibration table", which simulates the damage to the products caused by the bumps in the transportation process of cars, and is used to identify the ability of the products to endure environmental vibration. It is applicable to the research, development, quality control and manufacturing of various industries, such as electronics, electromechanical, optoelectronic, automobile, automobile and toy.Is your product quality reliability rare test machine.

The simulated transport vibration test bench is suitable for vibration test of toys, electronics, furniture, gifts, ceramics, communication, equipment, computers and automobile parts, etc.The machine is manufactured according to the similar equipment in Europe and America and vibrates in rotation, which conforms to the European and American transportation standards and the testing standards of EN71 ANSI, UL, ASTM, ISTA, etc.



ISTA Simulated Transportation Vibration Test Shaker Table

Specification

Maximum test load (kg)

100kg (or specified)

Test table size

1200 x 1000mm (or specified)

 Frequency range

100-300rpm

Amplitude range

1 inch (25.4mm)

Vibration mode

rotary type

Simulated speed

25-40km /h

Control motor

dc motor (variable frequency motor can be replaced according to customer requirements)

Power supply voltage

AC220V 50HZ

Machine weight

about 150kg

ISTA Simulated Transportation Vibration Test Shaker Table 0ISTA Simulated Transportation Vibration Test Shaker Table 2ISTA Simulated Transportation Vibration Test Shaker Table 4ISTA Simulated Transportation Vibration Test Shaker Table 6

ISTA Simulated Transportation Vibration Test Shaker Table 8
