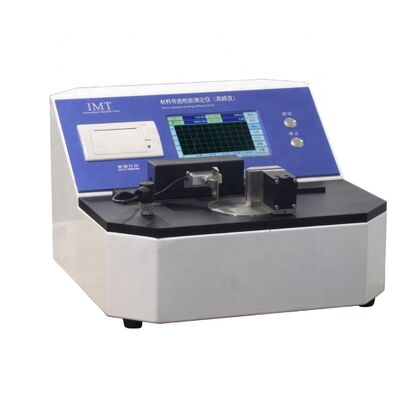

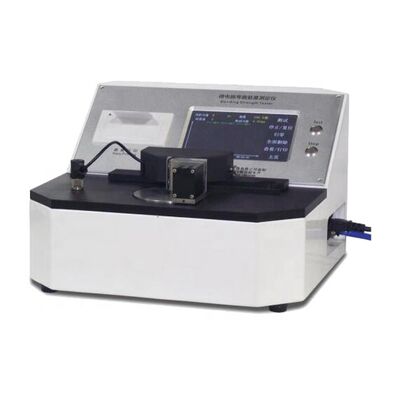

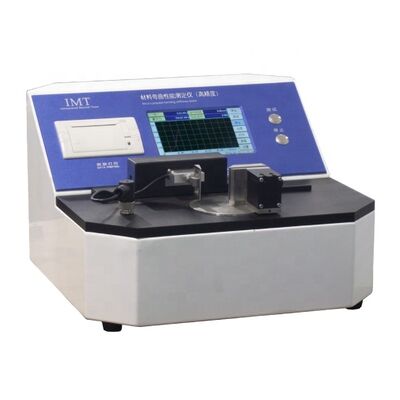

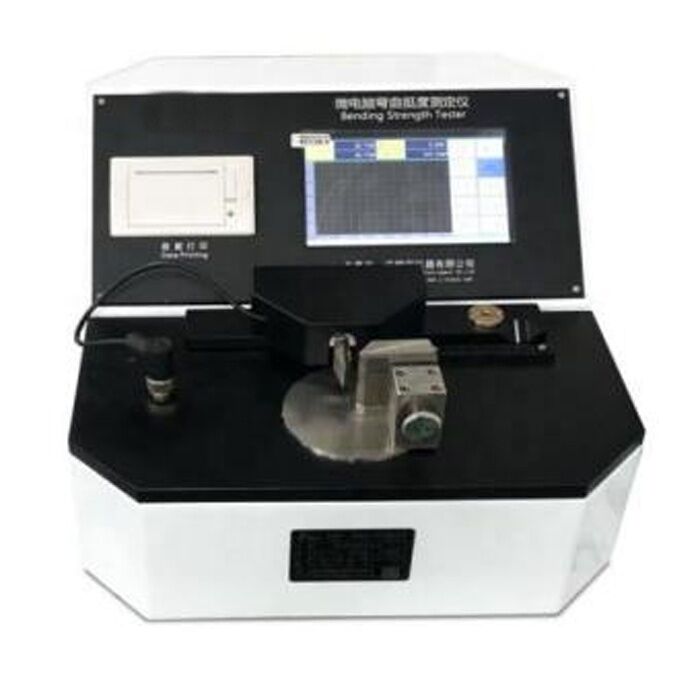

Microcomputer Bending Stiffness Meter for Paper/bending Stiffness Tester

Microcomputer bending stiffness meter for paper/bending Stiffness tester

Introduction

LR-F006 bending stiffness tester is based on GB/T22364 national standards, professional used to measure paper, cardboard, film, plastic film and sheet, mica sheet, graphite sheet, resistance to bending stiffness of composite materials such as sheet material strength test, by measuring the bending stiffness of the material, can control the section material production process quality indicators, satisfies the requirement of product use.In the packaging board, the high bending stiffness and strength of cardboard, stiffness, high appearance, beautiful, smooth, but quite too large, forming is more difficult, and will increase the cost.Stiffness is related to the thickness and quantity of paperboard, so the stiffness can be controlled within a certain range, which can meet customers' requirements and save costs.

Microcomputer bending stiffness meter for paper/bending Stiffness tester

Professional l

1. System can determine the bending stiffness of the sample at the same time value and the stiffness of the crease l

2.force value, angle automatically reset when testing, testing complete automatic reset, and improve the accuracy of test results l

3. Test point of view: (1 ~ 92 ° between arbitrary set l

4. Test time can be any number between (2 ~ 50) s settings;l

5. Testing angle changes by the electrical automatic control, improve the measurement efficiency, reduce the impact of human;l

6. Nine bending length can be tested 1 mm, 5 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm;l

7.with functions of automatic zero, before the test manual by sample;l

8. 7.0 in touch screen control, integrate new living habits, have measurement statistics, print and so on function, measuring time can be set, the convenient user testing operation and data view l

9. Testing after the completion of the high speed to return to the starting position, the return speed can be arbitrarily set between (1 ~ 12);

Testing standard

The instrument meets the national standard gb/t 22364 gb/t 2679·3 iso 2493 iso 5628

Microcomputer bending stiffness meter for paper/bending Stiffness tester

Test application

Technical index

Special sampler for stiffness

Product configuration
