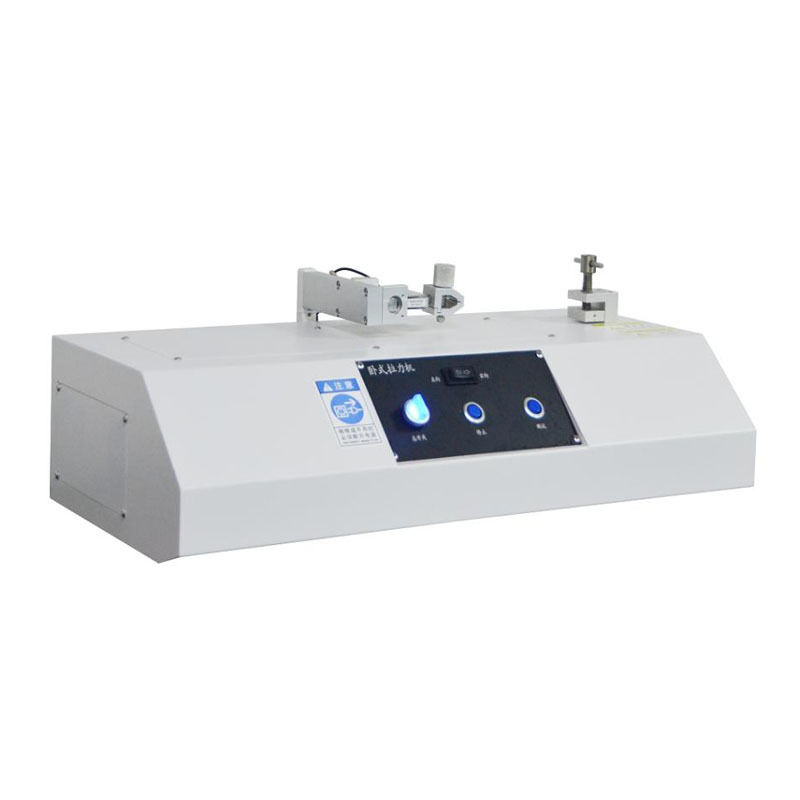

ASTM D3330 IS0 29862 Horizontal High-speed Peeling Force Testing Machine
1. Principle
The instrument is the product of the connection of electronic skills and mechanical transmission. It adopts
electromechanical integration design and is mainly composed of force sensor, transmitter, microprocessor,
load driving mechanism, computer and color inkjet printer.
It can perform many functional experiments on various materials, such as stripping, stretching,
compression, bending, shearing, etc., and has the characteristics of wide measuring range, high precision
and fast response. The experimental data can be displayed, recorded and printed in time.
ASTM D3330 IS0 29862 Horizontal High-speed Peeling Force Testing Machine
Application
It is suitable for the stripping performance test of adhesive tape, protective film, label, release film (paper)
and other products to detect the bond strength and stripping resistance of adhesive materials. It can do 180
degree stripping, 90 degree stripping and shear strength tests.
ASTM D3330 IS0 29862 Horizontal High-speed Peeling Force Testing Machine
3.Standard
GB/T 2792-2014 ASTM D3330-2004 IS029862-2007
GBT 17554. 1-2006 Test method for peel strength of adhesive tape Pressure sensitive tape peel adhesion test method
Self-adhesive tape, determination of resistance to stripping adhesion Test method for peel strength
GB 7753-1987 Test method for tensile properties of pressure-sensitive adhesive tape GBT 2792-1998 Test method for 180° peel strength of pressure-sensitive adhesive tape GB-T2790-1995 Standard for peel strength
YYT 0148-2006 General requirements for medical tape
FTM1-FINATTest Method NO.1 180° Stripping Force test (stripping speed 300mmmin) FTM2-FINAT test Method NO.2 Peel Force test at 90° (peel speed 300mmmin)
FTM3-FINATTest Method NO.3 Low speed release force test of self-adhesive FTM4-FINAT test method N0.4 adhesive fast release force test
Can adapt to various domestic and foreign standards for stripping test.
ASTM D3330 IS0 29862 Horizontal High-speed Peeling Force Testing Machine
4.Parameter
|
model
|
LR-501F-15
|
LR-501F-30
|
|
Capacity choice
|
1,2 ,5 ,10 ,20kg optional
|
|
class of accuracy
|
Level 0.5
|
|
Measurable lower limit
|
0.3g
|
|
test speed
|
The speed can range from slow 100mm/min to fast 15m/min.
The Angle can be 90° to 180°
|
|
The speed can range
from slow 100mm/min to fast 30m/min. The Angle can be 90° to 180°
|
|
Multiple Angle test
|
Multiple Angle test
|
|
Return speed
|
10m/min
|
|
Force resolution
|
0.001g
|
|
displacement resolution
|
0.001mm
|
|
effective travel
|
Including fixture 500mm
|
|
control mode
|
computer control
|
|
dimension
|
W 900mm×D 430mm×H 600mm
|
|
Power supply/Power
|
220VAC±10%50Hz /900W
|
|
sample rate
|
The point frequency can reach 1000 times/second (with multiple frequency bands to choose from)
|
|
weight
|
About 40kg
|
