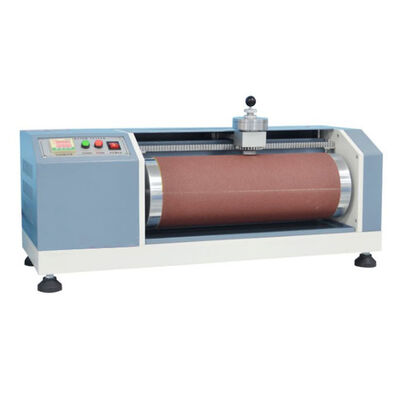

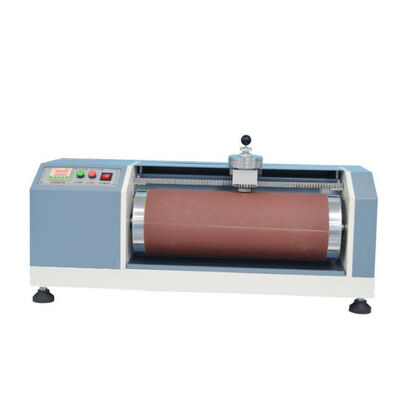

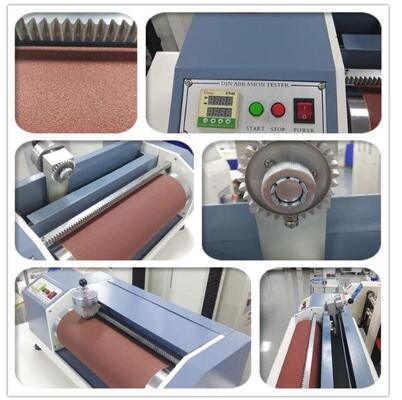

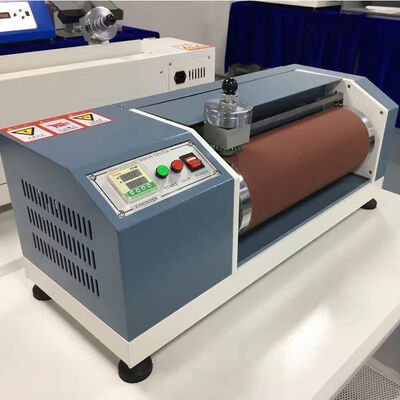

DIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber DIN Abrasion Tester

DIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber Leather abrasion Tester

Application

DIN Rubber Wear Abrasion Tester is used to test the friction of surface by a particular piece of abrasive paper, After wear for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others

Principle

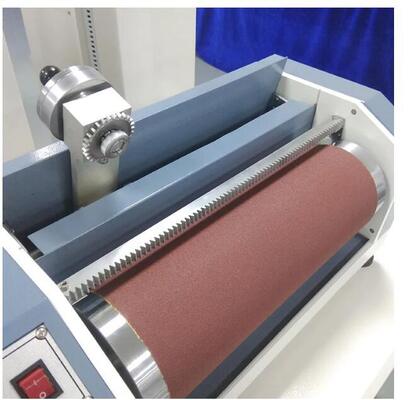

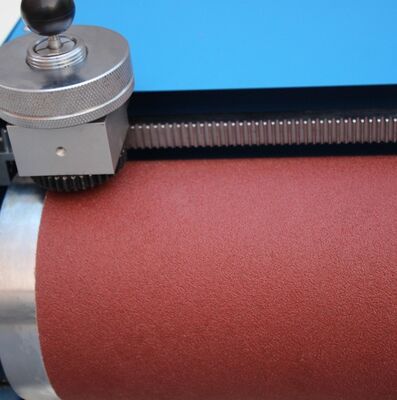

Under a predetermined contact pressure and a given area ,the specimen with sandpaper angled to measureabrasion resistance of the specimen subjected to rubbing on a certain level of sandpaper, sandpaper affixed to the surface of the drum, samples pressed on a drum with sandpaper, and the specimen along the roller to the lateral movement, abrasion resistance is produced at one end of the cylindrical specimen, tests the value  of the mass loss of the specimen, by the density of the specimen to calculate the amount of volume abrasion.

DIN ISO 4649:2006-11 (E). Rubber, vulcanized or thermoplastic - Determination of abrasion resistance using a rotating cylindrical drum device.

ASTM D5963 - 04(2010)e1 Standard Test Method for Rubber Property—Abrasion Resistance (Rotary Drum Abrader).

DIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber Leather abrasion Tester

Specifications

DIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber Leather abrasion Tester

Accessories
