Standard Blackbody Source Furnace Blackbody Calibration Furnace Portable Blackbody Radiation Source

Large Image : Standard Blackbody Source Furnace Blackbody Calibration Furnace Portable Blackbody Radiation Source

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Standard Blackbody Source Furnace Blackbody Calibration Furnace Portable Blackbody Radiation Source

Description

Type:	Testing Machine	Accuracy:	---
Application:	Auto Testing, Laboratory Testing, Lab Testing	Customized Support:	OEM, ODM, OBM
Power:	---	Protection Class:	IP67
Voltage:	220 V	Warranty:	1 Year
Temperature Range:	30℃~50℃	Display Resolution:	0.01℃
Weight:	5kg	Overall Dimension:	300mm350mm145mm (LengthWidthHeight)
Highlight:	portable blackbody calibration furnace , standard blackbody radiation source , lab blackbody source furnace

Standard Blackbody Source Furnace Blackbody Calibration Furnace Portable Blackbody Radiation Source

Product Description

Overview

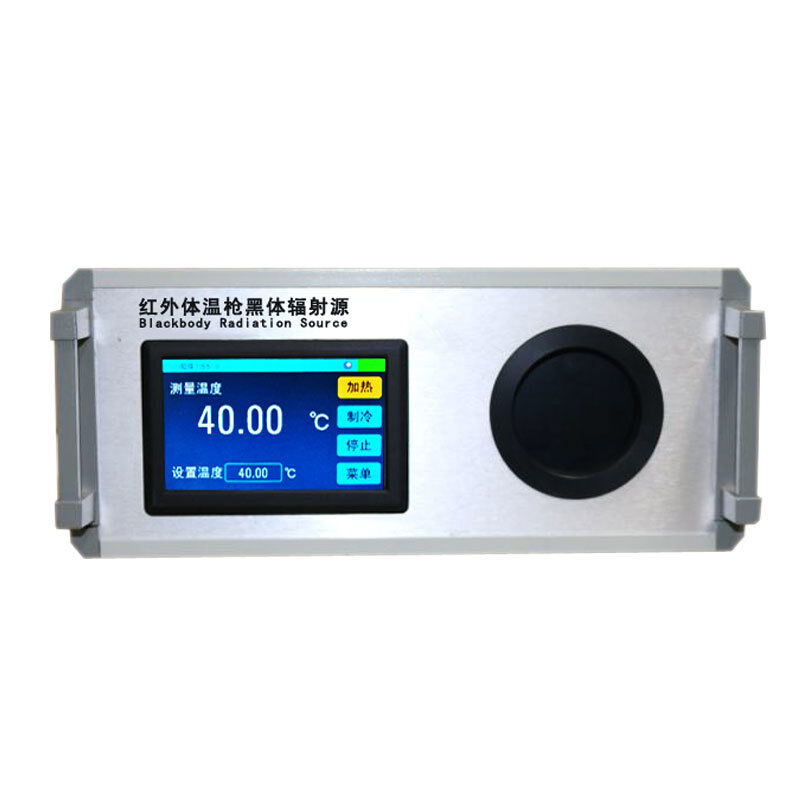

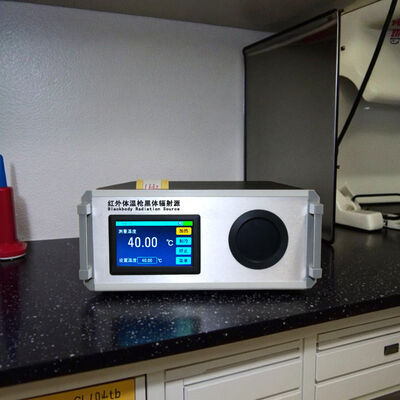

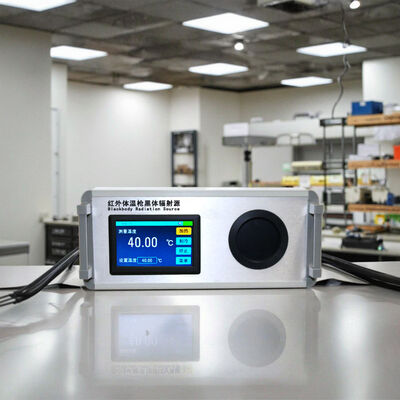

The LR-A390 portable blackbody radiation source is mainly used for real-time calibration of infrared ear thermometers, infrared forehead thermometers, infrared surface screening devices, infrared imaging thermometers, etc. on-site. It eliminates the errors caused by complex on-site environments in infrared temperature measurement systems, effectively improving measurement accuracy, enhancing the reliability of infrared temperature measurement systems, and reducing the error detection rate.

Functional Features

The device is lightweight and portable, weighing only 5kg, making it convenient to carry to the site.

It features a 5-inch touch screen for intuitive display and easy operation.

The temperature control adopts advanced PID control, ensuring stable and high-precision temperature regulation.

It heats up quickly and reaches stability in a short time.

It has a multi-point temperature correction function.

Standard Blackbody Source Furnace Blackbody Calibration Furnace Portable Blackbody Radiation Source

Technical Specification

Effective Emissivity	≥0.99
Temperature Range	30℃~50℃
Display Resolution	0.01℃
Temperature Stability	±0.1℃/10min
Temperature Uniformity	≤0.15℃
Control Mode	PID
Surface Source Size	Φ60mm
Overall Dimension	300mm350mm145mm (LengthWidthHeight)
Weight	5kg
