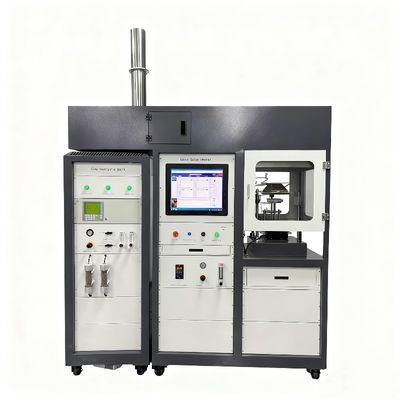

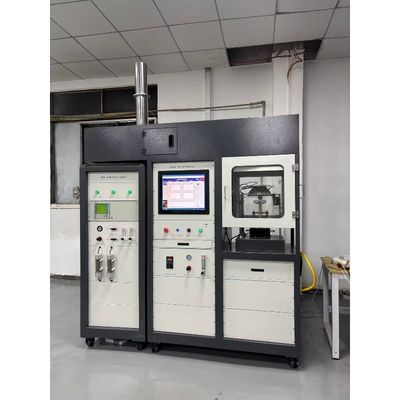

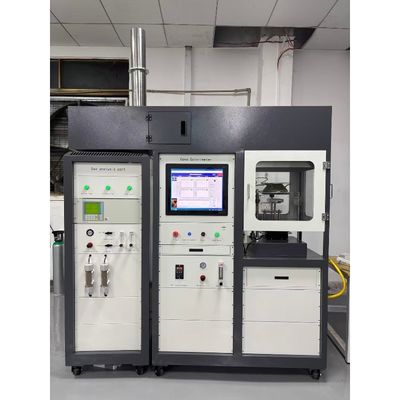

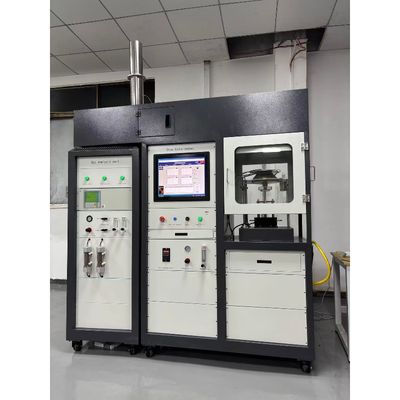

ASTM E1354 BS 476 Cone Calorimeter Equip with Imported Siemens Oxygen Analyzer ISO 5660

Large Image : ASTM E1354 BS 476 Cone Calorimeter Equip with Imported Siemens Oxygen Analyzer ISO 5660

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$32,000

Contact Now

ASTM E1354 BS 476 Cone Calorimeter Equip with Imported Siemens Oxygen Analyzer ISO 5660

Description

Protection Class:	Ip56	Voltage:	110 V, 220 V
Repeatability:	< ±1%	Zero Shift:	≤2%/ Week
Concentration Range:	0 ~ 25%	Signal Output:	4-20mA; RS485
Combustion Chamber Size:	L1680mm×W700mm×H2410mm	Oxygen Measurement Accuracy:	<0.02%
Response Time:	T90≤3.5S	Linearity:	<±0.1% Oxygen
Zero Drift:	≤50 X 10 Within 30 Minutes	Internal Signal Processing:	<1S
Resolution:	100×10	Ambient Temperature:	0-45 °C
Relative Humidity:	<90% (no Condensation)
Highlight:	ASTM E1354 cone calorimeter with Siemens analyzer , BS 476 cone calorimeter lab test machine , ISO 5660 oxygen analyzer calorimeter equipment

ISO 5660 ASTM E1354 BS 476 Cone Calorimeter with Imported Siemens Oxygen Analyzer

The Cone Calorimeter is designed based on oxygen consumption calculated from oxygen concentration in combustion product gas streams and heat release rate of combustion products. This equipment accurately measures material heat release rates during combustion processes, featuring an attractive design and precise testing capabilities. Essential for predicting fire hazards and evaluating flame retardant treatments, it can detect mass loss rate, O₂, CO, CO₂, and heat release rate for all fire and flame retardant materials.

Compliance Standards

Complies with GB/T16172-2007, ISO 5660-1:2002, ASTM E1354, BS 476 PT. 15, and NFPA 264 standards.

Applications

Used for testing smoke production, mass loss rate, gas concentrations (O₂, CO, CO₂), and heat release rate of fire and flame retardant materials under various conditions. Provides correlation analysis data for mathematical models to predict combustion behavior. Widely used by quality inspection units and research institutions for material analysis and heat release property testing.

Key Features

Modular Design: Divided cabinet allows mobility; analysis cabinet can be used independently or connected to larger heat release rate test systems
Integrated System: Combines test body with 19-inch analysis cabinet, embedded with high-performance PC and LCD panel for complete control
Advanced Software: Professional Labview-based interface with high automation, fast response, and user-friendly operation
Comprehensive Calibration: Supports sensor calibration for oxygen, CO₂, CO analyzers, micro pressure difference sensors, and smoke density measurement
Data Recording: Tracks oxygen consumption, gas concentrations, temperature, heat release rates, ignition times, and other critical parameters
Reporting: Generates EXCEL reports with graphical and numerical data presentation, including multi-curve comparisons

System Components

The Cone Calorimeter consists of six main components:

Combustion Chamber: Dimensions 1680×700×2410mm with conical heater, igniter, control circuit, and windshield
Oxygen Analyzer: Siemens paramagnetic analyzer measures oxygen percentage changes during combustion
Load Platform: Precisely records sample mass changes during combustion
Smoke Measurement: He-Ne laser emitter and double electron beam measuring device determine specific extinction area
Ventilation System: Exhausts combustion products from chamber to atmosphere
Auxiliary Equipment: Includes microcomputer processor, server, heat flow meter, and gas removal devices

Radiation Cone

Radiation Shielding Layer

Weighing Equipment

Positioning Rack

Smoke Exhaust System

Calibrating Burner

Technical Specifications

Component	Specifications
Oxygen Measurement	Siemens paramagnetic oxygen gas analyzer (fully imported) Concentration range: 0-25% Measurement accuracy: <0.02% Response time: T90≤3.5S Signal output: 4-20mA; RS485 Linearity <±0.1% Oxygen Zero drift: ≤50×10^-6 in 30 minutes Resolution: 100×10^-6
CO₂ Analyzer	NDIR non-dispersive infrared analyzer Measuring range: 0-10% Accuracy: ±0.1% Response time: <3.5S Repeatability: <±1%
CO Analyzer	Non-dispersive infrared analyzer Measuring range: 0-1% Accuracy: ±0.1% Response time: <3.5S
Smoke Density Analysis	Imported laser system with photodiode, 0.5mW He-Ne laser Optical smoke density meter with halogen lamp (6V, 10W) Lens: 50mm diameter, 60mm focal length Parallel beam diameter: 30mm
