Oil Paint Grinding Stirring Ball Mill Machine High Efficiency Gouache Stirring Laboratory Ball Mill

Large Image : Oil Paint Grinding Stirring Ball Mill Machine High Efficiency Gouache Stirring Laboratory Ball Mill

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Oil Paint Grinding Stirring Ball Mill Machine High Efficiency Gouache Stirring Laboratory Ball Mill

Description

Voltage:	380 V	Power Supply:	7.5KW/380V
Feed Size:	≤20 Mm	Output Granularity:	≤1μm
Protection Class:	Ip56	Rotate Speed:	60-140 Rpm
Volume:	100 L	Load Capacity:	35 L
Model NO.:	LR-A368-100L	Grinding Media:	Stainless Steel, Corundum Ceramic, Polyurethane, Zirconia
Grinding Temperature:	Controllable	Noise Level:	Low
Vibration Level:	Less	Energy Utilization:	High
Granularity Adjustability:	Adjustable By Grinding Time
Highlight:	oil paint grinding ball mill , high efficiency laboratory ball mill , gouache stirring machine lab

Oil Paint Grinding Stirring Ball Mill Machine

High Efficiency Gouache Stirring Laboratory Ball Mill

This stirred ball mill is an ideal equipment for crushing new materials and research painting applications in universities, research centers, and enterprises. It features small batch processing, low power consumption, and affordable pricing.

Product Overview

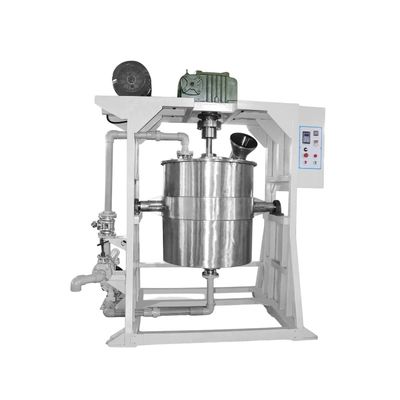

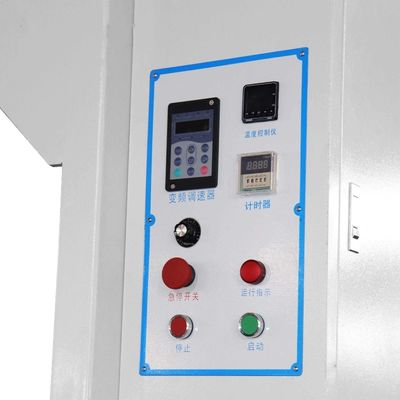

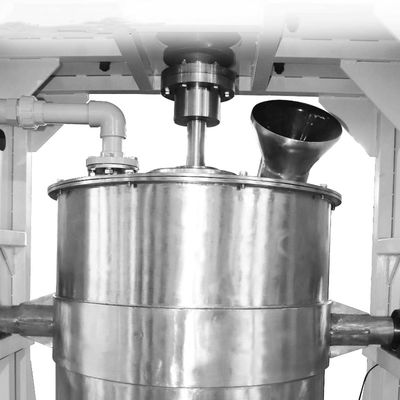

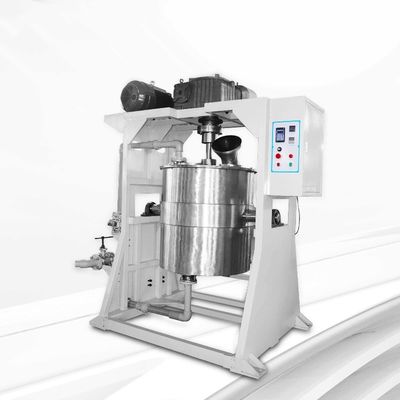

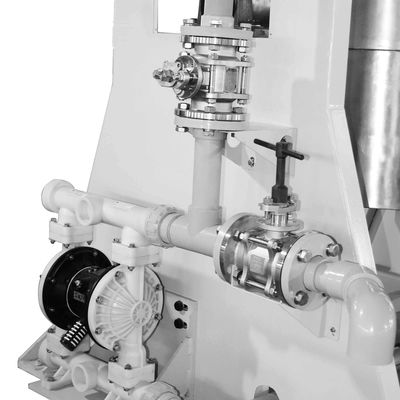

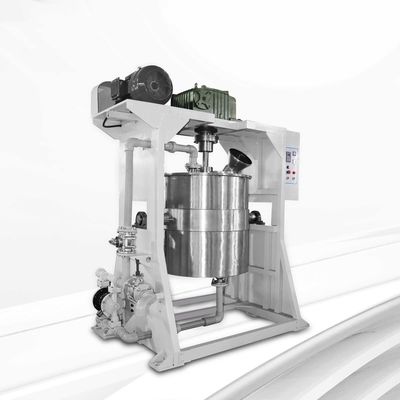

The stirred ball mill consists of a jar with inner grinding media, stirring device, and auxiliary components including recycling device, cooling system, timer, and speed controller. It delivers high efficiency and fine granularity to meet various process requirements.

Working Principle

When operating at high speed, the main axis drives the grinding media to move irregularly, crushing, grinding, and shearing materials into fine powder. Grinding results are affected by media size, shape, and ratio - larger media typically produces finer powder. Optimal performance is achieved through proper media matching and speed adjustment.

Key Features

High energy utilization rate with energy-saving operation
Adjustable granularity through grinding time control
Low vibration and noise levels during operation
Simple structure with easy operation
Supports both continuous and intermittent production
Jacketed jar for precise temperature control
Customizable options including timing, speed adjustment, recycling, and temperature control
Multiple jar material options: stainless steel, corundum ceramic, polyurethane, zirconia

Applications

This light-type stirred ball mill is widely used in various industries including zirconia silicate, zirconia, alumina oxide, ceramics, chemicals, electronic materials, magnetic materials, paper-making, painting, non-metal minerals, new materials, coatings, graphite, and calcium carbonate processing.

Technical Specifications

Model NO.	Rotate Speed (rpm)	Volume (L)	Load Capacity (L)	Power Supply (KW/V)	Feed Size (mm)	Output Granularity (μm)
LR-A368-100L	60-140	100	35	7.5KW/380V	≤20	≤1μm
LR-A368-200L	60-140	200	70	11KW/380V	≤20	≤1μm
LR-A368-300L	60-110	300	100	15KW/380V	≤20	≤1μm
LR-A368-500L	60-90	500	170	18.5KW/380V	≤20	≤1μm
LR-A368-600L	60-90	600	210	22KW/380V	≤20	≤1μm
