ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price

ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price
ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price

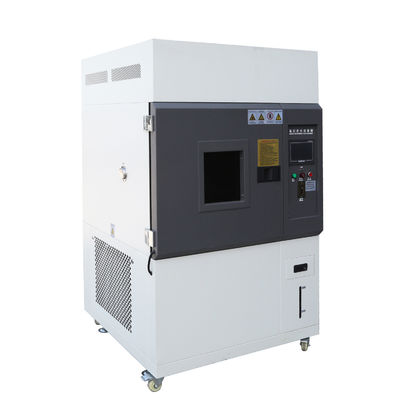

Large Image :  ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price

Description
Inner Box Dimensions: 600×600×600mm (W*D*H) Outer Box Dimensions: 1150×1100×1850mm (W*D*H)
Xenon Lamp Radiation: 0.35 - 0.7 W/m² (340nm) Number Of Lamp Tubes: 2 Units
Lamp Tube Power: 3KW Lamp Tube Lifespan: 1200 Hours
Temperature Range: RT + 10℃ To 70℃ Blackboard Temperature Range: 40℃ To 100℃ (lighting); 25℃ To 85℃ (darkness)
Humidity Range: 30% - 98% RH (darkness); 20% - 60% RH (lighting) Temperature Accuracy: ±0.1℃
Humidity Accuracy: ±1% RH Rainwater Pressure: 0.12~0.15Mpa
Sprinkler Nozzle Diameter: 0.8mm Power Supply: AC380V ± 10%
Protection Class: IP56
Highlight:

ISO 105 xenon lamp weathering chamber

,

air-cooled xenon climate testing chamber

,

ISO 4892 xenon lamp test chamber

ISO 105 Air-cooled Xenon Lamp Weathering Chamber
ISO 4892 Xenon Lamp Climate Testing Chamber
The xenon arc lamp simulates the full solar spectrum to reproduce destructive light waves found in various environments, providing essential environmental simulation and accelerated testing for scientific research, product development, and quality control.
Product Introduction
This chamber evaluates material durability under high-temperature light sources through aging tests on exposed samples. It is widely used in:
  • Automotive, coatings, rubber, and plastics industries
  • Pigments, adhesives, and textiles manufacturing
  • Aerospace, naval, and shipbuilding applications
  • Electronics and packaging industries
Ideal for material selection, modification, and durability evaluation, this chamber accurately simulates sunlight exposure in various environmental conditions.
Compliance Standards
  • GB/T16422.2-2014/ISO 4892-2:2006 (Test conditions)
  • GB/T8430-1998 and ISO 105-B04:1994 (Sun exposure conditions)
Key Features
  • Ventilation Cooling System: Automated temperature control with refrigeration system
  • Precision Control: Wired transmission technology for black standard thermometer
  • Radiation Measurement: Fiber optic transmission for accurate xenon lamp intensity
  • Built-in Timer: Automatic shutdown upon test completion
  • Safety Protection: Automatic lamp shutoff when door opens
Technical Specifications
Parameter Specification
Inner Box Dimensions 600×600×600mm (W×D×H)
Xenon Lamp Radiation Intensity 0.35 - 0.7 W/m² (340nm wavelength)
Lamp Configuration 2 units, 3KW each (≈1200 hours lifespan)
Temperature Range RT +10℃ to 70℃
Humidity Range 30% - 98% RH (darkness); 20% - 60% RH (light on)
Control System Programmable touch screen with PLC technology
Control System Features
  • Precise temperature control with adaptive technology
  • Direct setting and display of all test parameters
  • Intelligent microcomputer control with over-temperature protection
Operating Conditions
  • Environment: 5℃ - 28℃, ≤85% RH
  • Power: AC380V ±10% (three-phase five-wire)
  • Safety: Comprehensive protection systems included
ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price 0
Xenon Lamp Professional Controller
ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price 1
ISO 105 Air-cooled Xenon Lamp Weathering Chamber ISO 4892 Xenon Lamp Climate Testing Chamber Factory Price 2
