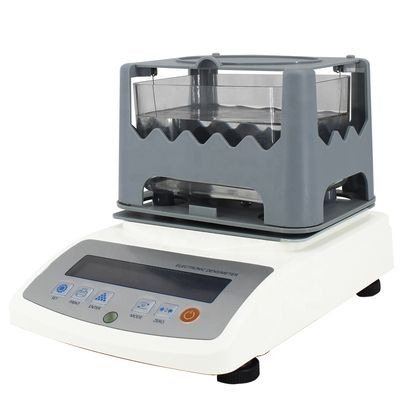

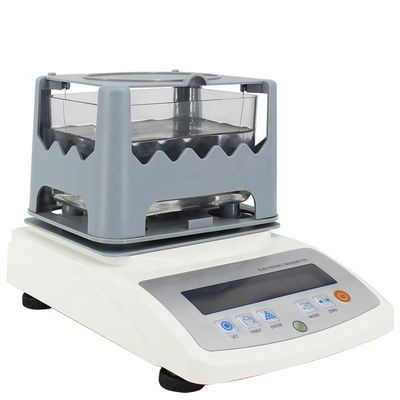

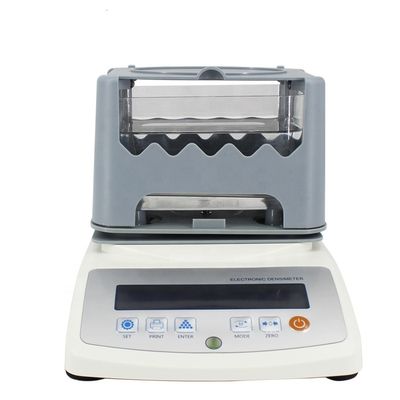

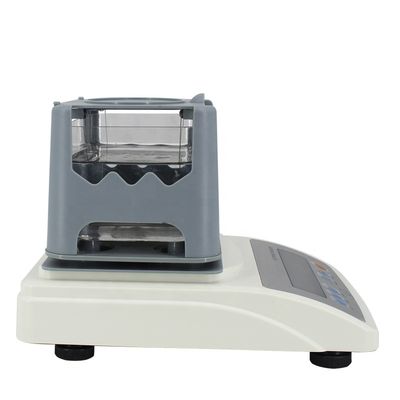

Digital Display Direct Reading Density Meter
Solid Densimeter for Gold | Gold Purity Density Meter
Product Introduction
Our solid densitometer features German HBM high-precision weighing sensors and eliminates the need for binding products to water measuring devices. It provides instantaneous density measurement with multiple methods including saturation measurement, surface covering waterproof treatment, and high viscosity medium liquid methods.
With exceptional measurement precision and reliable data, our densitometer simplifies operation through advanced software functionality. It maintains the reliability of similar products while expanding application possibilities for a broader customer base.
Primary Applications
- Rubber, plastics, wires & cables, electrical appliances
- Sports equipment, tires, glass products, cemented carbide
- New materials research laboratories
- Quality management and cost control
- On-site rapid density detection
Compliance Standards
ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T208, GB/T5163, GB/T 1933
Technical Parameters
| Type |
MDJ-300A |
MDJ-600A |
MDJ-1200A |
MDJ-300S |
MDJ-600S |
| Density Analysis |
0.001g/cm³ |
| Maximum Weight |
300g |
600g |
1200g |
300g |
600g |
| Minimum Weighing |
0.01g |
0.01g |
0.01g |
0.005g |
0.005g |
| Measurement Range |
0.001-99.999 g/cm³ |
Measurement Capabilities
Measures density of any solid form (density >1 or <1) including rubber products, plastic products, metal products, plastic particles, films, floating bodies, powders, foaming bodies, sticky bodies, fasteners, pipes, plates, wood, sponges, glass, metals, cement, gemstones, graphite, coal and rock, ceramics, and similar products.
Key Features
- Direct reading of density and volume measurements with automatic display
- Displays percentage composition of main materials in two-substance mixtures
- Automatic sample qualification determination with alert system
- Automatic zero tracking with buzzer and overload alarms
- Measures porous products including powder metallurgy, magnetic materials, and ceramics
- Works with water or other liquid media
- Adjustable settings for actual water temperature and medium density
- Air buoyancy compensation and density limit functions
- Integrated corrosion-resistant measuring accessories (15.3×10.7×8.0cm)
- Built-in battery for field testing

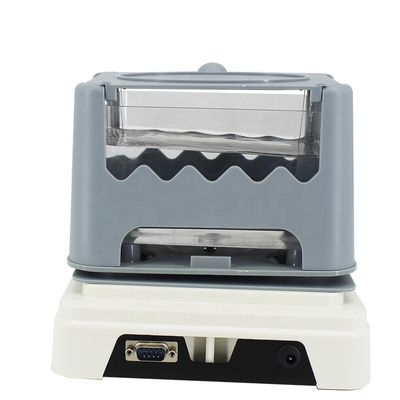

- RS-232C interface for PC/printer connectivity
Standard Accessories
Host unit, water tank, measuring platform, tweezers, power transformer, 100g test weight, particle fittings set, floating body fittings set
Measurement Procedure
- Place product on measuring table and record weight in air (press ENTER)
- Submerge product in water and record weight in water (press ENTER)
- Density value will be displayed automatically
