BGD 152/1S BGD 152/2S Intelligent Touch-screen Rotary Viscometer Rotational Viscosity Meter Tester

Large Image : BGD 152/1S BGD 152/2S Intelligent Touch-screen Rotary Viscometer Rotational Viscosity Meter Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

BGD 152/1S BGD 152/2S Intelligent Touch-screen Rotary Viscometer Rotational Viscosity Meter Tester

Description

Voltage:	220 V	Power Supply:	100V-240V
Weight:	10KG	Dimensions:	308mm×300mm×450mm
Measurement Precision:	±1.0% Of Full Range	Measurement Repeatability:	±0.5% Of Full Range
Rotors:	No.1, No.2, No.3, No.4	Measuring Range:	BGD 152/1S: 10~100,000 MPa.s, BGD 152/2S: 10~2,000,000 MPa.s
Rotate Speed:	BGD 152/1S: 6, 12, 30, 60 R/min, BGD 152/2S: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 R/min	Display Type:	5 Inch Touch Screen
Processor:	ARM Chip	Motor Type:	High Sub-division Stepper Motor
Interface:	RS 232	Temperature Sensor:	Built-in RTD
Material:	PC Material Lifting Pole
Highlight:	touch-screen rotary viscometer , rotational viscosity meter tester , intelligent viscometer with warranty

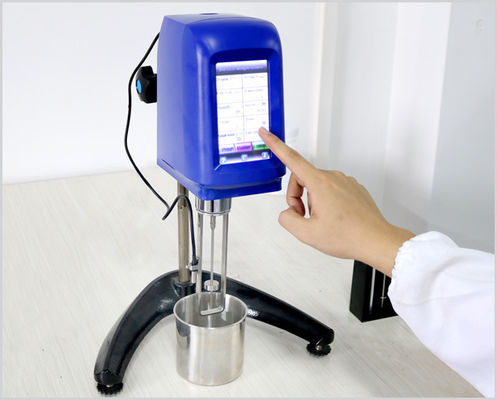

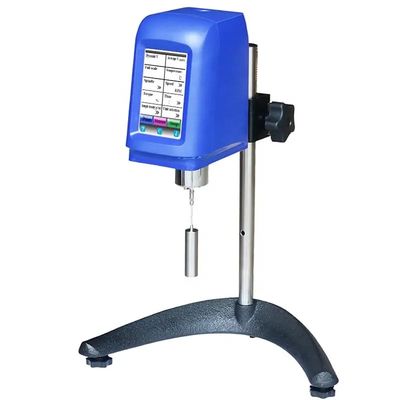

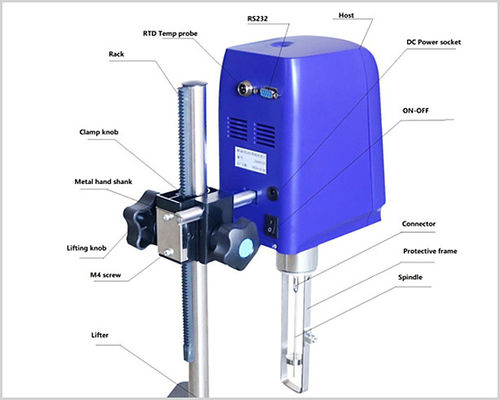

BGD 152/1S BGD 152/2S Intelligent Touch-screen Rotary Viscometer

Advanced Rotational Viscosity Measurement System

The BGD 152 series represents the next generation of digital viscometers, featuring a 5-inch touch screen interface with enhanced human-machine interaction. These precision instruments utilize an MCS-51 series computer to maintain consistent rotation speed and automate the entire testing process. Designed for measuring viscous resistance and absolute viscosity of liquids, they find applications across petrochemical, pharmaceutical, food processing, textile, and research industries.

Key Features

Compact design with exceptional stability, precision, and anti-interference capabilities
Patented Biuged technology enables multiple sampling per rotation cycle
High-precision stepper motor ensures accurate speed control with minimal noise
Timing function for consistent results with thixotropic Non-Newtonian fluids
Direct stepper motor drive allows easy speed changes with clear display
5-inch HD touch screen displays viscosity, speed, torque percentage, and measurement range
Continuous viscosity monitoring with over-range alarm functionality
±1.0% full range precision with computer linear calibration
Universal power supply (100V-240V) with switching adapter
Anti-static housing with PC material lifting pole
ARM chip processor for rapid data processing
Automatic conversion between viscosity units
Built-in RTD temperature sensor for real-time sample monitoring
RS 232 interface for data printing capability

Technical Specifications

Parameter	BGD 152/1S	BGD 152/2S

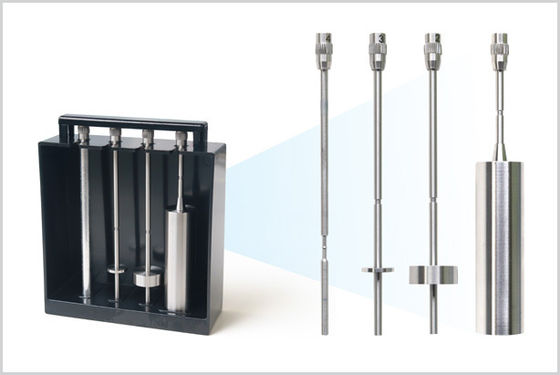

Rotors	Four rotors (No.1, No.2, No.3, No.4)
Measuring Range	10~100,000 mPa.s	10~2,000,000 mPa.s
Rotation Speed	6, 12, 30, 60 r/min	0.3, 0.6, 1.5, 3, 6, 12, 30, 60 r/min
Measurement Precision	±1.0% of full range (Newtonian fluids)
Repeatability	±0.5% of full range (Newtonian fluids)
Power Supply	220V/50Hz
Weight	10 kg
Dimensions (L×W×H)	308mm × 300mm × 450mm

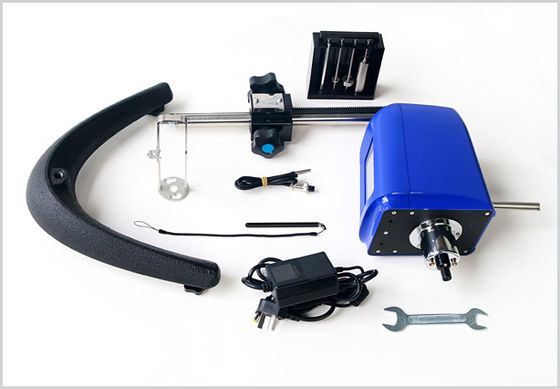

Optional Accessories

THD Series Low Temperature Thermostatic Bath
BGD 1600 Standard Oil (500ml)
BGD 1601 Low Viscosity Adapter (measures 1.0 mPa.s samples)
BGD 1602 Small Sample Adapter (5-18ml capacity)
BGD 1603 Mini Single Color Printer
BGD 1604 RTD Thermometer (-20ºC~120ºC)
BGD 1605 Thermoset (room temperature to +300ºC control)

All specifications subject to change without notice. Contact manufacturer for latest technical details.
