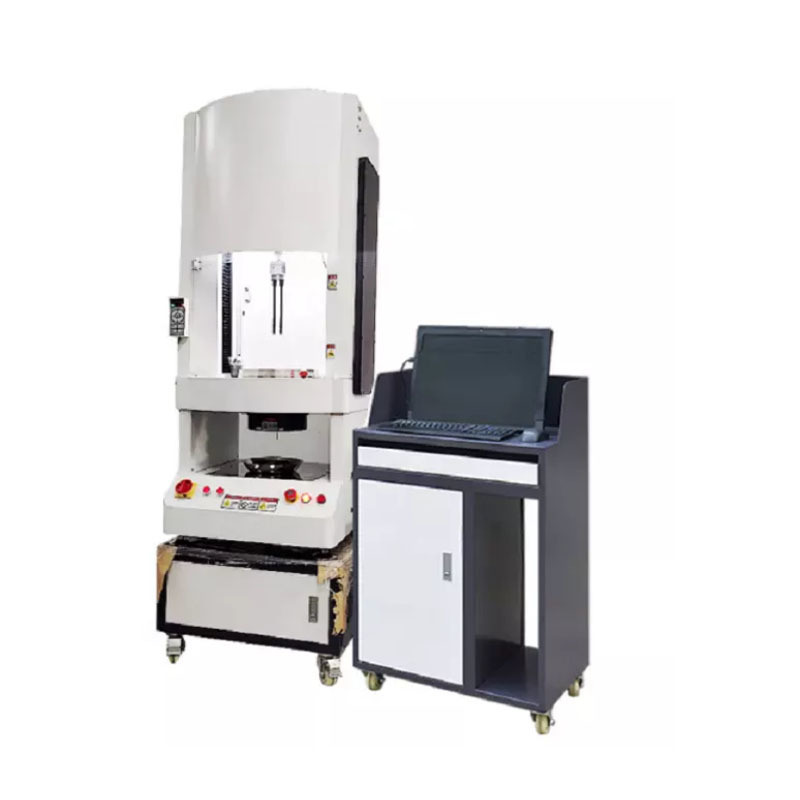

Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter

Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter
Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter

Large Image :  Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter

Description
Power Supply: 1,220V,50/60Hz,8A Voltage: 220 V
Weight: 250 Kg Volume: 60*66*168 Cm
Testing Speed: 0.0005-500 Mm/min Accuracy: < 0.25%
Maximum Test Capacity: 10kN[adjustable], 20kN[adjustable] Dynamic Velocity Ratio: 1:40,000
Maximum Test Temperature: 400°C Temperature Control: PID Control, Resolution 0.1°C, Error <±0.5°C
Cylinder Diameter: 12 Mm (15 Mm, 9.5 Mm Option) Cylinder Length: 200 Mm (Other Lengths Can Be Customized)
Pressure Sensor Capacity: 700 Bar (700 Bar,1400 Bar Optional), 1000 Bar (1400 Bar Optional) Pressure Sensor Material: Stainless Steel, Corrosion Resistance, High Temperature Resistance
Capillary Material: Tungsten Carbide [alloy Material Nickel-chromium Metal]
Highlight:

capillary rheometer for thermoplastic

,

viscosity meter for rheological testing

,

thermoplastic material viscosity tester

Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter
Product Introduction

The LR-1048 series represents the most comprehensive and technologically advanced capillary rheometer for measuring rheological properties of polymer materials across various shear rates and test conditions. Key measurements include:

  • Volume flow rate
  • Rap-apparent shear stress
  • Polymer viscosity
  • Nap-polymer apparent viscosity
  • Sa-room temperature expansion ratio
Key Features
  • High-performance sensors: Advanced high temperature and pressure sensors ensure measurement accuracy
  • Precision drive system: Imported double ball screw drive provides high rigidity and load efficiency
  • Advanced control system: High-precision servo system with rapid response and smooth transmission
  • Superior heating: Rare alloy nickel-chromium metal die-casting for excellent temperature stability
  • Precise temperature control: Imported PID control module with automatic parameter adjustment
  • High-accuracy data acquisition: Equipped with precision force sensors and high sampling frequency
Technical Specifications
Parameter LR-1048-10 LR-1048-20
Maximum test capacity 10kN (adjustable) 20kN (adjustable)
Testing speed 0.0005-500 mm/min
Dynamic velocity ratio 1:40,000
Maximum test temperature 400°C
Temperature control PID control, resolution 0.1°C, error <±0.5°C
Cylinder options Single cylinder
Cylinder diameter 12 mm (15 mm, 9.5 mm option)
Cylinder length 200 mm (custom lengths available)
Test chamber Electronic heating test chamber with extractor cylinder
Pressure sensor 700 bar (1400 bar optional) 1000 bar (1400 bar optional)
Accuracy: < 0.25%
Material: Stainless steel, corrosion and high temperature resistant
Capillary Material: Tungsten carbide (alloy nickel-chromium metal)
Size options: 5/0.5-L=5mm, D=0.5mm; 10/1-L=10mm, D=1mm; 20/1-L=20mm, D=1mm; 30/1-L=30mm, D=1mm; 20/2-L=20mm, D=2mm
Test mode "Constant speed" and "constant pressure" tests
Control software CREE.1048.63 capillary rheology measurement and control system
Dimensions (W×D×H) 60×66×168 cm
Power supply 220V, 50/60Hz, 8A (varies by country)
Weight 250 kg
Cleaning system Pneumatic motor cleaning device with manual cleaning tools
Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter 0
Capillary Rheometer for Thermoplastic Material Testing
Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter 1
Capillary Rheometer Components Detail
