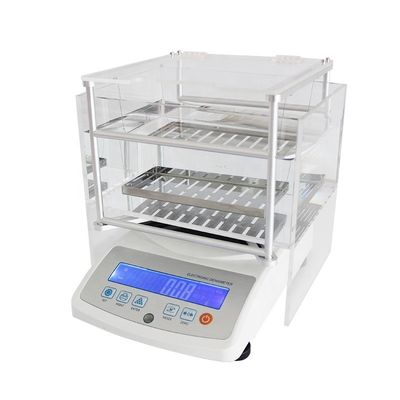

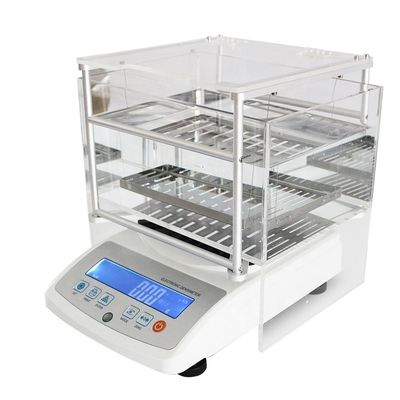

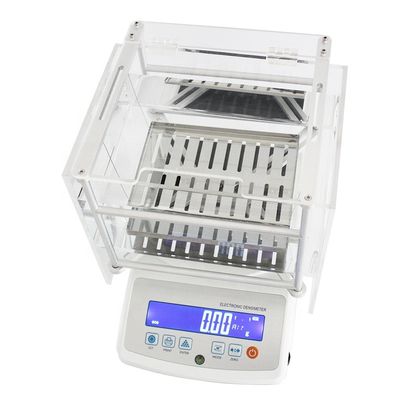

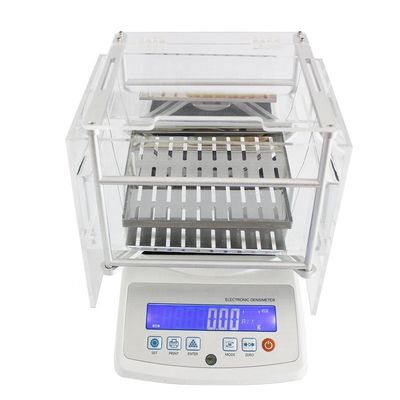

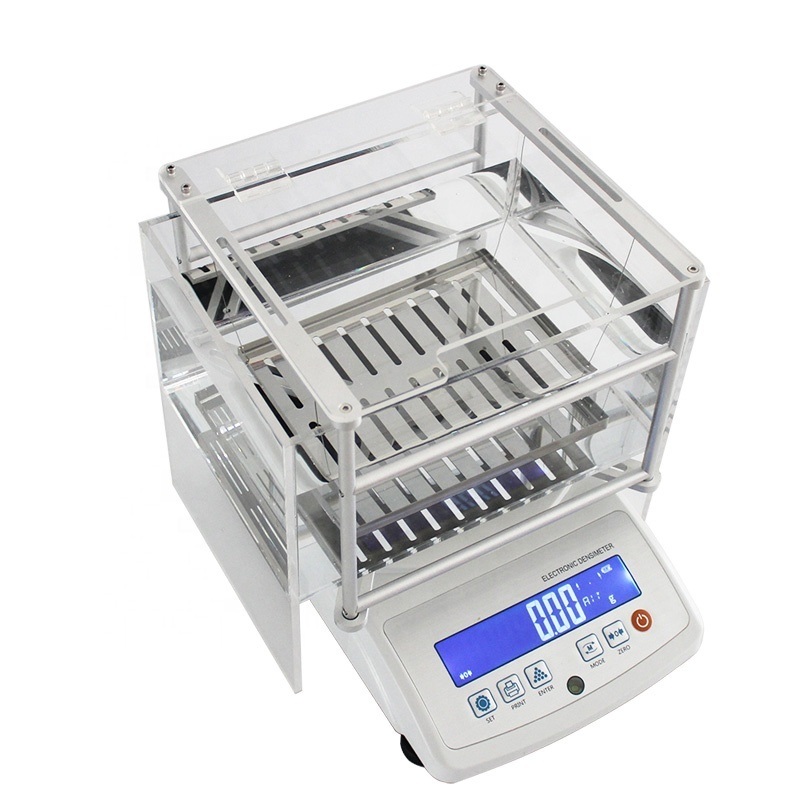

ASTM D792 ASTM D297 Large Range Solid Densitometer

The large-range solid hydrometer is designed for density testing of large products that cannot be broken or cut. Featuring German HBM sensors for enhanced measurement accuracy and reliability, this densitometer provides instant density value display with simple, rapid, and efficient testing procedures ideal for high-precision applications.

Applied Industries: Motor vehicle parts, aerospace components, large machinery parts, seals, rubber/plastics, EVA foaming, shoe soles, metallurgy, calcination, fireproof materials, powder metallurgy, sporting goods, hardware products, hard alloy, precious metal products, key laboratories, and material science research facilities.

Compliant Standards: ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T4196, GB/T4123, GB/T5586, JB/T778.

Additional Specifications:

• Test time: Approximately 5 seconds
• Density range/accuracy: >1 and <1 can be tested
• Display resolution: 0.001g/cm³
• Temperature and solution compensation: Freely adjustable
• Interface: RS-232
• Standard accessories: Weights, transformers, specifications, water tank, measuring support

• Rapid testing of density values for any solid product
• Ideal for larger, heavier products and high-density materials
• Measures both density >1 and <1
• Automatic zero tracking and environmental adjustment
• Compatible with water or other liquid media
• Aluminum alloy measurement accessories with unique large specific gravity platform design
• RS-232C communication interface for PC/printer connectivity (optional XF-68 printer available)
• Internal flume dimensions: 24×17×12cm (usable space: 24×16×10cm)
• Custom large tank and bracket configurations available

1. Measure sample weight in air and press memory key to save
2. Place sample in water basket, press memory key when stable - density and volume display automatically

Note: Free operation video available upon request
