SNB Series Digital Rotational Viscosity Meter Viscometer

SNB Series Digital Rotational Viscosity Meter Viscometer

SNB Series Digital Rotational Viscosity Meter Viscometer

SNB Series Digital Rotational Viscosity Meter Viscometer

SNB Series Digital Rotational Viscosity Meter Viscometer

SNB Series Digital Rotational Viscosity Meter Viscometer

SNB Series Digital Rotational Viscosity Meter Viscometer

Large Image : SNB Series Digital Rotational Viscosity Meter Viscometer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	SNB

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

SNB Series Digital Rotational Viscosity Meter Viscometer

Description

Display Mode:	Liquid-crystal Display	Speed Range:	0.3-60 R/min (SNB-1), 0.1-60 R/min (SNB-2), 0.5-50 R/min (SNB-1A)
Rotor Types:	1#,2#,3#,4# (0# Optional For Ultra Low Viscosity)	Measuring Range:	1~2,000,000 MPa.S (SNB-1), 1~6,000,000 MPa.S (SNB-2), 10-200,000 MPa.S (SNB-1A)
Viscosity Accuracy:	0.01 MPa.S	Measurement Error:	±3% (Newtonian Liquid)
Repetitive Error:	±1.5% (Newtonian Liquid)	Sample Volume:	18ml (standard), 250-400ml (optional)
Timing Function:	Standard Configuration	Temperature Measurement:	Standard Configuration
Power Supply:	110V/60Hz, 220V/50Hz	Dimensions:	300 × 300 × 450 Mm
Data Interface:	Standard Configuration	Ultra Low Viscosity:	0# Rotor Measures Below 15 MPa.S (optional)
Temperature Probe:	0-100°C, 0.1°C Accuracy (optional)
Highlight:	digital rotational viscometer , SNB series viscosity meter , small digital viscometer

SNB Series Digital Rotational Viscosity Meter Viscometer

The SNB Series Digital Rotational Viscosity Meter measures the apparent viscosity of absolute viscosity or non-Newtonian type liquids. The Newtonian type liquid viscometer data processing software can summarize rheological properties of non-Newtonian liquids. Widely used in grease, paint, coatings, textiles, food, slurry, medicine, cosmetics, adhesives, and other fluid or semi-fluid production industries and scientific research units.

Main Features

Measurement data displayed directly on LCD screen without requiring secondary calculations
Utilizes latest international microcomputer drive technology with imported stepper motor for accurate, smooth, and reliable speed control
Advanced switching power supply technology ensures measurement accuracy unaffected by power fluctuations
Convenient level display device located on the front of the viscometer
All ranges display viscosity values accurate to two decimal places (0.01mPa.S)
Timing measurement function for detecting non-Newtonian liquids
Small sample adapters require only 18ml per measurement
Automatic scanning function recommends optimal rotor and speed combinations
Automatically displays maximum viscosity range for selected rotor/speed combination
Print interface for direct connection to micro printers for data output
Optional data processing software records real-time viscosity changes with time, speed, rotor (shear rate), and temperature variations

Technical Specifications

Parameter	SNB-1	SNB-2	SNB-1A
Display Mode	Liquid-crystal display
Speed (r/min)	0.3/0.6/1.5/3/6/12/30/60	0.1/0.3/0.6/1.5/3/6/12/30/60	0.5/1/2/5/10/20/50
Rotor	1#,2#,3#,4# (0# optional for ultra low viscosity below 15)	21,27,28,29#	-
Measuring Range	1~2,000,000	1~6,000,000	10-200000
Sample Size	250-400ml	18ml	-
Viscosity Display Accuracy	0.01mPa.S
Measurement Error	±3% (Newtonian liquid)
Repetitive Error	±1.5% (Newtonian liquid)
Timing Measurement	Standard configuration
Temperature Measurement	Standard configuration
Data Output Interface	Standard configuration
Working Power	110V/60Hz, 220V/50Hz
Dimensions	300 × 300 × 450(mm)

Optional Accessories

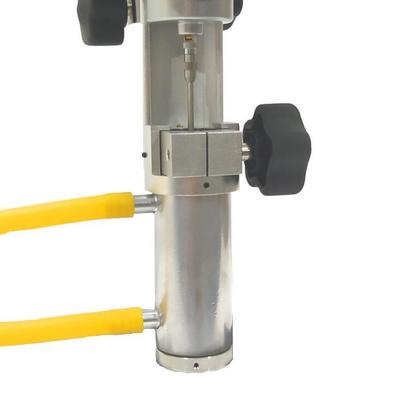

Ultra Low Viscosity Adapter (0# rotor): Set includes rotor, sample bucket, and connecting frame for measuring ultra-low viscosity samples below 15mPa.S. Requires 18-20ml per measurement with 0.1mPa.S accuracy.
Temperature Probe: High precision temperature measuring chip with A/D conversion. Range: 0-100°C with 0.1°C accuracy.
Micro Thermal Printer: Direct connection to viscometer for printing data and curves.

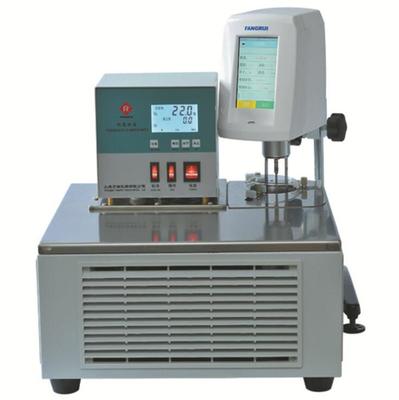

Viscometer Special Thermostatic Bath: For precise temperature control during measurements.

SNB Series Digital Rotational Viscosity Meter Viscometer 0

SNB Series Digital Rotational Viscosity Meter Viscometer 1

SNB Series Digital Rotational Viscosity Meter Viscometer 2

SNB Series Digital Rotational Viscosity Meter Viscometer 3

SNB Series Digital Rotational Viscosity Meter Viscometer 4

SNB Series Digital Rotational Viscosity Meter Viscometer 5
