Xf-20 Powder Vibration Density Meter /density Gauge/densitometer

Large Image : Xf-20 Powder Vibration Density Meter /density Gauge/densitometer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	XF-20

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Xf-20 Powder Vibration Density Meter /density Gauge/densitometer

Description

Amplitude:	1-30mm	Vibration Frequency:	15-280 Taps/min
Counter Range:	0-9999 Times	Power Supply:	AC 110/220V 50/60Hz
Measuring Cylinder:	25mL, 50mL	Vibration Modes:	Continue, Counter
Speed Control:	Adjustable	Detection Method:	Photoelectric Induction
Operation Modes:	Continue, Counter	Height Adjustment:	Adjustable
Vibration Mechanism:	Vertical Vibration	Display Type:	Microcomputer
Printer Type:	Micro Printer	Motor Type:	Adjustable Speed
Power Consumption:	Low
Highlight:	powder vibration density meter , density gauge for powders , small densitometer with warranty

XF-20 Powder Vibration Density Meter / Density Gauge / Densitometer

Product Introduction

The XF-20 Powder Vibratory Density Tester conforms to ISO and GB standards, meeting United States Pharmacopoeia requirements. Featuring simplified operation, adjustable vibration frequency, and three volume scale measuring cylinders, this instrument offers low power consumption with stable, reliable long-term performance.

Vibrational density (or bulk density) is defined as the mass of a sample divided by its volume, including both the sample material and its pore space. This measurement is essential for characterizing catalysts, foaming materials, insulating materials, ceramics, powder metallurgy, and various industrial products.

Applications

Widely used for:

Metal powders, rare metal powders, alloy powders, and metal oxide powders
Non-metallic powders
Industrial materials including soil, dyes, pharmaceuticals, pesticides, abrasives, coatings, food additives, catalysts, and cement
Environmental samples such as river sediment

Compliance Standards

Meets requirements of ASTM B527, D4164, D4781, IDF 134, ISO 787-11, 3953, 8460, 8967, 9161, JIS k581-12-2, Z 2512, GB/T5211.4, MPIF 46, USP<616>Part II, BSIB527, GB/T 21354, 5162, 14853, and indicators in GB/T 5162-2006/ISO3953:1993.

Technical Specifications

Amplitude	1-30mm (adjustable)
Vibration frequency	15-280 taps/min (adjustable)
Counter	0-9999 times with auto power-off
Vibration modes	Continuous or Counter mode
Power supply	AC 110/220V 50/60Hz
Measurement cylinders	25mL and 50mL standard

Operation Instructions

The instrument offers two vibration modes: Continuous (vibrates until power off) or Counter (vibrates until preset count is reached).

Continuous Mode

Turn speed adjustment knob to "O" position, connect control box, then plug in power supply
Adjust height measuring scale to predetermined filling height and lock adjustment button
Place filler in measuring cylinder and secure with fixing ring
Select "Continue" vibration mode
Power on, adjust speed control knob, then press start button
Machine will vibrate continuously until power is turned off

Counter Mode

Turn speed adjustment knob to "O" position, connect timing control box, then plug in power supply
Adjust height measuring scale to predetermined filling height and lock adjustment button
Place filler in measuring cylinder and secure with fixing ring
Select "Counter" vibration mode
Set vibration count (0-999), power on, adjust speed, then press start
Machine will automatically stop when preset count is reached

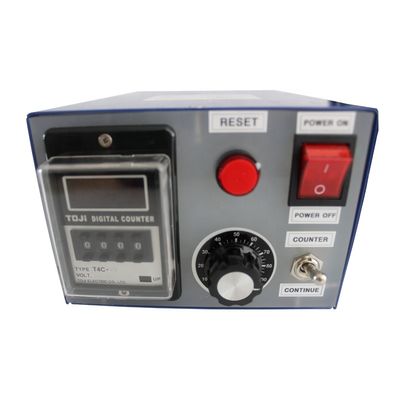

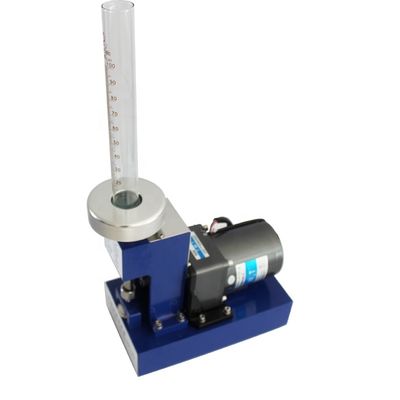

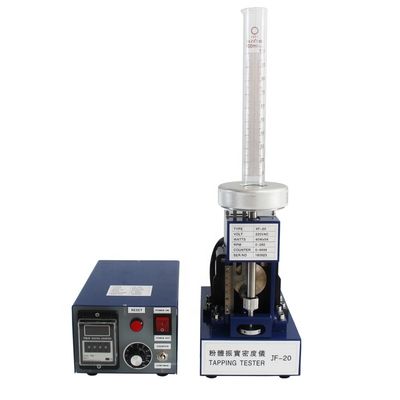

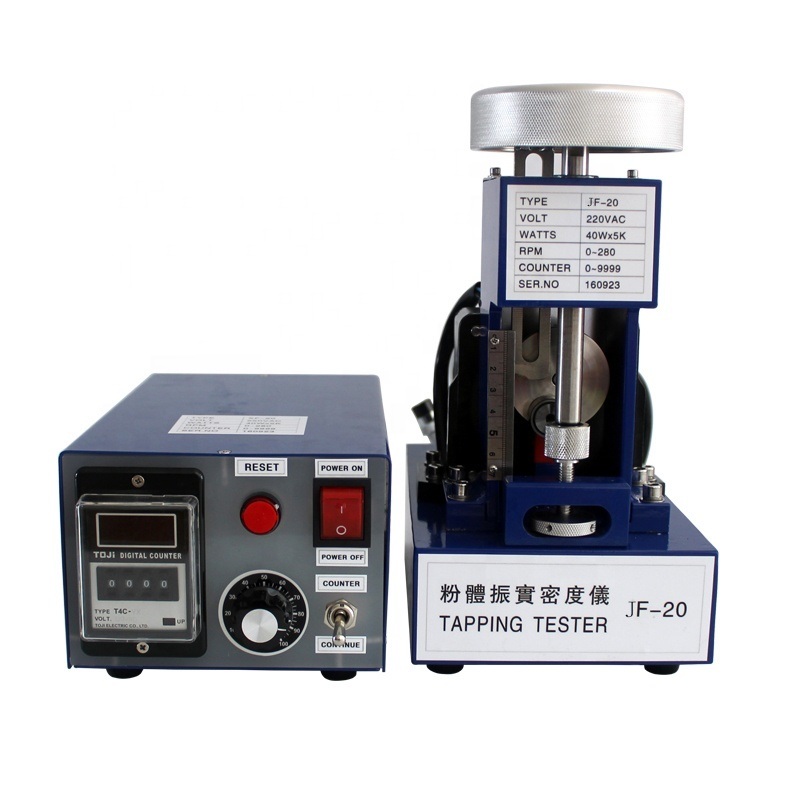

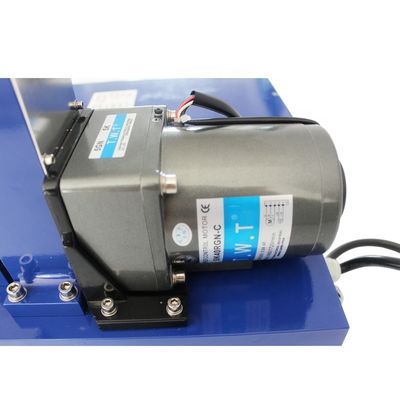

Product Images
