ISO 1409 ISO 6295 Surface Tension Meter

ISO 1409 ISO 6295 Surface Tension Meter
ISO 1409 ISO 6295 Surface Tension Meter ISO 1409 ISO 6295 Surface Tension Meter ISO 1409 ISO 6295 Surface Tension Meter ISO 1409 ISO 6295 Surface Tension Meter

Large Image :  ISO 1409 ISO 6295 Surface Tension Meter

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Model Number: BZY-202
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

ISO 1409 ISO 6295 Surface Tension Meter

Description
Test Method: Platinum Ring Platinum Wire Radius: 0.185mm
Platinum Ring Radius: 9.55mm Platinum Ring Circumference: 60mm
Measuring Mode: Plate Method (optional Ring Method) Operating Mode: Manual Elevating, Automatic Measuring
Measuring Range: 0 To 600 MN/m | 0 To 400 MN/m Sensitivity: 0.1 MN/m | 0.01 MN/m
Repeatability: ≤±0.2 MN/m | ≤±0.1 MN/m Data Display: LCD Screen
Measuring Time: 10s~15s Dimensions: 320×200×340 Mm
Power Supply: 220v Or 110v 50HZ/60HZ Net Weight: 7 Kg | 9 Kg
Temperature Compensation: Optional
Highlight:

ISO 1409 surface tension meter

,

ISO 6295 surface tension tester

,

small surface tension meter

ISO 1409 ISO 6295 Surface Tension Meter
Key Features
  • Platinum ring test method with automatic maximum force value locking
  • Data processing through attached computing software or optional computer interface
  • Standard platinum ring dimensions: wire radius 0.185mm, ring radius 9.55mm, circumference 60mm
  • Compliance with multiple international standards including GB/T 22237-2008, ISO 1409-1995, ISO 6295-1983, and others
  • Automatic measurement to eliminate human error
  • Full range automatic correction with excellent repeatability
  • One-key reset function with stable zero position
  • Manual lifting with automatic measurement capability
  • Independent operation without requiring additional equipment
  • Capability to measure interfacial tension between non-mixed liquids
  • Optional data processing software with real-time curve display and Excel export
  • Special accuracy calibration function using distilled water and pure ethanol standards
  • Temperature automatic compensation function (optional)
  • Multiple temperature control options available
  • Custom solutions available for non-standard requirements
Technical Specifications
Parameter BZY-101 BZY-201
Measuring mode Standard configuration is plate method (optional ring method)
Operating mode Sample disc manual elevating, fully automatic measuring
Measuring range 0 to 600 mN/m 0 to 400 mN/m
Sensitivity 0.1 mN/m 0.01 mN/m
Repeatability ≤±0.2 mN/m (test standard sample) ≤±0.1 mN/m (test standard sample)
Data display Wide visual angle, backlight LCD screen
Measuring time 10s~15s for low viscosity sample
External dimensions 320×200×340 (L×W×H, mm)
Power supply 220v or 110v 50HZ/60HZ
Net weight 7 kg 9 kg
Application Range
  • Ink, printing ink, oil paint industry: analyzing wettability in printing and coating
  • Cleaning agent industry: analyzing absorbing rate and properties of surface activating agents
  • Cosmetic industry: analyzing dispersibility, stability and wettability of emulsions
  • Electroplating industry: quality control of electroplating solutions
  • Pesticide industry: preparing additives and analyzing wettability
  • Petroleum industry and auxiliary agent industry
Understanding Surface Tension
Surface tension is a fundamental property of liquids resulting from molecular cohesive forces (Van Der Waals forces). Molecules at the liquid surface experience unbalanced inward forces, creating a tension that minimizes surface area. In thermodynamics, surface tension represents the force that minimizes surface energy in a system, measured as free energy per unit area (J/m²) or equivalently as force per unit length (N/m).
This phenomenon explains common observations like water droplets on leaves or the curved meniscus in a glass. The ISO 1409 ISO 6295 Surface Tension Meter precisely measures this critical property for industrial and scientific applications.
ISO 1409 ISO 6295 Surface Tension Meter 0

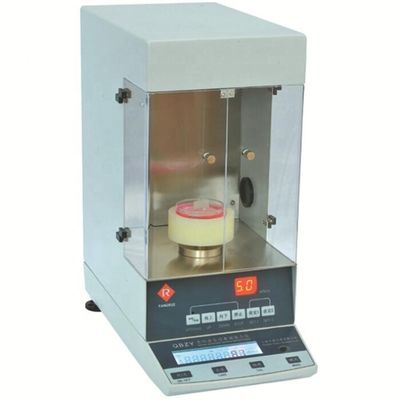

ISO 1409 ISO 6295 Surface Tension Meter - Front View
ISO 1409 ISO 6295 Surface Tension Meter 1

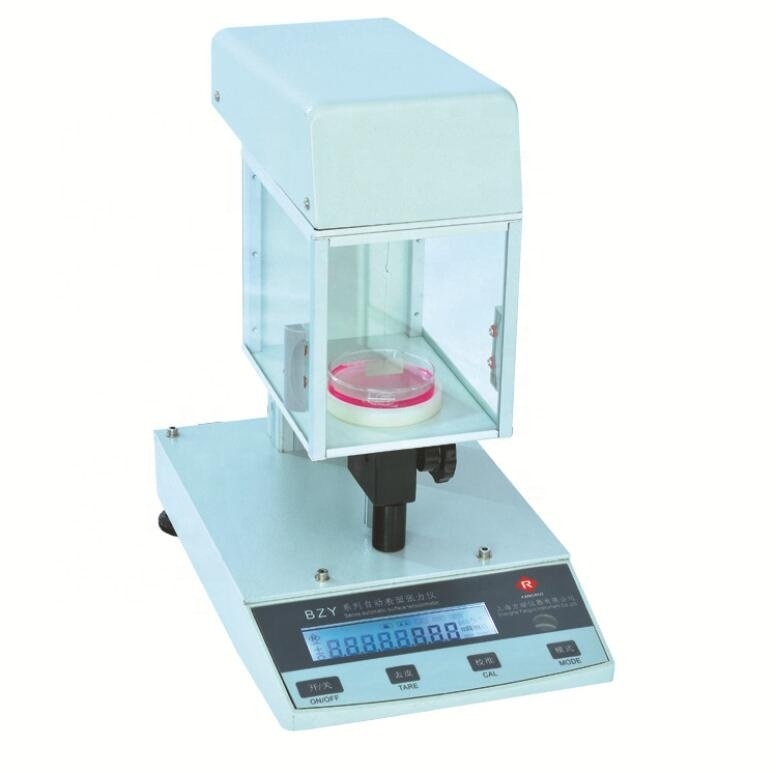

Precision Platinum Ring Measurement Component
ISO 1409 ISO 6295 Surface Tension Meter 2

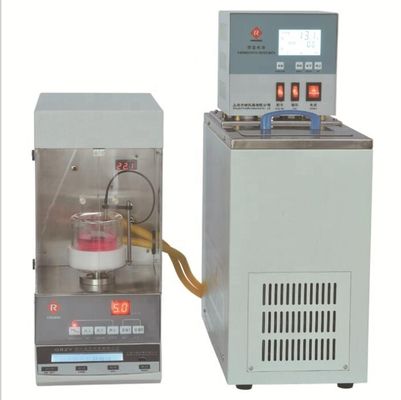

Surface Tension Meter in Laboratory Application
ISO 1409 ISO 6295 Surface Tension Meter 3

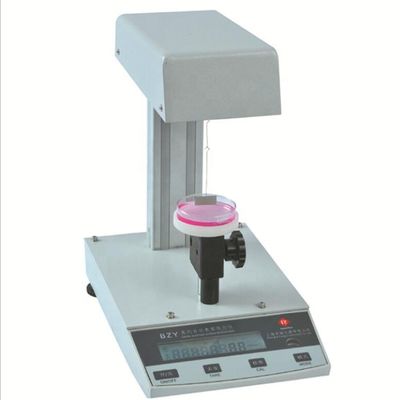

Measurement Interface and Control Panel
