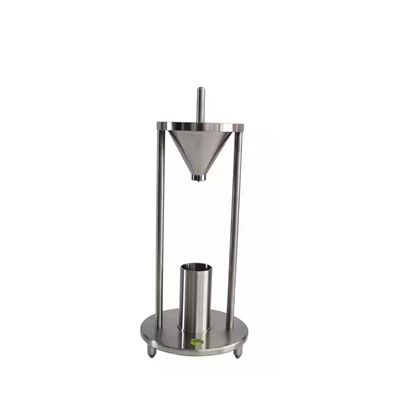

Chemical Powder Bulk Density Meter Natural Bulk Density Meter

Large Image : Chemical Powder Bulk Density Meter Natural Bulk Density Meter

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	lonroy
Model Number:	XF-16913

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$380

Contact Now

Chemical Powder Bulk Density Meter Natural Bulk Density Meter

Description

Funnel Material:	Stainless Steel	Funnel Taper:	60°±0.5
Funnel Outlet Diameter:	12.7mm	Measuring Cup Volume:	100 Ml
Measuring Cup Material:	Stainless Steel	Measuring Cup Inner Diameter:	Φ 39 Mm
Blocking Rod Material:	Stainless Steel	Scraper Material:	Stainless Steel
Measurement Range:	Dust Accumulation Density	Measurement Accuracy:	Difference < 1g Between Measurements
Measurement Method:	Variational Funnel Method	Standard Compliance:	GB/T 16913.3-2008
Applicable Powders:	Metal, Nonmetal, Chemical Powders	Measurement Steps:	5-step Process
Standard Configuration:	Densitometer, Plug Rod, Cylinder, Measuring Cup, Scraper, Brush
Highlight:	chemical powder bulk density meter , natural bulk density meter , small bulk density meter

Chemical Powder Bulk Density Meter / Natural Bulk Density Meter

Product Introduction

The natural bulk density meter (variational funnel method) is designed and produced in accordance with the national standard GB/T 16913.3-2008 for determination of dust accumulation density.

Widely used for testing accumulation density of various powders including:

Metal powders (powder metallurgy, magnetic materials, alloys)
Non-metal powders (abrasives, coatings)
Chemical powders
Food industry powders (milk powder, food additives)

Measurement Principle

Dust falls freely from the funnel to fill the measuring cup at a specified height. The mass of dust per unit volume in the measuring cup under loose loading condition is measured, determining the dust accumulation density.

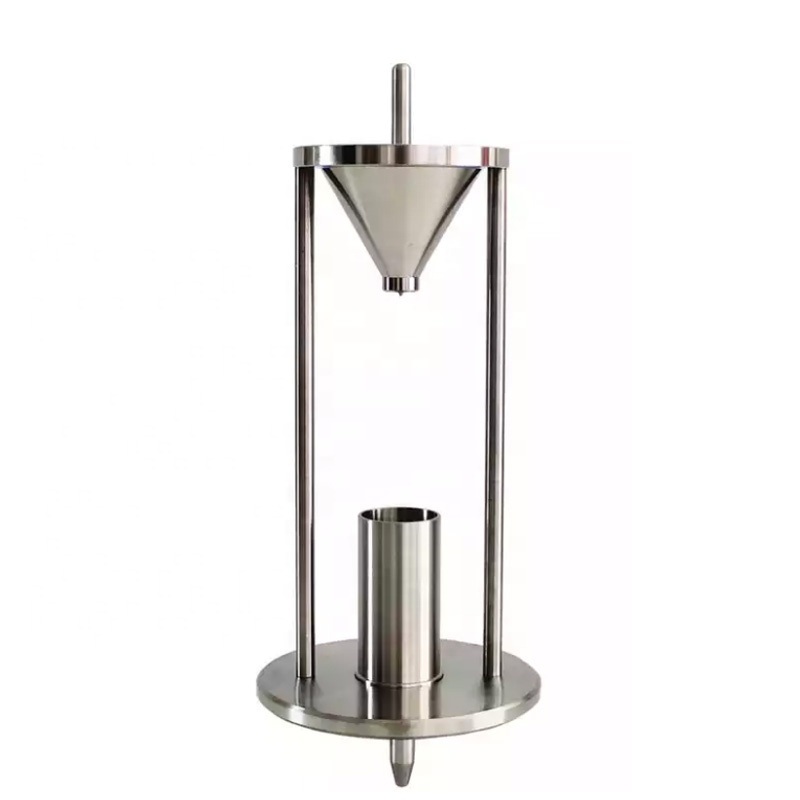

Instrument Structure

Component	Specifications

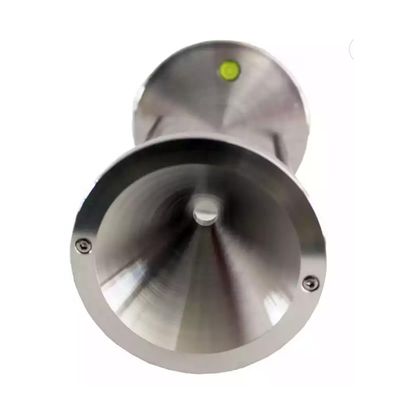

Funnel	Stainless steel construction with 60°±0.5 taper angle, 12.7mm flow outlet diameter
Blocking rod	Stainless steel, prevents dust from falling during loading

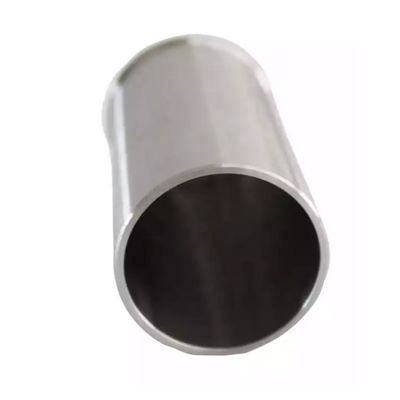

Measuring cup	100ml stainless steel cup with Φ39mm inner diameter
Scraper	Stainless steel, removes excess dust from funnel

Measurement Procedure

Weigh empty measuring cup (m1)
Load powder into funnel with blocking rod in place
Release blocking rod, allowing powder to fill measuring cup
Level excess powder with scraper and weigh filled cup (m2)
Calculate density: (m2-m1)/V (V = 100cm³ corrected volume)

Note: Perform three consecutive measurements. The difference between maximum and minimum values should be <1g. Use the average of valid measurements as final result.

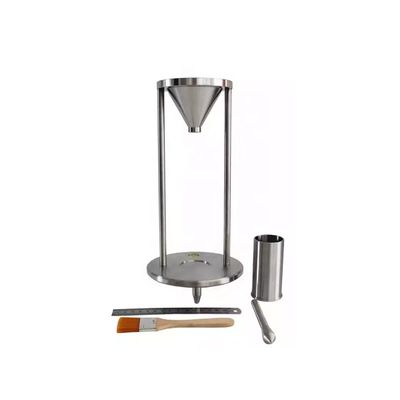

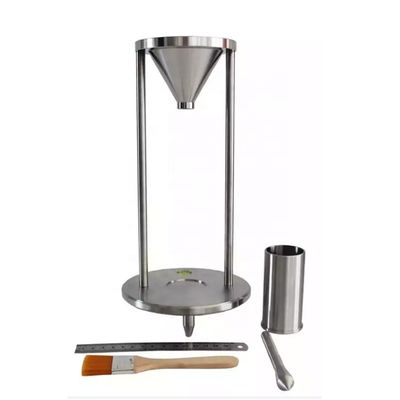

Standard Configuration

Densitometer main unit, plug rod, cylinder, measuring cup, scraper, brush
