Constant Temperature Water Baths/thermostatic Oil Bath

Large Image : Constant Temperature Water Baths/thermostatic Oil Bath

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	CH1506

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Constant Temperature Water Baths/thermostatic Oil Bath

Description

Temperature Range:	RT+15~150℃	Temperature Fluctuation:	100℃≤±0.1℃, >100℃≤150℃≤±0.2℃ (≤50mPa.s Low Viscosity Silicone Oil)
Temperature Control:	PID Adjust	Display Resolution:	0.1℃
Tank Volume:	6L	Opening Size:	145×145×150mm (L×W×D)
Circulation Type:	Inner Circulation	Pump Flow:	10L
Power:	1.8KW	Outer Size:	190×340×365mm (L×W×D)
Control Type:	Microcomputer PID	Sensor Type:	Imported Temperature Sensor
Stirring Motor:	Imported, Low Noise	Display Type:	Large-screen Backlit LCD
Material:	High-quality Stainless Steel
Highlight:	constant temperature water bath , thermostatic oil bath , small meter water bath

Constant Temperature Water Baths/Thermostatic Oil Bath

Product Overview

The CH series microcomputer temperature control constant temperature oil bath features advanced single-chip microcomputer control with self-tuning PID regulation. It utilizes imported temperature sensors for precise measurements, ensuring high temperature control accuracy with minimal fluctuation. Equipped with an imported stirring motor for quiet operation and long service life, this unit features a large-screen backlit LCD display for clear parameter visualization.

Key Features

High-performance single-chip microcomputer control with PID regulation and self-tuning technology
Precise temperature control with short stabilization time
Broken couple protection function prevents instrument runaway
Upper limit over-temperature alarm with adjustable settings
Stable and reliable operation with user-friendly controls
Large-screen backlit LCD display with clear parameter visualization
High-quality stainless steel construction for corrosion resistance and easy cleaning

The CH 3006 constant temperature (oil bath) is widely used in biological engineering, medicine, food, chemical, metallurgical, chemical analysis, and petroleum industries. It provides researchers with a high-precision, controlled, uniform temperature field source, making it an ideal constant temperature device for research institutes, universities, factory laboratories, and quality inspection departments.

Technical Specifications

Model	CH1506
Temperature Range	RT+15~150°C
Temperature Fluctuation	≤±0.1°C at 100°C, ≤±0.2°C above 100°C (with ≤50mPa.s low viscosity silicone oil)
Temperature Control Mode	PID Adjust
Display Resolution	0.1°C
Tank Volume	6L
Opening Size	145×145×150mm (L×W×D)
Circulation Method	Inner circulation
Pump Flow	10L
Power	1.8KW
Overall Dimensions	190×340×365mm (L×W×D)

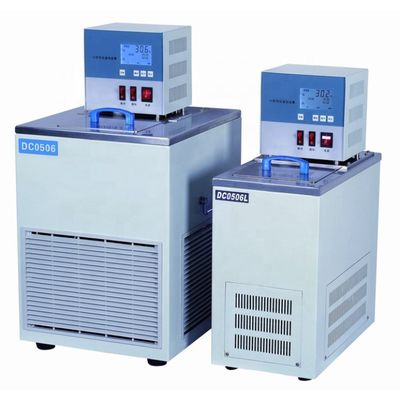

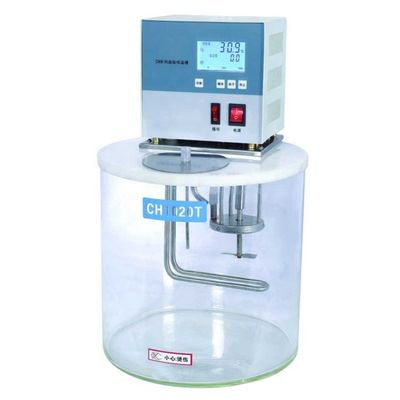

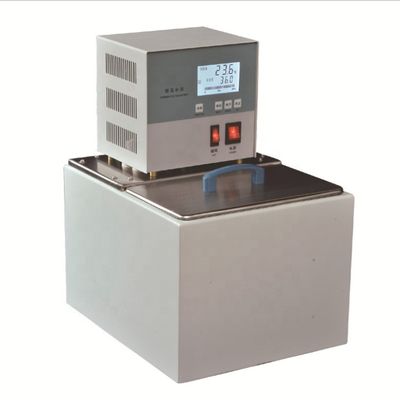

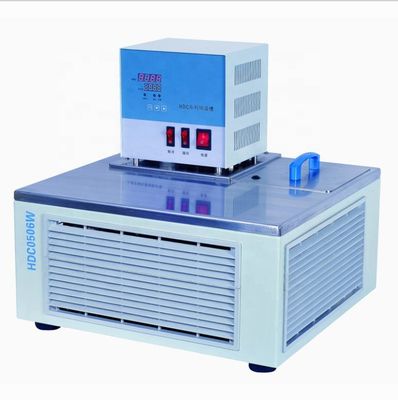

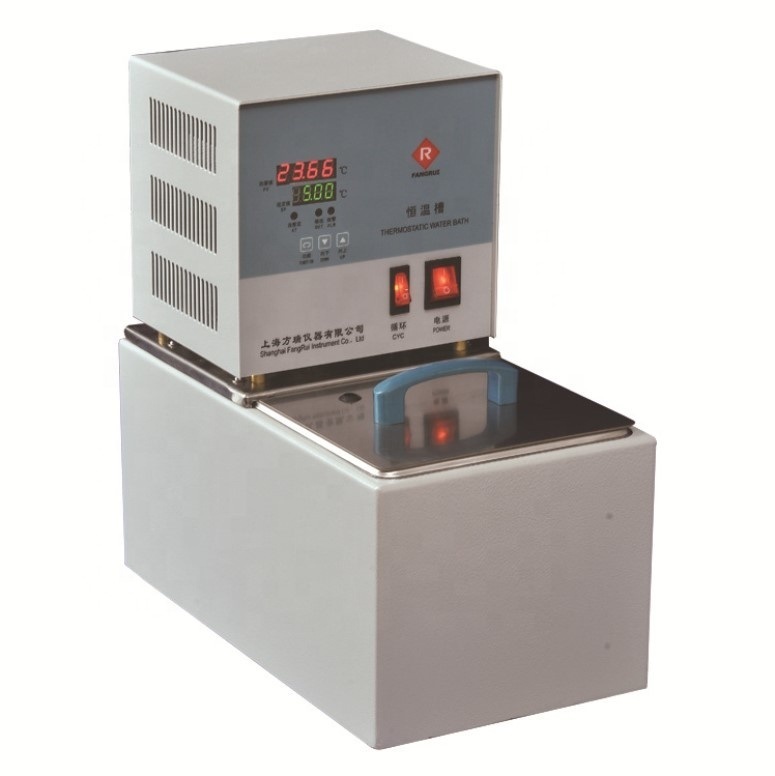

Product Images

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
