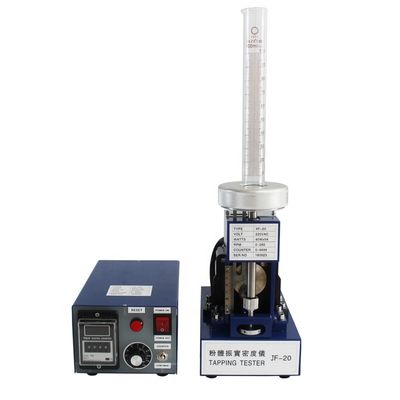

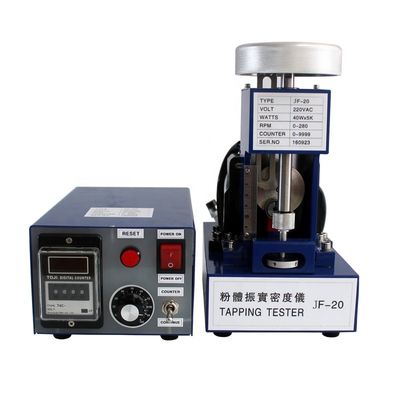

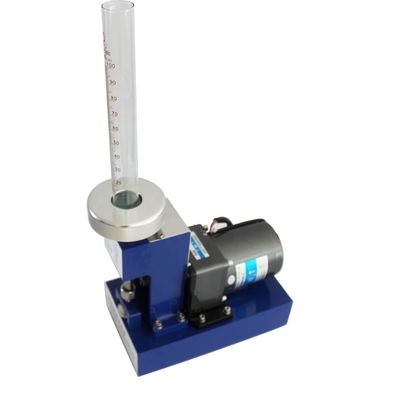

Tapping Apparatus Vibrating Type Densimeter Density Meter Analyzer for Powder
Product Introduction
The powder vibratory density tester conforms to ISO and GB standards, meeting United States Pharmacopoeia requirements. Featuring simplified operation, adjustable vibration frequency, and three volume scale measuring cylinders, this instrument offers low power consumption with stable, reliable long-term operation.
Vibrational density (volume density or loose density) is defined as the mass of the sample divided by its volume, including the sample itself and its pore space. Bulk density is essential for characterizing:
- Catalysts and foaming materials
- Insulating materials and ceramics
- Powder metallurgy products
- Various industrial powders
Applications: Metal powders, rare metal powders, alloy powders, metal oxide powders, non-metallic powders, soils, dyes, pharmaceuticals, pesticides, abrasives, coatings, food additives, catalysts, cement, and river sediments.
Compliance: ASTM B527, D4164, D4781, IDF 134, ISO 787-11, 3953, 8460, 8967, 9161, JIS k581-12-2, Z 2512, GB/T5211.4, MPIF 46, USP<616>Part II, BSIB527, GB/T 21354, 5162, 14853.
Technical Specifications
| Parameter |
Specification |
| Amplitude |
1-30mm (adjustable) |
| Vibration frequency |
15-280 taps/min (adjustable) |
| Counter |
0-9999 times with auto power off |
| Vibration modes |
Continue and Counter modes |
| Power supply |
AC 110/220V 50/60Hz |
| Detection method |
Photoelectric induction |
| Measuring cylinders |
25mL and 50mL standard |
Operation Steps
The density tester offers two vibration modes: Continue mode (vibrates until power off) and Counter mode (vibrates until preset count is reached).
Continue Mode Operation
- Turn speed adjusting button to "O", connect machine to control box, then connect power supply
- Adjust height measuring scale to predetermined filling height and lock adjustment button
- Place filler into measuring cylinder and secure with fixing ring
- Select "Continue" vibration mode
- Turn on power, adjust speed control button, then press start button
- Machine will vibrate continuously until power is turned off
Counter Mode Operation
- Turn speed adjusting button to "O", connect machine to timing control box, then connect power supply
- Adjust height measuring scale to predetermined filling height and lock adjustment button
- Place filler into measuring cylinder and secure with fixing ring
- Select "Counter" vibration mode
- Set vibration count (0-999 times), turn on power, adjust speed, then press start
- Machine will automatically stop when preset count is reached
