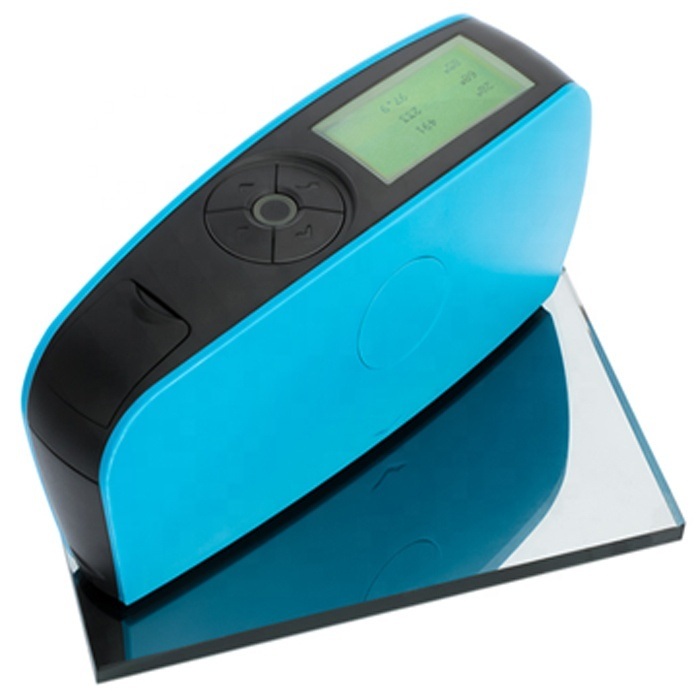

WGG-20/60/85 Three-angle Gloss Meter,Glossmeter for Paint Marble

WGG-20/60/85 Three-angle Gloss Meter,Glossmeter for Paint Marble
WGG-20/60/85 Three-angle Gloss Meter,Glossmeter for Paint Marble

Large Image :  WGG-20/60/85 Three-angle Gloss Meter,Glossmeter for Paint Marble

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Model Number: WGG-20/60/85
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

WGG-20/60/85 Three-angle Gloss Meter,Glossmeter for Paint Marble

Description
Measuring Angle: 20°/60°/85° Measuring Spot: 20°:9X10mm, 60°:9X15mm, 85°:5X38mm
Measuring Span: 20°:0~2000GU, 60°:0~1000GU, 85°:0~160GU Division Value: 0.1GU
Measurement Pattern: Basic Mode, Statistical Mode, Continuous Mode, Quality Tube Mode Measuring Time: 0.5 Seconds Per Angle
Repeat Accuracy: 0~100GU:±0.2GU; 100~2000GU:±0.2%GU Automatic Shutdown: 30~120 Seconds
Data Storage: 35,000 Pieces Display Screen: 2.3 Inch Black And White
Dimensions: 160X52X84mm Weight: Approx. 300g
Power Supply: 1x AA Battery Or USB Interface: USB, Bluetooth®2.1
Operating Temperature: 0~40℃
Highlight:

three-angle gloss meter for paint

,

glossmeter for marble surfaces

,

small gloss meter with warranty

WGG-20/60/85 Three-angle Gloss Meter

Professional glossmeter for measuring paint, marble, and various industrial surfaces with high precision and multiple measurement angles.

Product Specifications
Model WGG-20/60/85 three-angle gloss meter
Measuring Angles 20°/60°/85°
Measuring Spot (mm) 20°: 9×10
60°: 9×15
85°: 5×38
Measuring Range 20°: 0~2000GU
60°: 0~1000GU
85°: 0~160GU
Division Value 0.1GU
Measurement Patterns Basic mode, statistical mode, continuous mode, quality tube mode
Measurement Time 0.5 seconds per angle
Repeat Accuracy 0~100GU: ±0.2GU
100~2000GU: ±0.2%GU
Accuracy Meets JJG 696 level 1 working gloss tester requirements
Display 2.3 inch black and white display
Dimensions 160×52×84mm
Weight Approx. 300g (including calibration box and battery)
Key Features
  • Measures glossiness of paint, ink, coating, paper, printing, plastic, electronics, furniture, ceramics, electroplating, hardware, and marble
  • Automatic calibration with manual override option
  • Multiple language support (Simplified Chinese, English, Traditional Chinese)
  • Extensive data storage capacity (35,000 measurements total)
  • Multiple power options: AA battery (10,000+ measurements) or USB power
  • USB and Bluetooth® 2.1 connectivity
  • Includes GQC6 quality management software for data analysis and reporting
Environmental Specifications
Operating Temperature 0~40℃ (32~104°F)
Storage Temperature -20~50℃ (-4~122°F)
Humidity Less than 85%RH, no condensation
Standard Equipment
  • USB data cable
  • User manual
  • GQC quality management software (download or provided after sale)
  • Calibration board
Optional Accessories

Mini printer available as optional accessory

WGG-20/60/85 Three-angle Gloss Meter,Glossmeter for Paint Marble 0 WGG-20/60/85 Three-angle Gloss Meter,Glossmeter for Paint Marble 1
Note: Technical parameters are for reference only, subject to the actual sale of the product.
