DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518

DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518
DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518 DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518 DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518 DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518 DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518 DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518

Large Image :  DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518

Product Details:
Place of Origin: Guangdong, China
Brand Name: lonroy
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518

Description
Accuracy: 0.001 Power: 500
Voltage: 220 V Protection Class: IP55
Thermal Conductivity Range: 0.0001 ~ 1W/mk Measurement Accuracy: 1%
Sample Size: 50×50 ~ 150×150 (mm) Sample Thickness: ≤50mm
Measurement Time: 15 ~ 20min Hot Surface Temperature: Room Temperature ~ 99.9℃
Cold Surface Temperature: 0 ~ 99.9℃ Temperature Control Accuracy: 0.1℃
Pressure Range: 0 ~ 1000N Pressure Resolution: 0.1N
Thickness Resolution: 0.1um
Highlight:

benchtop thermal conductivity tester

,

high precision heat flow meter

,

material thermal analyzer ASTM C518

DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518
Product Overview

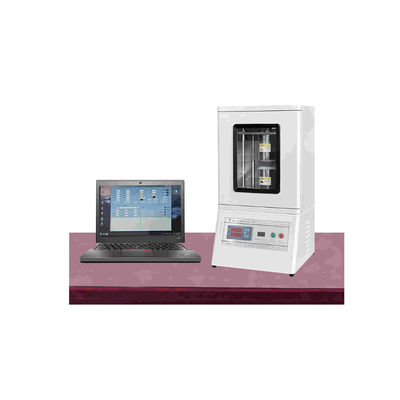

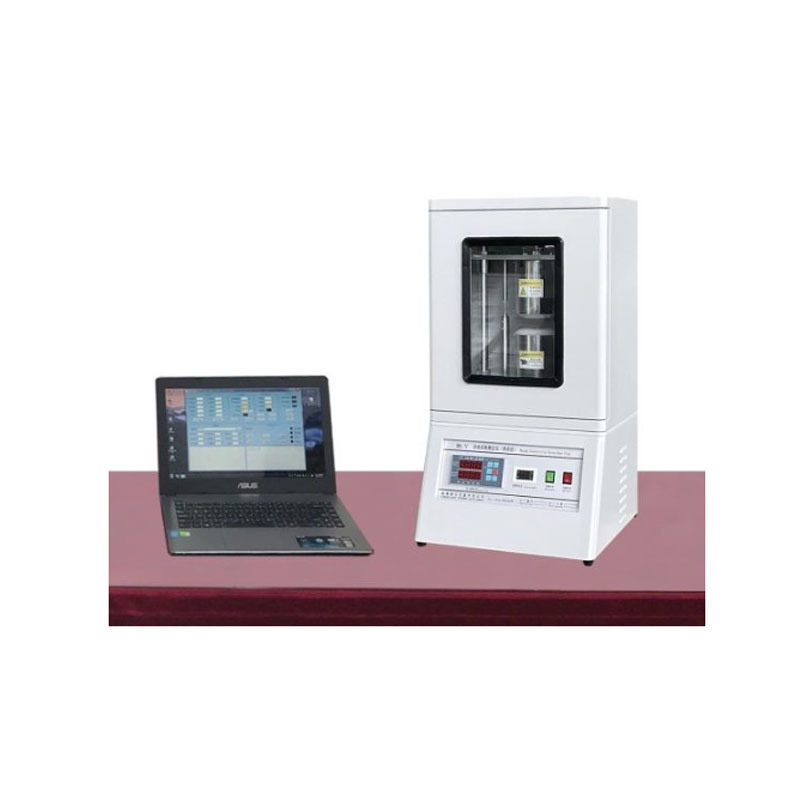

The DRPL-VIII Benchtop high precision material thermal conductivity tester utilizes the internationally recognized heat flow meter method to measure thermal conductivity and thermal resistance. This computer-controlled system provides automated detection and generates comprehensive test reports.
Key Features
  • Applies stable hot surface temperature to sample side, measuring heat transfer to cold surface
  • Utilizes imported sensors and advanced computer technology for exceptional measurement accuracy
  • Excellent reliability and repeatability, with precision down to 0.1mw
  • Ideal for testing low thermal conductivity materials including plastics, rubber, insulation materials, aerogel plates, and vacuum glass
  • Widely used in universities, research institutes, quality inspection agencies, and industrial facilities
  • Complies with GB/T10295-2008 and ASTM C518 standards
Technical Specifications
Parameter Specification
Thermal Conductivity Range 0.0001 ~ 1W/mk (accurate to 0.1mw/mk) or 0.001 ~ 300W/mk
Measurement Accuracy 1%
Sample Size 50×50 ~ 150×150mm (max thickness: 50mm)
Measurement Time 15-20 minutes
Hot Surface Temperature Room temperature ~ 99.9℃ (standard), up to 499.9℃ available
Cold Surface Temperature 0 ~ 99.9℃ (standard), -10 ~ 99.9℃ available
Sample Clamping Computer-controlled precision pressure (0-1000N, resolution 0.1N)
Sample Thickness Measurement 0-50mm, resolution 0.1um
Standard Configuration
  • Main unit
  • Analysis software (Chinese/English versions)
  • HX-1005 precision low temperature constant temperature tank (0.01℃ accuracy)
  • Lenovo computer (optional)
  • Standard sample
Dimensions & Weight
  • Main unit: 500×400×780mm (L×W×H), 60kg
  • Constant temperature tank: 300×350×530mm, 35kg
Technical Support
  • 1-year free warranty
  • Lifetime technical support and software upgrades
  • Free nationwide installation and on-site debugging
  • Mobile technical personnel available throughout the country
DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518 0
DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester
DRPL-VIII Benchtop High Precision Material Thermal Conductivity Tester Plate Heat Flow Meter ASTM C518 1
