DRS-III High Temperature Thermal Conductivity Tester Measurement Testing Machine Heat Conduction Sensor

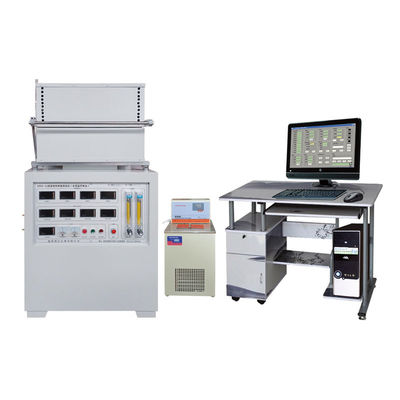

Large Image : DRS-III High Temperature Thermal Conductivity Tester Measurement Testing Machine Heat Conduction Sensor

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	lonroy

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

DRS-III High Temperature Thermal Conductivity Tester Measurement Testing Machine Heat Conduction Sensor

Description

Accuracy:	0.001	Power:	8kw
Protection Class:	IP55	Voltage:	220 V, 380 V
Test Range:	0.001 ~ 3W/m.K	Sample Groups:	1 ~ 3 Pieces
Sample Thickness:	10 ~ 100mm	Sample Size:	≤230230100 (mm)
Test Accuracy:	Better Than 3%	Test Temperature:	Up To 1350ºC
Power Supply:	380V, 8KW	Thermal Conductivity:	0.001 ~ 3W/m.K
Max Temperature:	1350ºC	Sample Shape:	Square Body
Computer Interface:	Automatic Test
Highlight:	high temperature thermal conductivity tester , heat conduction sensor machine , thermal analyzer with warranty

DRS-III High Temperature Thermal Conductivity Tester

Measurement Testing Machine Heat Conduction Sensor

Product Description

The thermal conductivity of materials is a crucial parameter for studying material physical properties. The DRS-III tester is designed for measuring thermal conductivity of various materials at high temperatures, making it essential for industries including aviation, atomic energy, construction materials, and non-metallic materials.

Applications

Testing thermal conductivity of refractory insulation materials
Measuring ceramic fiber, felt, textile, board, and brick materials
Conforms to standards: YB/T4130-2005 and GB/T17911

Technical Specifications

Parameter	Specification
Test Range	0.001 ~ 3W/m.K
Number of Sample Groups	1 ~ 3 pieces
Sample Thickness	10 ~ 100mm
Sample Size	≤230×230×100mm (square body)
Power Supply	380V, 8KW
Test Accuracy	Better than 3%
Test Temperature	Up to 1350°C (customizable)

The system supports computer connectivity for automated testing, data processing, and print output.

DRS-III High Temperature Thermal Conductivity Tester

Manufacturer Information

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
