FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester

FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester
FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester

Large Image :  FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Model Number: FBS-900
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester

Description
Q Value Range: 5~999 Q Value Grading: 30, 100, 300, 999, Automatic Shift
Frequency Range: 10kHz~52MHz Inherent Error: ≤5%±2% (10kHz~10MHz), ≤7%±2% (10MHz~52MHz)
Working Error: ≤7%±2% (10kHz~10MHz), ≤10%±2% (10MHz~52MHz) Capacitance Range: 1~460pF
Capacitor Adjustment: 40~500pF Capacitance Accuracy: ±1.5pF (<150pF), ±1% (>150pF)
Fine-tuning Capacity: -3pF ~ 0 ~ +3pF Fine-tuning Accuracy: ±0.2pF
Oscillation Frequency: 10kHz~100MHz Frequency Error: 2×10⁻⁴±1
Power Supply: 220V, 50Hz Power Consumption: 25W
Net Weight: 7 Kg Dimensions: 380×132×280 Mm
Highlight:

dielectric constant tester with warranty

,

dielectric loss factor tester thermal

,

thermal conductivity tester analyzer

FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester

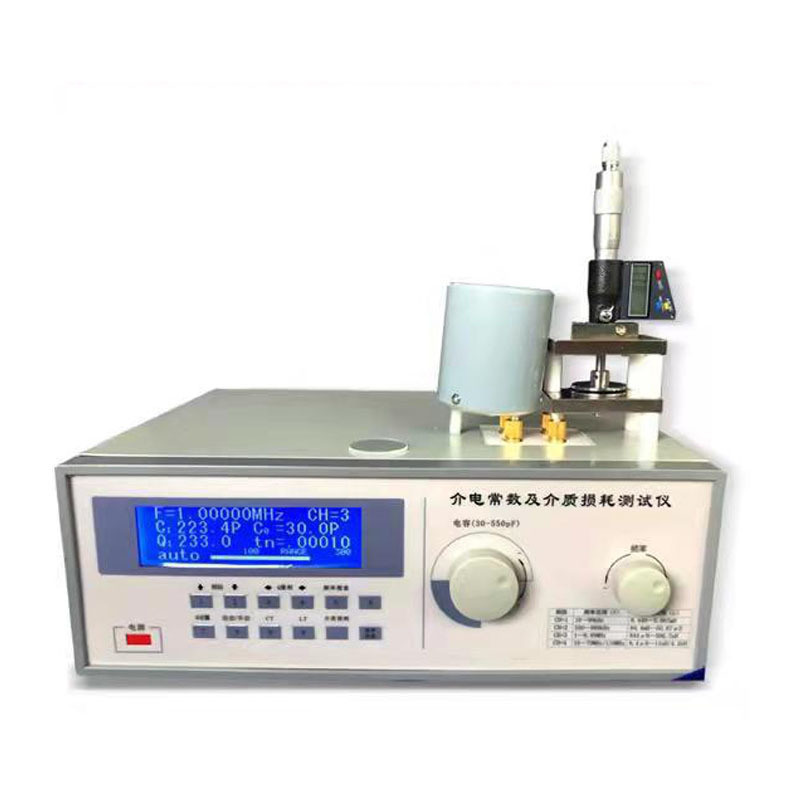

The FBS-900 tester measures the dielectric constant and dielectric loss coefficient (loss angle tangent value) of insulating materials. These properties are crucial physical characteristics for various nonmetallic oxides, plates, ceramics, mica, glass, plastics, and other materials. The instrument helps researchers understand factors affecting dielectric properties and provides data for material improvement.
Ideal for research institutes, universities, and industrial facilities studying new inorganic materials.
Product Parameters
Q Value Measurement
  • Measurement range: 5~999
  • Range grading: 30, 100, 300, 999 (automatic shift)
  • Nominal error:
    • 10kHz~10MHz: Inherent error ≤5%±2% full value; Working error ≤7%±2% full value
    • 10MHz~52MHz: Inherent error ≤7%±2% full value; Working error ≤10%±2% full value
Capacitance Measurement
  • Measurement range: 1~460pF
  • Adjustment range: 40~500pF (main capacitor)
  • Accuracy: ±1.5pF (below 150pF); ±1% (above 150pF)
  • Fine-tuning capacity: -3pF ~ 0 ~ +3pF (±0.2pF accuracy)
Oscillation Frequency
  • Range: 10kHz~100MHz
  • Grading: 10~99kHz, 100~999kHz, 1.0~9.99MHz, 10~52MHz
  • Frequency error: 2×10-4±1 word
  • Q qualified indication preset: 5~999
Operating Conditions
  • Temperature: 0ºC~+40ºC
  • Humidity: <80% RH
  • Power supply: 220V, 50Hz
Sample Specifications
Wafer Shape Dimensions
Thickness 2±0.5mm Φ30~40mm (ε<12)
Φ25~35mm (ε=12~30)
Φ15~20mm (ε>30)
Physical Specifications
  • Power consumption: ~25W
  • Net weight: ~7kg
  • Dimensions: 380×132×280mm (L×W×H)
Unique Technologies
  • Automatic deduction of residual inductance and test lead inductance for improved accuracy
  • Direct measurement and display of large capacitance values
  • Digital micro-measuring device with direct reading value
Standard Configuration
  • Host computer
  • Test fixtures and inductor set
  • Power cord
  • Two fuses
FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester 0
FBS-900 Dielectric Constant and Dielectric Loss Factor Tester
FBS-900 Dielectric Constant and Dielectric Loss Factor Tester Thermal Conductivity Tester 1
FBS-900 Thermal Conductivity Tester
