DRPL-V-G High Temperature Material Thermal Conductivity Meter,cold Surface Temperature Comprehensive Tester ASTMC518

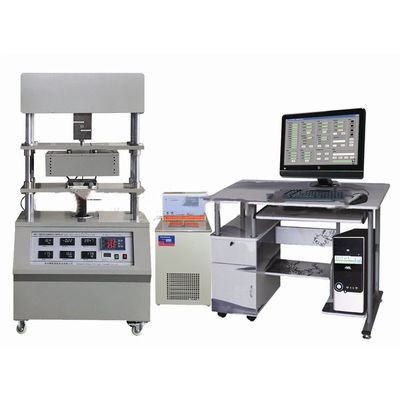

Large Image : DRPL-V-G High Temperature Material Thermal Conductivity Meter,cold Surface Temperature Comprehensive Tester ASTMC518

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	lonroy
Model Number:	DRPL-V-G

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

DRPL-V-G High Temperature Material Thermal Conductivity Meter,cold Surface Temperature Comprehensive Tester ASTMC518

Description

Power Supply:	220V, 3KW	Experimental Method:	Mixed Method
Specific Heat Capacity:	0.05-5(kj/kg*k)	Test Accuracy Solid:	≤1%±0.002
Test Accuracy Powder:	≤2%±0.002	Temperature Range:	100-800 ºC
Calorimetric Resolution:	0.001ºC	Measurement Control Mode:	Intelligent PID Adjustment
Heat Capacity:	1000J/K	Sample Size Solid:	(φ11-φ14) × (20-40) Mm
Sample Size Powder:	6 Cm3	Heating Method:	Resistance Wire Heating
High Temperature Range:	200-1350 ºC	High Temp Heat Capacity:	1500J/K
Protection Gas:	Argon
Highlight:	high temperature thermal conductivity meter , cold surface temperature tester , thermal analyzer with warranty

DRPL-V-G High Temperature Material Thermal Conductivity Meter, Cold Surface Temperature Comprehensive Tester ASTMC518

Product Introduction

This advanced thermal conductivity tester utilizes the internationally recognized heat flow meter method for precise detection of thermal conductivity and thermal resistance. Equipped with computer automation, it generates comprehensive test reports with high accuracy and reliability.

Key features include:

Stable hot surface temperature application with heat transfer measurement to cold surface
High precision measurement (0.1mw accuracy) especially suitable for low thermal conductivity materials
Modular design with multifunctional testing capabilities
Servo motor loading for constant pressure application during tests
Comprehensive thermal physical property analysis through thermal conductivity and back temperature measurement
Wide application across plastics, rubber, refractory materials, insulation materials, aerogel boards, and composite materials

Reference Standards

Complies with GB/T10295-2008 (heat flow meter method for insulation materials) and ASTMC518-04 (heat flow meter method for steady-state heat flux measurement).

Technical Specifications

Parameter	Specification
Specific heat capacity range	0.05-5 (kj/kg*k)
Test accuracy	Solid ≤1%±0.002 Powder ≤2%±0.002
Temperature range	100-800ºC (resistance wire heating) 200-1350ºC (silicon carbon tube heating)
Calorimetric resolution	0.001ºC
Experimental method	Mixed method
Power supply	220V/50Hz, 3KW
Measurement and control	Intelligent PID adjustment with computer automation

Sample Requirements

Solid samples: (φ11-φ14) × (20-40) mm
Powder samples: approximately 6 cm³

Standard Configuration

Includes one host unit, software package, communication interface and data cable, high-precision constant temperature sink, and desktop computer (as per contract specifications).
