BRR-II Geotechnical Specific Heat Capacity Tester Thermal Conductometer

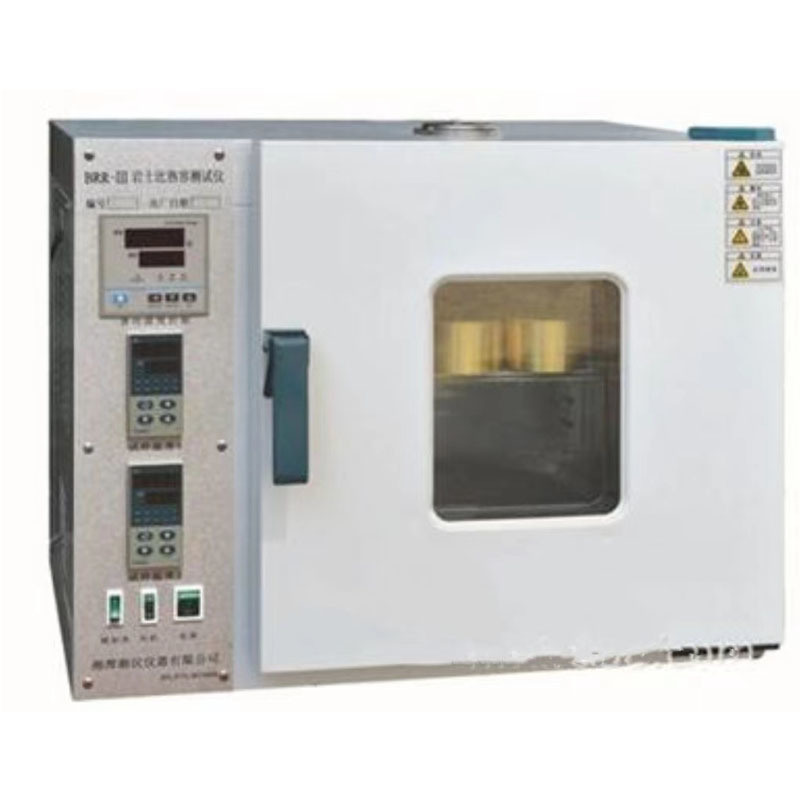

Large Image : BRR-II Geotechnical Specific Heat Capacity Tester Thermal Conductometer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	lonroy
Model Number:	BRR-II

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

BRR-II Geotechnical Specific Heat Capacity Tester Thermal Conductometer

Description

Power Supply:	220V, 50HZ	Accuracy:	2%
Measurement Range:	0.1 ~ 5kJ/(kg•ºC)	Thermostat Type:	High Precision
Sample Cylinder Material:	Brass	Sample Cylinder Quantity:	1-4
Insulation Barrel Quantity:	1-4	Thermocouple Quantity:	1-4
Temperature Meter:	High Precision	Weighing Equipment:	Own
Sample Form:	Uniform Small Particles	Test Method:	Cooling Method
Data Processing:	Software Analysis	Sample Chamber:	Covered
Temperature Measurement:	Thermocouple
Highlight:	geotechnical heat capacity tester , thermal conductometer analyzer , specific heat capacity tester

BRR-II Geotechnical Specific Heat Capacity Tester Thermal Conductometer

Product Description

The rock and soil specific heat capacity measuring device uses the cooling method to measure the specific heat capacity of rock, soil, and other solid materials as well as liquid materials. The design considers the heterogeneous characteristics of rock and soil, ensuring representative sampling. A thermocouple inserted in the sample center accurately measures the heat transfer process, while comparison with water temperature thermocouple values determines the temperature equilibrium state after heat transfer.

The device features high-precision temperature measurement thermocouples and thermometer meters for accurate measurements. It includes specialized calculation software for generating test reports. The BRR-II model tests one sample, while the BRR-III model can test four samples simultaneously.

Product Parameters

Measurement Range	0.1 ~ 5kJ/(kg•ºC)
Accuracy	2%

Instrument Components

High precision thermostat
Brass sample cylinder (1-4) shaped like a measuring cylinder
Insulation barrel (1-4) with temperature measurement thermocouple
Plug-in thermocouple (1-4)
High precision temperature meter
Weighing equipment (not included)

Operating Steps

Sample Preparation: Prepare geotechnical samples into uniform small particles, cleaned to remove impurities affecting test results.
Instrument Preparation: Place tester on stable bench with power and connections ready.
Sample Loading: Pour prepared samples into chamber and secure cover.
Temperature/Pressure Setting: Configure required parameters via control panel or FlowCalorimetric software.
Measurement: Start tester to record temperature changes and heat flow data.
Data Processing: Import data to computer for analysis and generation of thermal parameter charts.

Note: Maintain stable lab conditions and calibrate data properly for accurate results. Control environmental factors to prevent interference.
