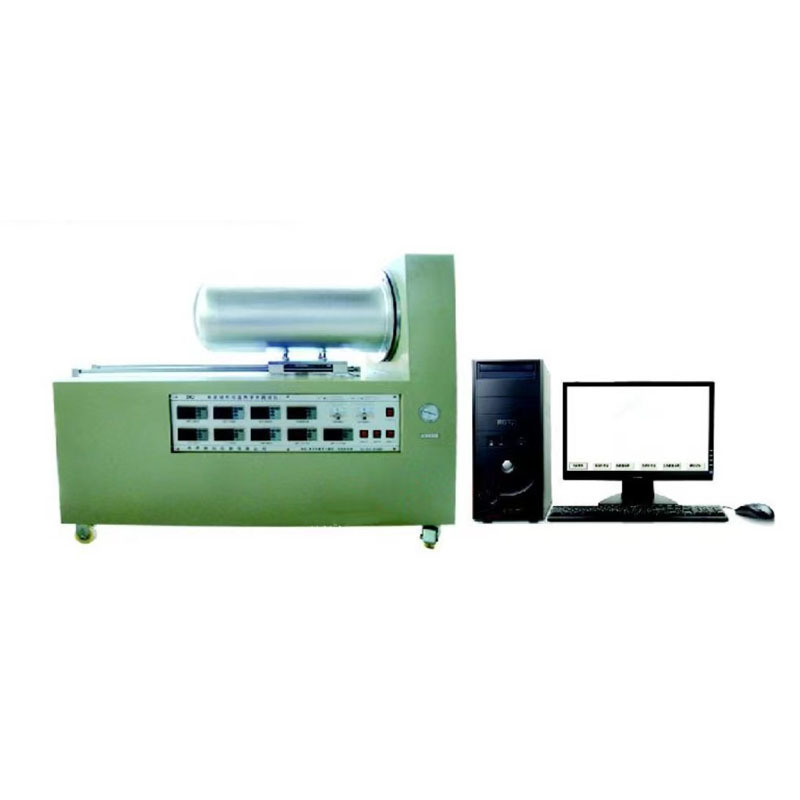

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

Large Image : DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	lonroy

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

Description

Accuracy:	Better Than 3%	Power Supply:	220V, 50HZ
Thermal Conductivity Range:	1.0 ~ 500W/m.K	Rod Sample Size:	3 ~ 5×220(mm)
Filament Sample Size:	1 ~ 3×20-45(mm)	Max Temperature:	1350ºC
Heating Power Adjustment:	±1%	Voltage:	220 V
Protection Class:	Ip56	Temperature Range:	80 ~ 1000ºC
Vacuum Capability:	Yes	Protective Atmosphere:	Yes
Computer Control:	Yes	Automatic Temperature Control:	Yes
Data Output:	Printing
Highlight:	metal thermal conductivity tester , high temperature thermal resistance tester , thermal analyzer with warranty

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

Product Description

The DRJ-II Metal High Temperature Thermal Conductivity Test Machine uses the direct current longitudinal heat flow method to measure thermal conductivity of metals within a temperature range of 80-1000ºC. This computer-automated system meets testing requirements for metal material thermal conductivity in research and material testing applications.

Key Features

Complies with GB/T3651-2008 "Metal high temperature thermal conductivity measurement method"
Also suitable for GB8722-2008 "Graphite material medium temperature thermal conductivity determination method"
Computer-automated testing with automatic temperature control
Data printing output capability

Technical Specifications

Parameter	Specification
Thermal conductivity test range	1.0 ~ 500W/m.K
Accuracy	Better than 3%
Power supply	220V, 50HZ
Sample size requirements	Rod sample: 3 ~ 5×220(mm) Filament sample: 1 ~ 3×20-45(mm)
Maximum furnace temperature	1350ºC
Heating power adjustment	±1%
Atmosphere control	Vacuum and protective atmosphere capability

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester 0

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester 1
