Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater

Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater
Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater

Large Image :  Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater

Description
Voltage: 110~220V Frequency: 50/60Hz
Power Consumption: 48W (standby), 2000W (heating) Protection Class: IP56
Machine Dimensions: 800 × 380 × 410 Mm Machine Weight: 44 Kg
Coating Speed: 1-3 Meters/minute Coating Length: 10-450 Mm
Temperature Range: Room Temperature To 160℃ Coating Uniformity: ±4 Microns
Coating Width: 300 × 450 Mm Coating Thickness: 0.005-5 Mm (wet Film)
Line Rod Dimensions: Diameter 10 × Length 400 Mm Workbench Material: Aluminum Alloy + Glass
Knife Material: Alloy Stainless Steel
Highlight:

compact lab coating machine

,

laboratory scale mini coater

,

small coating test equipment

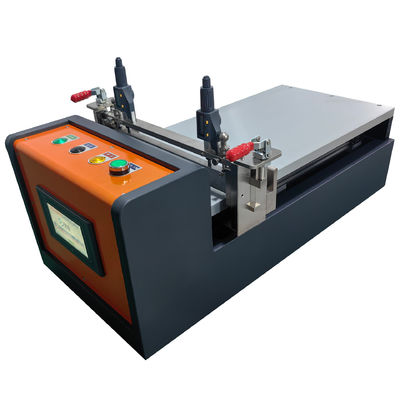

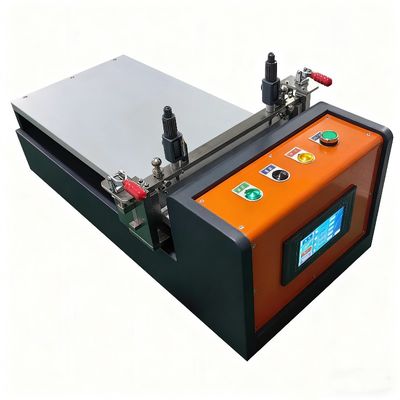

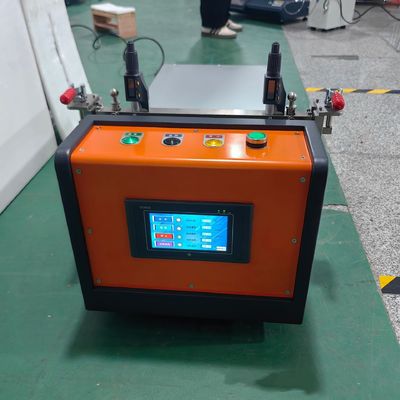

Laboratory Small Coating Machine - Compact Lab Coating Test Equipment
This laboratory-scale mini coater uses high-quality components to deliver precise coating results for research and testing applications. Designed for use with various materials including paper, plastic, metal, PVC, PET, fabric, and aluminum alloy plates.
Key Advantages
  • Produces smooth, flat, flawless test samples with repeatable consistency
  • Eliminates human error through precise speed and pressure control
  • Special scraper design mimics production coating machine performance
  • 90° opening coating head facilitates easy cleaning between experiments
  • Ensures coating uniformity and stability across different substrates
Technical Specifications
Control System Independently developed by Lonroy / PLC touch screen
Coating Method Integrated knife/line rod (separate for individual coating)
Knife Elevator Rear flip type (convenient for cleaning)
Coating Speed Digitally set, 1-3 meters/minute
Length Setting Digitally set, 10-450 mm
Temperature Control Room temperature to 160℃ (constant temperature achievable)
Leveling Device Equipped with leveling rods; material is flattened first before coating
Workbench Material Aluminum alloy + glass (removable)
Clamping Tools Automatic clamping tools
Coating Uniformity ±4 microns (depending on the material's flatness)
Width 300×450 mm
Coating Thickness 0.005-5 mm (wet film)
Machine Volume Length 800 × Width 380 × Height 410 mm (for reference)
Machine Weight Net weight: 44 kg (for reference)
Line Rod Device Comes with a line rod device (line rods optional; one line rod per thickness)
Line Rod Weights With two adjustable counterweights
Line Rod Dimensions Diameter 10 × Length 400 mm (universal)
Knife Material Alloy stainless steel
Power Source Voltage: 110~220V, 50/60Hz
Power 48W (standby), 2000W (heating)
Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater 0
Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater 1
Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater 2
Laboratory Small Coating Machine Compact Lab Coating Test Equipment Laboratory Scale Mini Coater 3
